Application:

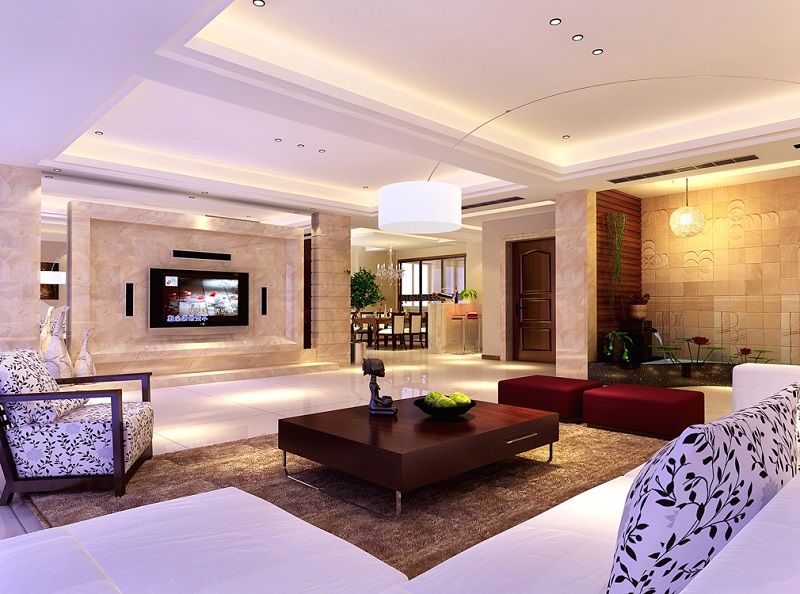

It is applicable for hotel, shopping mall, household and other reflecting groove lighting.
Product Features：
◆ High-efficient Energy Saving

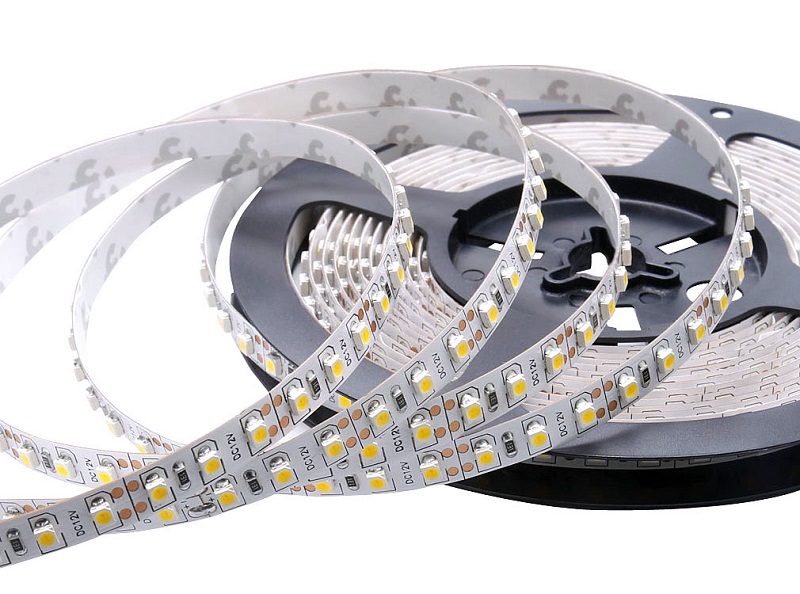

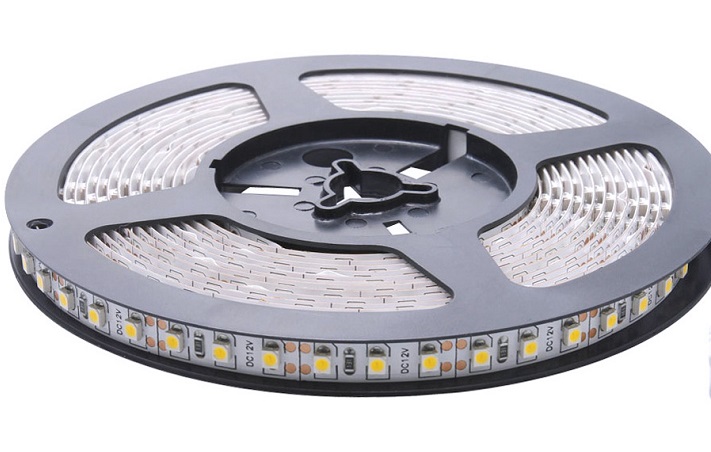

◆ Using 3528 SMD LED
◆ Adopted 12V DC Safe Voltage
◆ IP Grade: IP20
◆ Using double-layer PCB
Parameters:
| Item No. |
LED |
LED Qty |
Color |
Voltage(V) |
Current(A) |
Power(W) |
CCT(K) |
Lumen(lm) |
Dimension |
|
| TS-3528-60 |
3528 |
60 LED/M |
White |
DC12V |
2 |
24W/Roll |
5700-6300 |
7 lm/led |
5000*8mm |
| TS-3528-120 |
3528 |
120 LED/M |
White |
DC12V |
4 |
48W/Roll |
5700-6300 |
7 lm/led |
5000*8mm |
Remark:
1. Testing Ambient Temperature: Ta=25±2℃
2. Due to The above data are typical value; which is maybe different from the practical parameters of product. Do not correspond necessarily to the actual parameters if the data changed.
|
