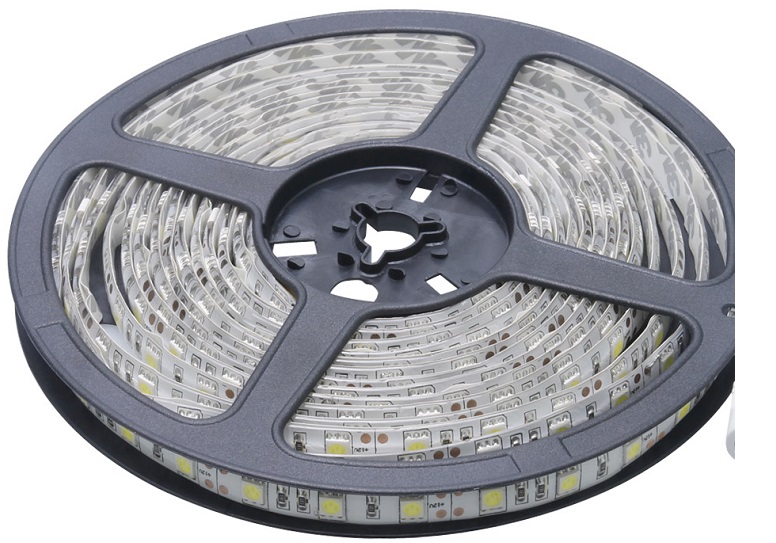

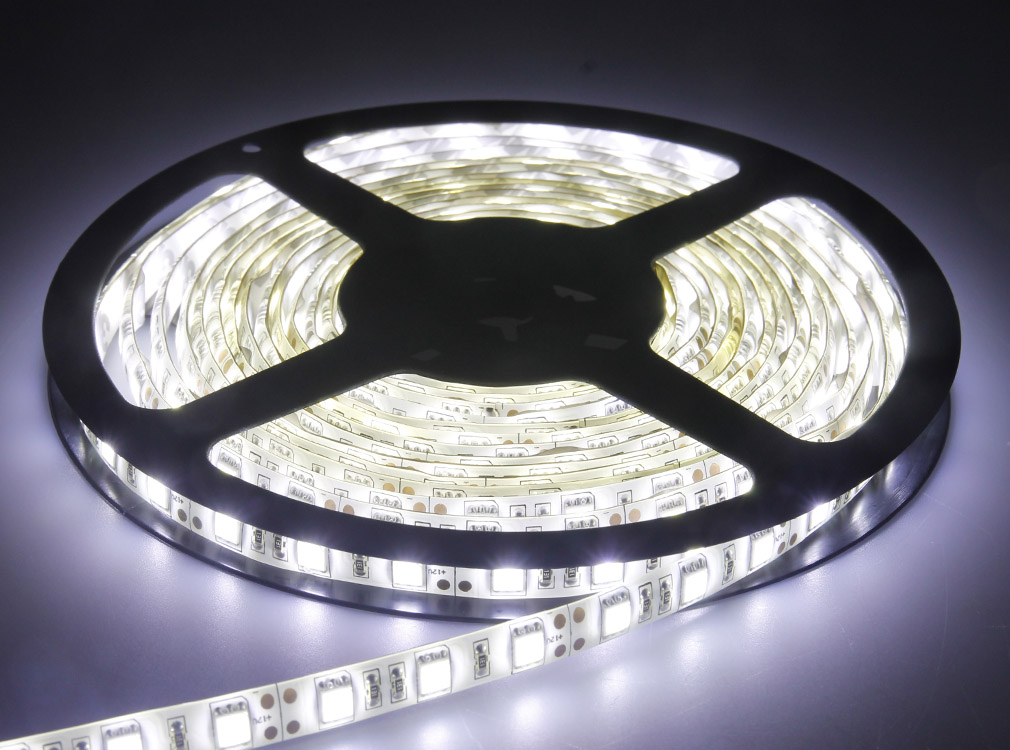

SMD5050 Flexible LED Strip

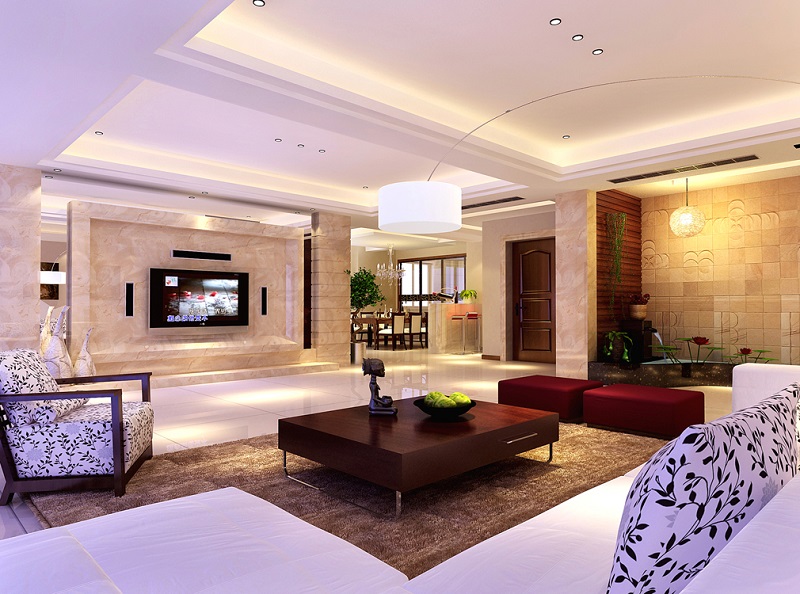

Application: It is applicable for hotel, shopping mall, household and other reflecting groove lighting.
Product Features: ◆ High-efficient Energy Saving ◆ Using 5050 SMD LED ◆ Adopted 12V DC/ 24VDC Safe Voltage ◆ IP Grade: IP20, with 3M Tape on back ◆ Adopted Constant Voltage Technology
Parameters:
Item No. |
LED |
LED Qty |
Corlor |
Voltage (V) |
Current (A) |
Power (W) |
CCT(K) |
Lumen (lm) |
Dimension |
TS-5050-30 |
5050 |
30 LED/M |
White |
DC12V |
3 |
36W/Roll |
6000K |
20lm/led |
5000*10*3mm |
TS-5050-60 |
5050 |
60 LED/M |
White |
DC12V |
6 |
72W/Roll |
6000K |
20lm/led |
5000*10*3mm |
TS-5050-60-RGB |
5050RGB |
60 LED/M |
RGB |
DC12V |
6 |
72W/Rill |
RGB |
- |
5000*10*3mm |
TS-5050-120 |
5050 |
120 LED/M |
White |
DC24V |
6 |
144W/Roll |
6000K |
20lm/led |
5000*20*3mm |
Remark: 1. Testing Ambient Temperature: Ta=25±2℃ 2. Due to The above data is typical value; which is maybe different from the practical parameters of product. Do not correspond necessarily to the actual parameters if the data changed.
|
