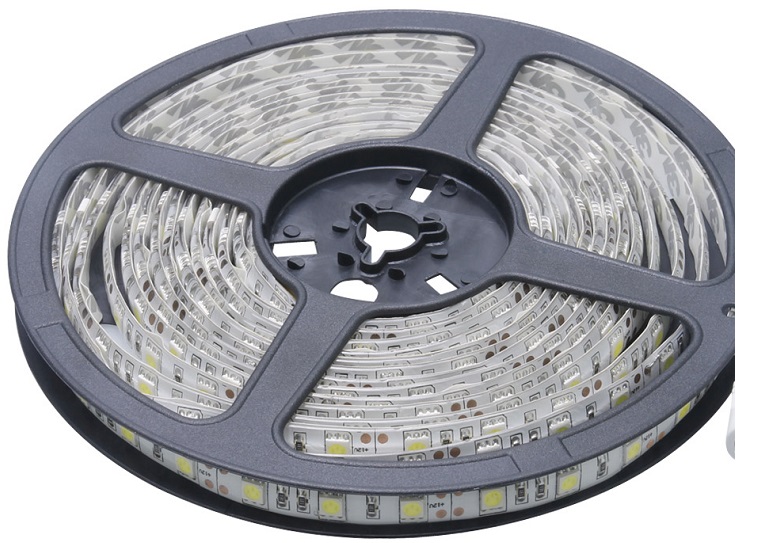

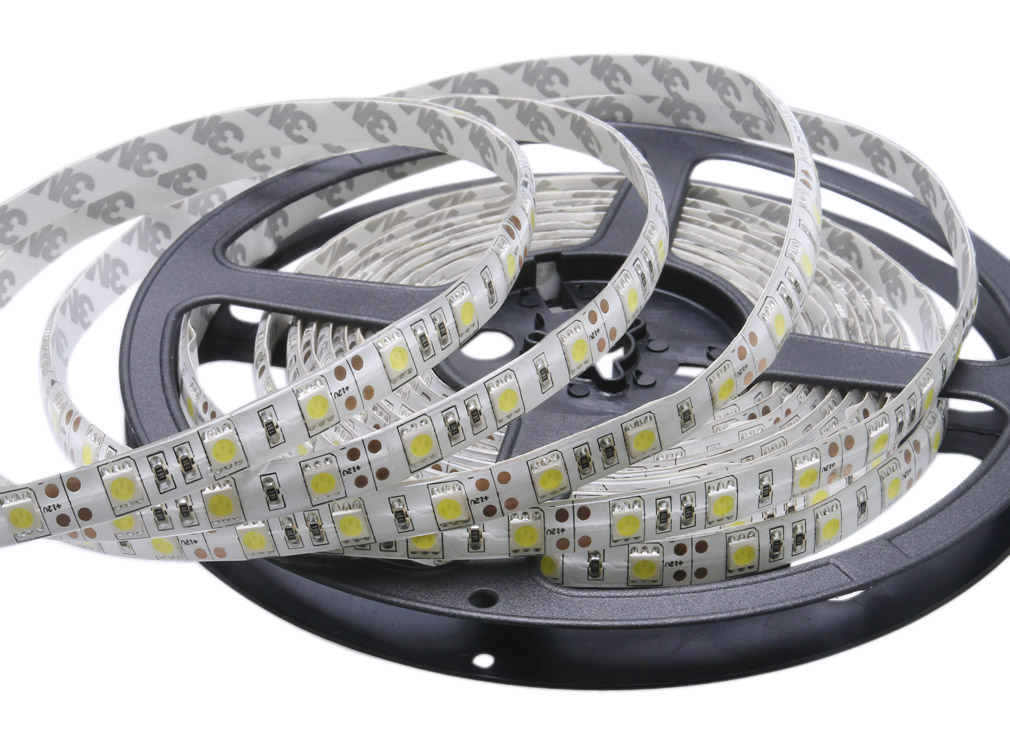

SMD5050 Flexible LED Strip
Application:
It is applicable for hotel, shopping mall, household and other reflecting groove lighting.
Product Features：
◆ High-efficient Energy Saving
◆ Using 5050 SMD LED, double-layer PCB
◆ Adopted 12V DC/ 24VDC Safe Voltage
◆ IP Grade: IP20, with 3M tape on back
◆ Adopted Constant Voltage Technology
Parameters:
| Item No. |
LED |
LED Qty |
Corlor |
Voltage
(V) |
Current
(A) |
Power
(W) |
CCT(K) |
Lumen
(lm) |
Dimension |
|
| TS-5050-30 |
5050 |
30LED/M |
White |
DC12V |
3 |
36 |
6000K |
20lm/led |
5000*10*3mm |
| TS-5050-60 |
5050 |
60LED/M |
White |
DC12V |
6 |
72 |
6000K |
20lm/led |
5000*10*3mm |
| TS-5050-60-RGB |
5050RGB |
60LED/M |
RGB |
DC12V |
6 |
72 |
- |
- |
5000*10*3mm |
| TS-5050-120 |
5050 |
120LED/M |
White |
DC24V |
6 |
144 |
6000K |
20led/led |
5000*20*3mm |
Remark:
1. Testing Ambient Temperature: Ta=25±2℃
2. Due to The above data is typical value; which is maybe different from the practical parameters of product. Do not correspond necessarily to the actual parameters if the data changed.
|
