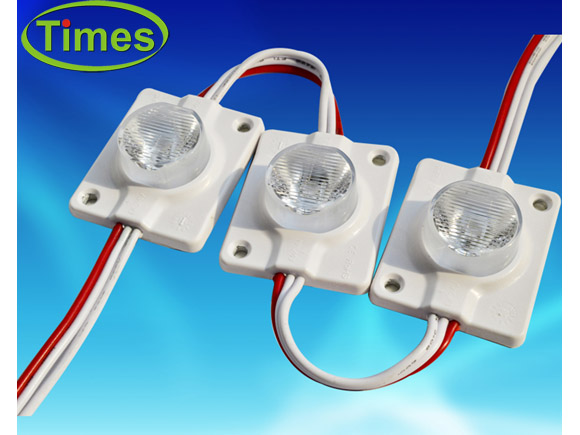

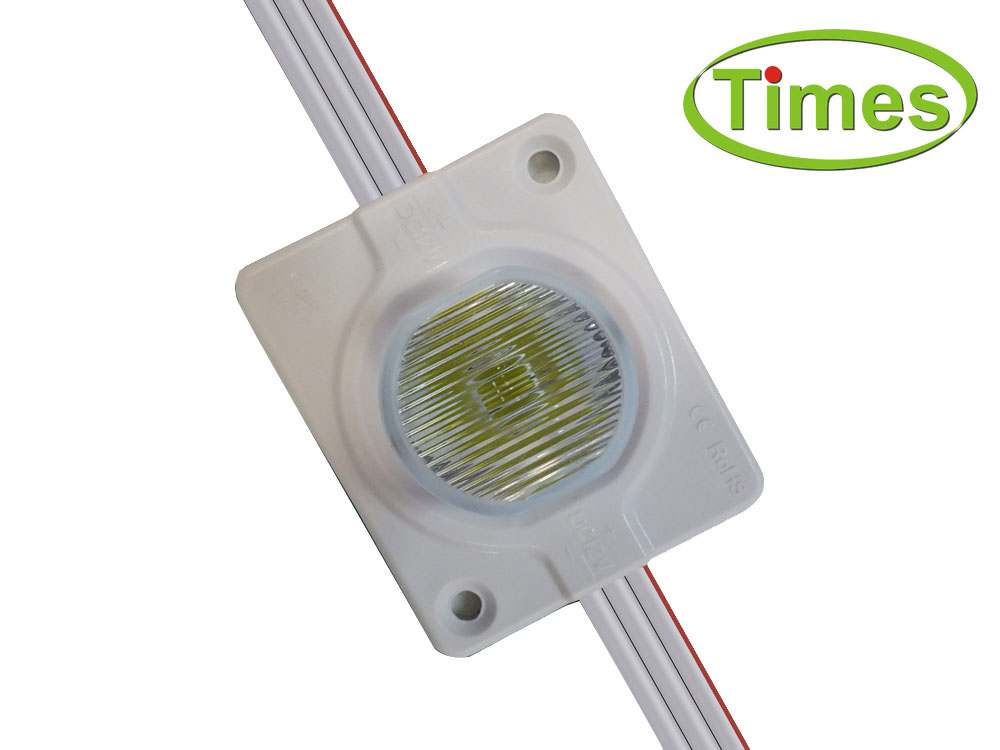

Product Feature:
1. Using High Brightness SMD3535 High Power LED
2. Injection Fireproof ABS Shell
3. DC12V Working Voltage
4. Beam angle 20°*60°,suitable for side-lit use
5. Aluminum PCB inside offering best heat performance
6. Cuttable per 3pcs Modules / 3pcs per group
7. 4 Year Warranty, 50,000 Hours Lifespan as designed
8. IP Rating: IP65, Waterproof, Outdoor Use
9. Easy installation and maintenance free
Description:
Used high light efficiency SMD3535 High Power LEDs, high brightness, large emitting angle, low thermal resistance, and low light decay, high uniformity of the emitting color, using pure thick copper wire and designing by low thermal resistance to ensure the steady current and lower the heat; reasonable circuit design, convenient to install and wiring regulation, life span over 50,000 hours, power supply at constant 12V DC; safety, energy saving and eco-friendly.
Description of product：
|
Operating voltage(V)： |
DC 12V |
Material of shell: |
Aluminum plate Optical Lens ABS |
|
Input current（mA） |
550 mA |
Color of the shell； |
Milky white/Beige Yellow |
|
electric circuit： |
3led/group |
Material of the connecting cables： |
100mm PVC |
|
Power |
2.2 W |
Color of the connecting cables: |
Positive: Red; negative: white |
|
Viewing Angle |
20°*70° |
Cascade quantity（pcs）: |
30pcs (10groups） |
|
Lumen |
165-170 lm/module |
Fix screw |
M3 |
|
Dimension |
43*36*14 mm |
Back Tape: |
3M |
|
LED qty： |
1 pc |
Operating temperature: |
-40~60℃ |
|
Emitting color： |
WW/PW/CW |
Storage temperature： |
-40~80℃ |
|
Ip Grade： |
IP65 |
Warranty: |
4 years |
|
IP Type: |
Optical lens Injection |
Lifespan: |
50,000 Hours |
Parameters of light source：
|
LED Type |
High Power SMD3535 LED |
|
Viewing Angle |
120° |
|
Lifespan |
>50000H |
|
Emitting color |
WW/PU/NW |
|
Forward Voltage |
White：3.0-3.4V |
|
CT/WL of led |
Warm white |
Nature white |
Pure white |
|
2900-3200K |
4000-4500K |
6000-6500K |
|
Luminous flux/
Brightness(powered by 550mA) |
Warm White |
Nature white |
Pure white |
|
160-165LM |
160-168LM |
165-170LM |

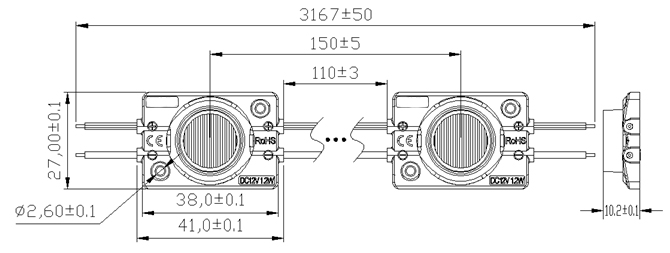

Dimensions: (Unit: mm)
Wiring Diagram:
Remarks of installation and application:
1. Don`t stick the surface of the light by sharp tools.
2. Don`t fix this product by sour glass glue or other soured adhesion; don`t operate or store this product in sour environment or the light will be vulcanized and the lifespan of the product will be reduced.
3. Drive this product by 12V DC switch power supply, and the power should be suitable for the quantity of the led modules; do not connect this product to the utility directly, or the product will be burnt up.
4. The total power of the led modules in series should be lower than 80% of the power of the driver, or the power supply will be burnt up probably, select the suitable thickness of the connecting cable according to the quantity of modules, and the connecting points should be wrapped by electrical tape.
5. The standard cascade quantity of this product is 20pcs for one string. Please note the voltage drop problem when you want to increase the quantity of the module for one string.
Applications:

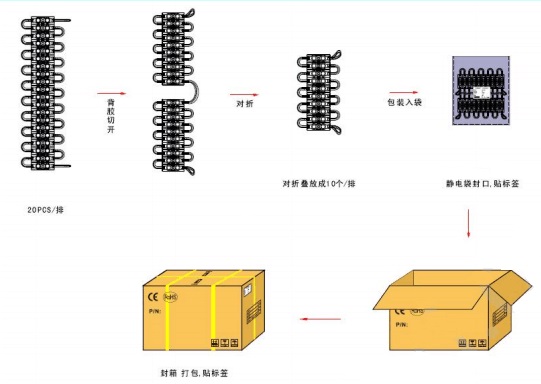

Packaging:
|
