Product Feature:
1. Using High Brightness SMD3535 High Power LED
2. Injection Fireproof ABS Shell
3. DC12V Working Voltage
4. Optical lens create a wide beam angle
5. Aluminum PCB inside offering best heat performance
6. Super-slim, available for slim back-lit channel letter & lighting box
7. 4 Year Warranty, 50,000 Hours Lifespan as designed
8. IP Rating: IP65, Waterproof, Outdoor Use
9. Easy installation and maintenance free
10. Cuttable per 1pc Module
Description:
Used high light efficiency SMD3535 High Power LEDs, high brightness, large emitting angle, low thermal resistance, and low light decay, high uniformity of the emitting color, using pure thick copper wire and designing by low thermal resistance to ensure the steady current and lower the heat; reasonable circuit design, convenient to install and wiring regulation, life span over 50,000 hours, power supply at constant 12V DC; safety, energy saving and eco-friendly.
Description of product：
|
Voltage： |
DC12V |
Color: |
White |
|
Power： |
4W |
weight（20PCS）： |
435g |
|
Lumens： |
275lm |
Cascade Qty（Typ）: |
20PCS |
|
Light efficacy： |
68lm/W |
Fixing Ways: |
Glass Glue or Screw ST2.9x12mm |
|
Beam Angle： |
160° |
Backing tape: |
3M tape |
|
LED Qty： |
1PC |
Working Temp: |
-40~60℃ |
|
IP Rating： |
IP65 |
Storage Temp: |
-40~80℃ |
|
Dimension： |
62*34*12.8mm |
Warranty: |
4 Year/50000H |
Parameters of light source：
|
LED Type |
SMD3535 |
LED Color Temp |
6300-7000K |
7000-8000K |
|
CRI |
＞70 |
LED Brightness |
270-300lm |
270-300lm |

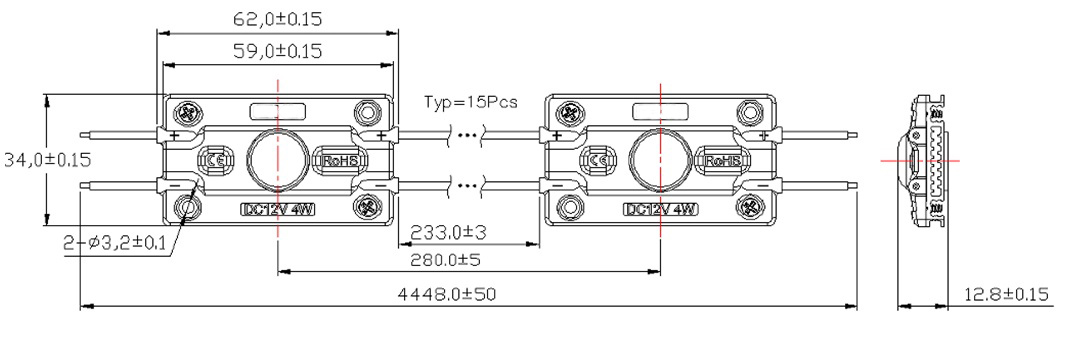

Dimensions: (Unit: mm)

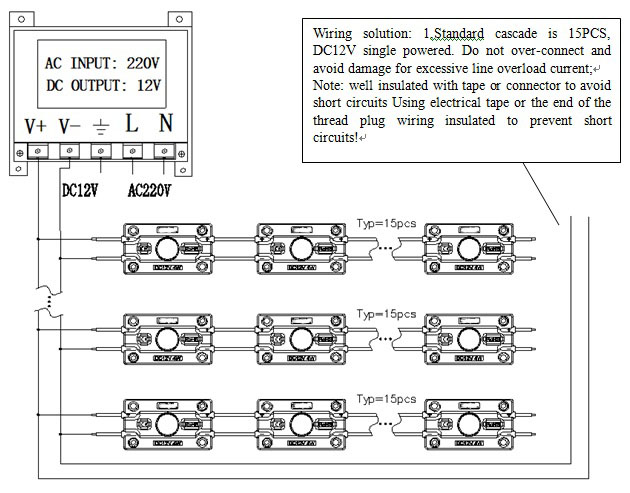

Wiring Diagram:
Remarks of installation and application:
1. Don`t stick the surface of the light by sharp tools.
2. Don`t fix this product by sour glass glue or other soured adhesion; don`t operate or store this product in sour environment or the light will be vulcanized and the lifespan of the product will be reduced.
3. Drive this product by 12V DC switch power supply, and the power should be suitable for the quantity of the led modules; do not connect this product to the utility directly, or the product will be burnt up.
4. The total power of the led modules in series should be lower than 80% of the power of the driver, or the power supply will be burnt up probably, select the suitable thickness of the connecting cable according to the quantity of modules, and the connecting points should be wrapped by electrical tape.
5. The standard cascade quantity of this product is 20pcs for one string. Please note the voltage drop problem when you want to increase the quantity of the module for one string.

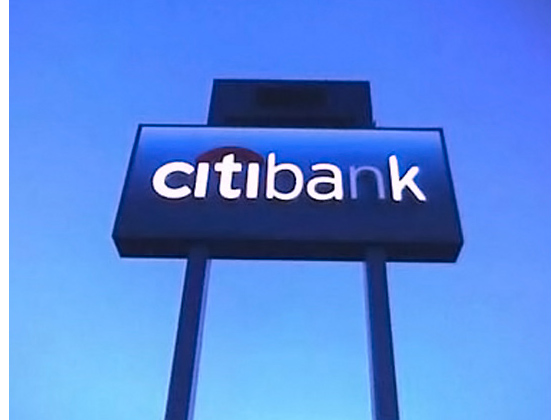

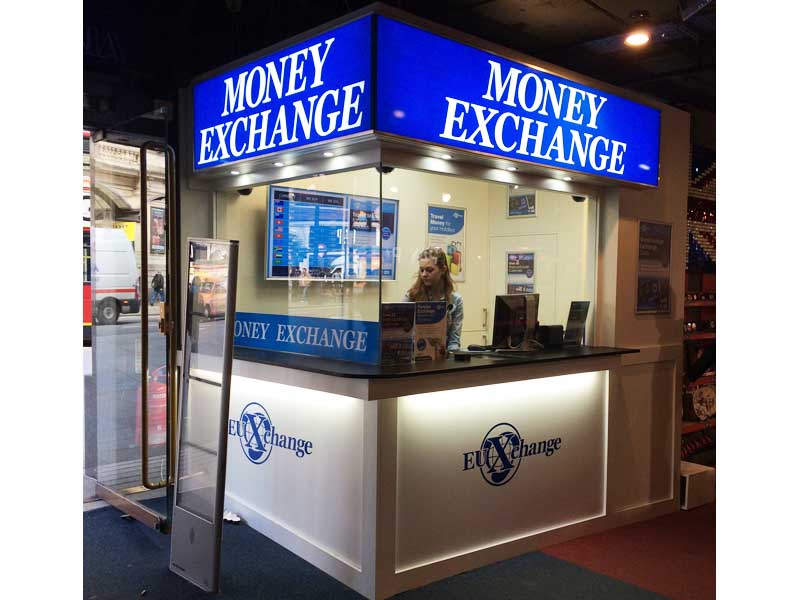

Applications:

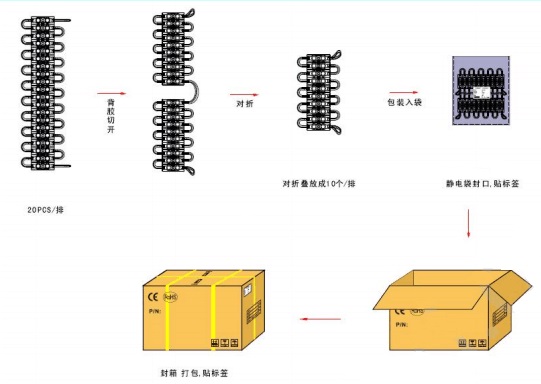

Packaging:
|
