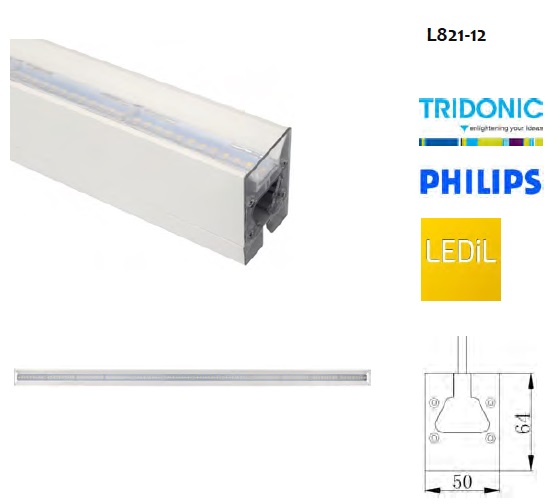

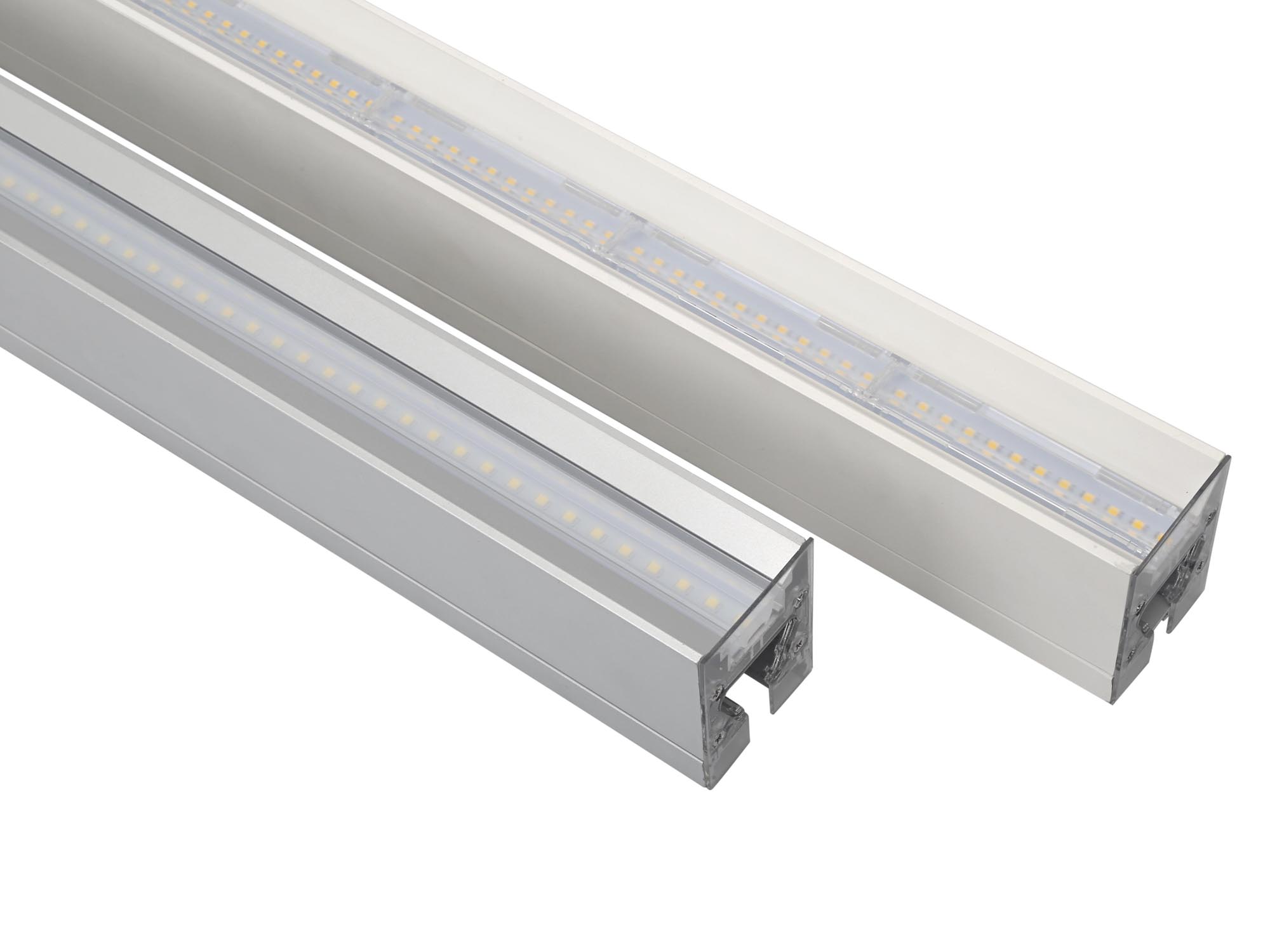

L821 Series LED Linear Light with Optical Lens
(Philips LED + Tridonic Dirver + LEDiL Lens from Finland)
1.Specifications:
|
Item NO. |
L821-12-40W |
|
Light Source |
Philips SMD2835 LED |
|
Driver Brand |
Tridonic Driver |
|
Lens Brand |
World-famous LEDiL Lens from Finland |
|
Input Voltage(V) |
AC220-240V 50-60Hz |
|
Rated Power(W) |
40W |
|
Luminous Flux (lm) |
4800lm |
|
Light Efficiency (lm/w) |
120lm/W |
|
CRI (Ra>) |
80 |
|
Color Temperature (CCT) |
2700-6500K |
|
Working Temperature(℃) |
-20 - +45 |
|
Lifespan (Hour) |
>50,000 |
|
Dimensions(mm) |
L1148xW49.7xH64mm |
|
Fixture Weight |
1.99kgs |
|
Brand Name |
TIMES |
|
Housing Color |
Black & White & Silver |
|
Materials |
Aluminum + PC |
|
Beam Angle |
30x100°/60x100°/90x105°/Asymmetric /Double Asymmetric |
|
Chip Brand |
Original Philips LED |
|
LM80 Tested |
YES |
2.Product Features:
-Private moulding and unique structure design
-Special optical lens design, different beam angles for different applications: 15/30/60/90/asymmetric/double asymmetric
-World famous LEDiL Lens from Finland

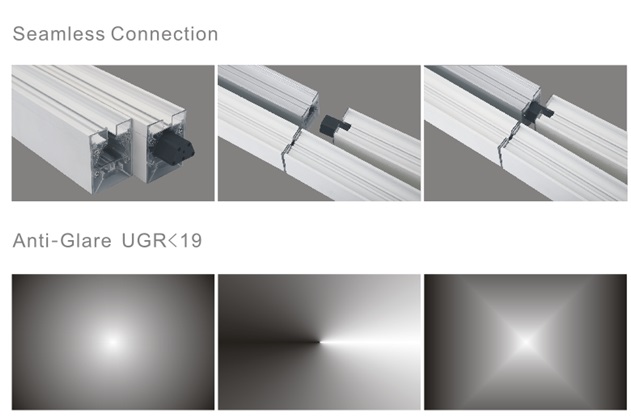

-Seamless connection without any tool, easy connection and installation, save labor costs
-Surface Mounted & Suspending Installation
-Either continuous or discontinuous installation
-High efficiency Philips LED up to 120lm/W
-Non-dimmable/0-10V dimmable/DALI dimmable available
-Anti-glare, UGR<19

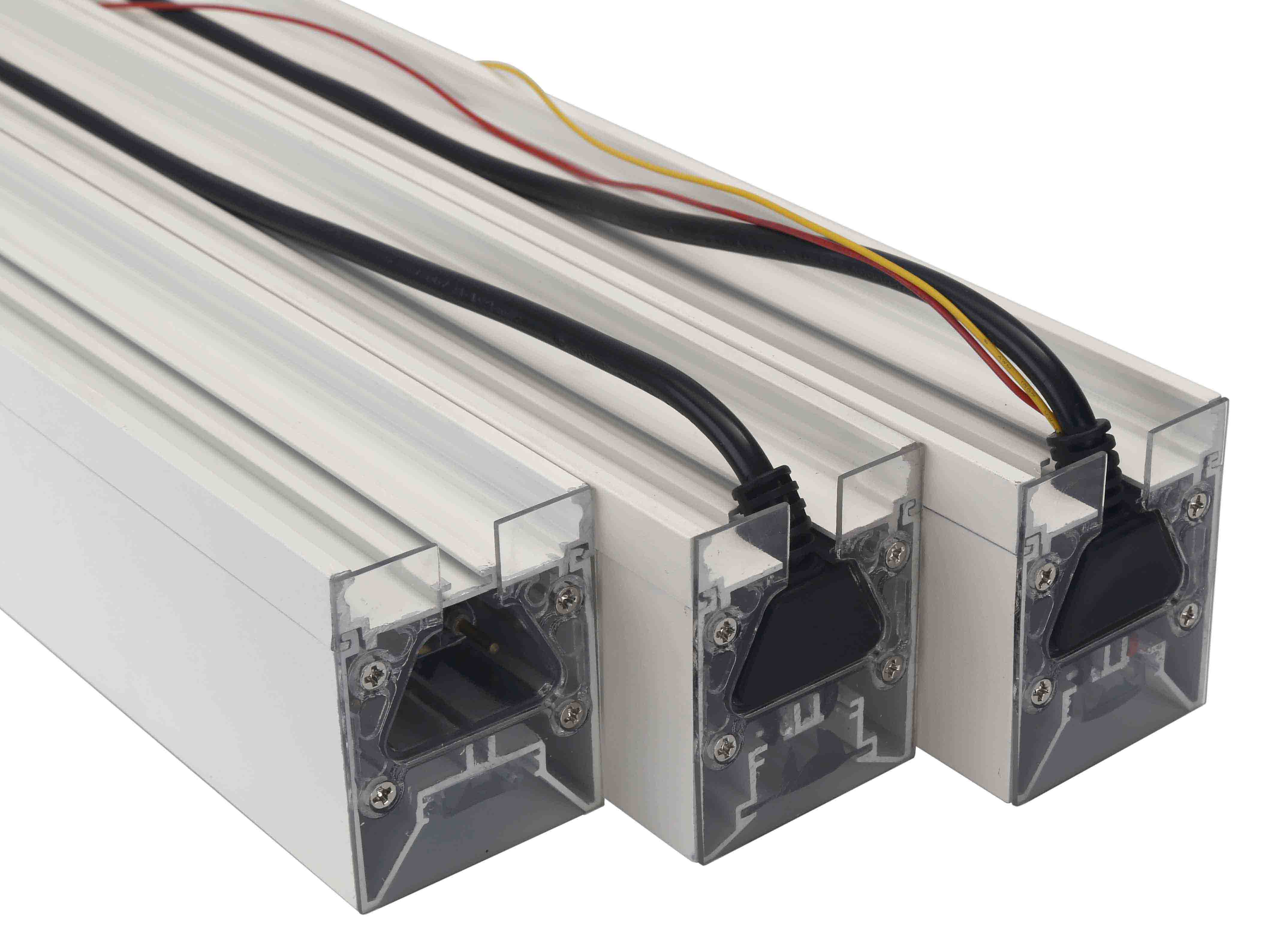

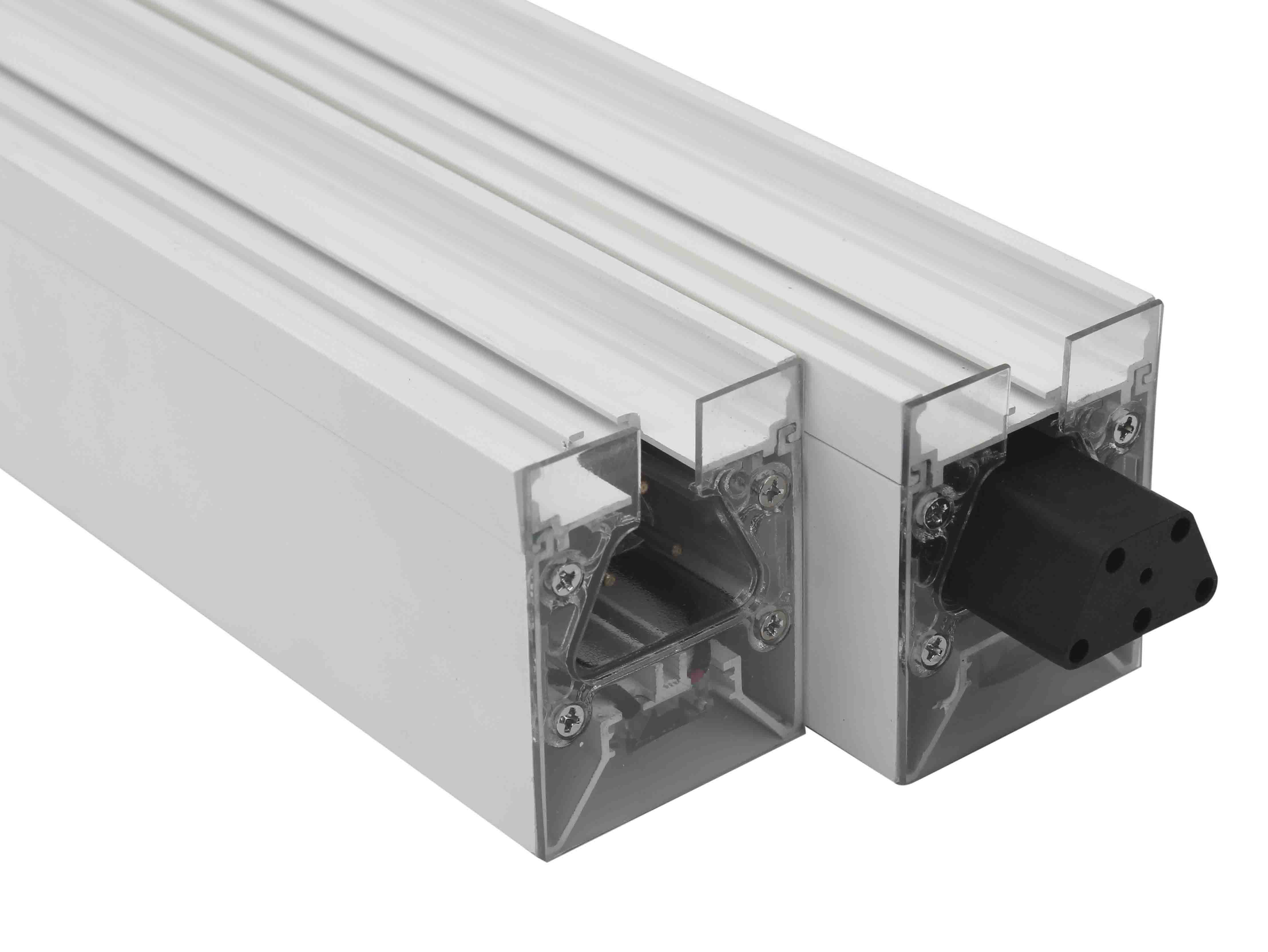

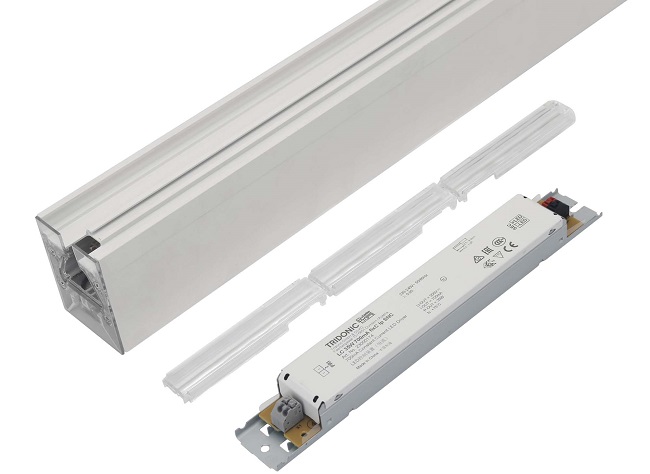

3. Structure:

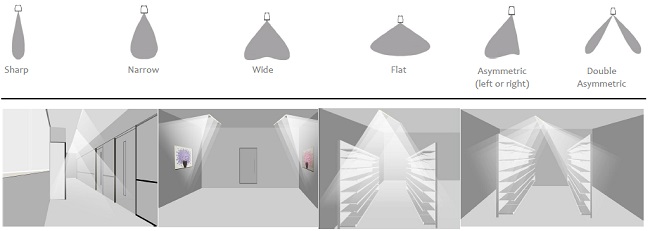

4. Different Lens for Different Light Distribution:

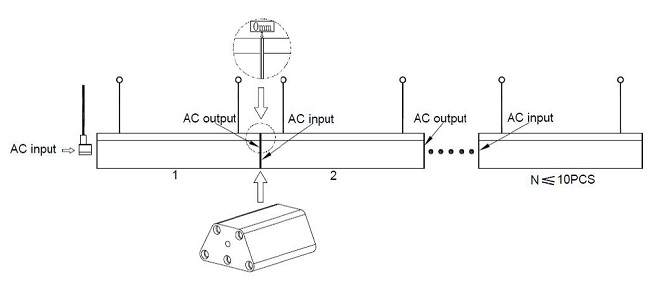

5. Assembly Introduction:

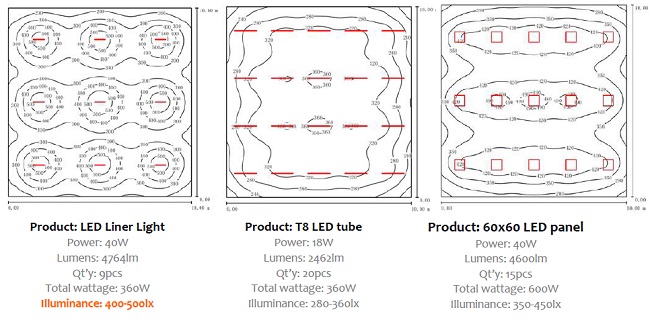

6. Dialux Comparison with LED Tube/Panel

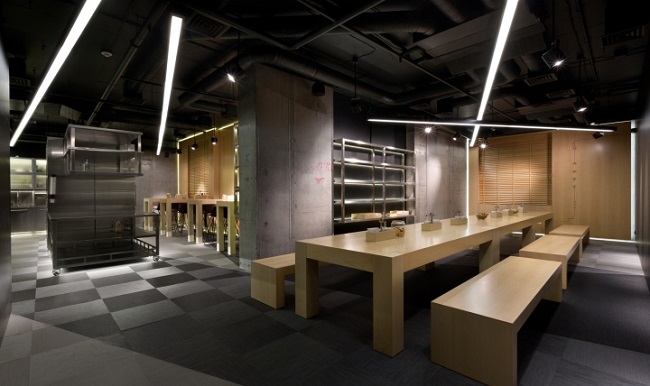

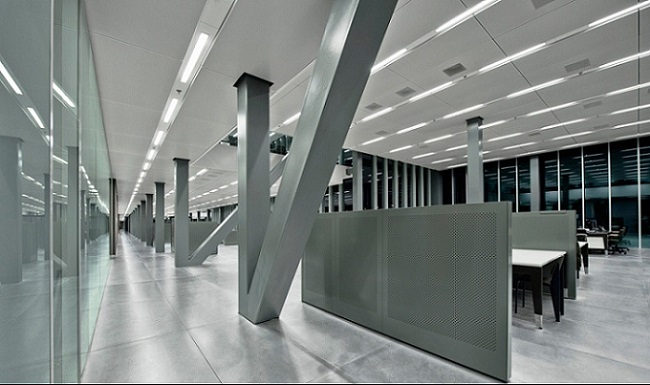

7.Applications:
Suitable for Warehouse, Office, Shopping Mall, Supermarket, Hotel, Storage Racks, Hospital, Library, Workshop, Car Parking Lots, Corridors and so on.
