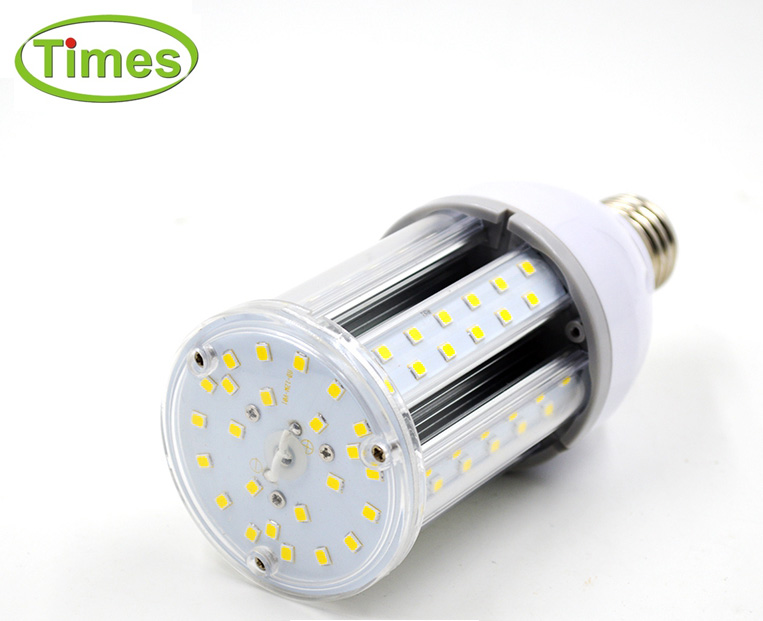

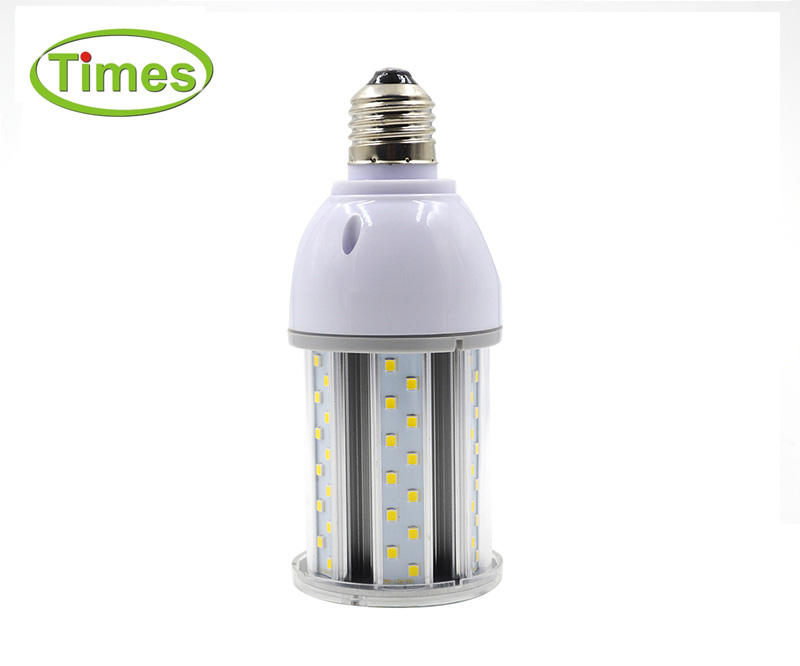

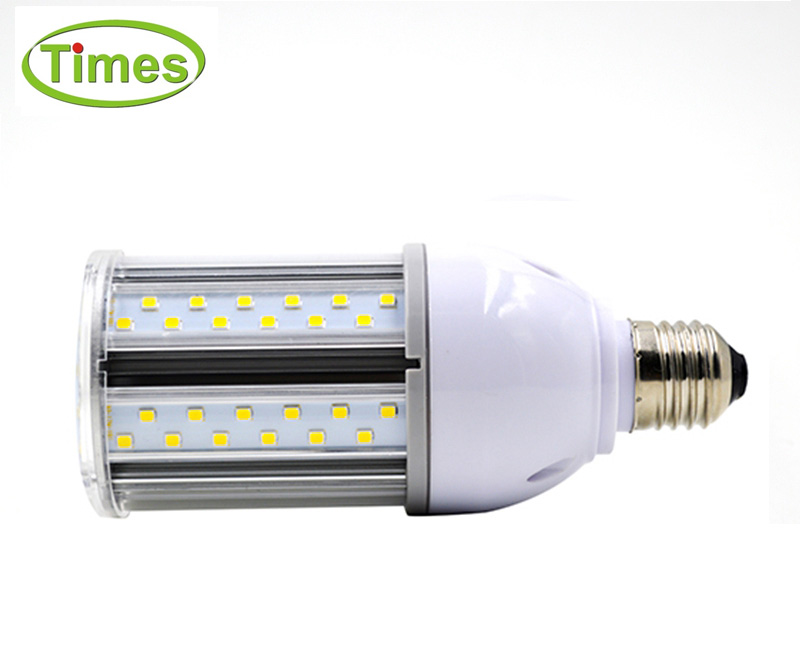

16W IP64 Waterproof LED Corn Light
Model. : TS-CN-16W
Introduction&Application :
Product Name: 16W IP64 Waterproof LED Corn Light 1. SMD2835 LED 2. 1840lm high lumen output 3. Isolated buit-in LED driver 4. High Powre Factor & Low THD 5. Lifespan: >50,000 hours, 5-year warranty...

Large image



16W IP64 Waterproof LED Corn Light

1.Specifications:

Item NO.
TS-CN-16W
Light Source
SMD2835 LED
LED Quantity
112PCS

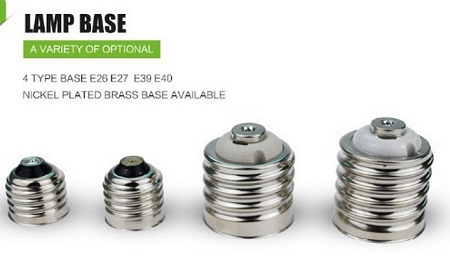

Base Type
E27/E40
Input Voltage(V)
AC85-265V   50-60Hz
Rated Power(W)
16W
Luminous Flux (lm)
1840lm
Light Efficiency (lm/w)
115
CRI (Ra>)
80
Color Temperature (CCT)
2700-6500K
Working Temperature(℃)
-20 - +45
Lifespan (Hour)
50,000
Certifications
CE, EMC, LVD, PSE, RoHS, UL
Power Factor
≥0.95
Brand Name
TIMES
Dimensions (mm)
D64*H167mm
IP Rating
IP64
Capacitor Brand
Rubycon
Chip Brand
Epistar
LM80 Tested
YES

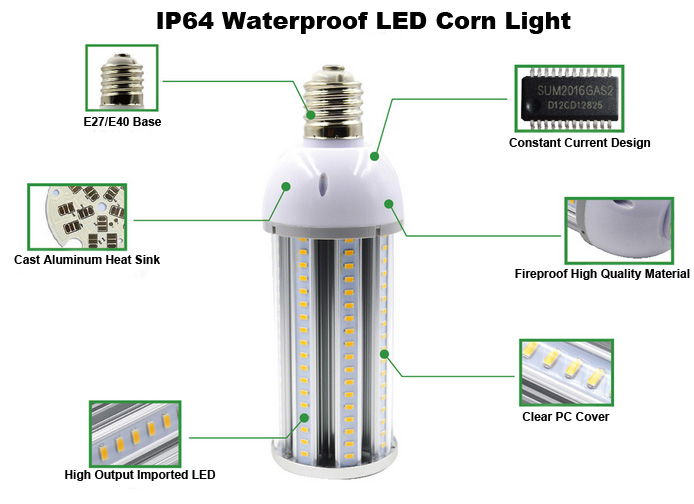

2.Product Features:

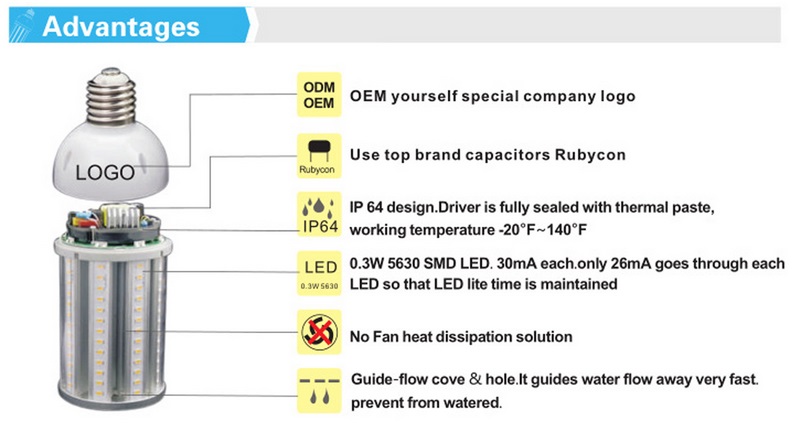

3.Advantages:

1) LED Corn Light with 360 Degree Beam Angle design to make the light radiating uniformly to the ground.
2) Easy replacement, can directly replace the traditional E40 or E27 Base CFL,HPS, HM in IP65 or IP67 fixtures.
3) 80% more energy saving compared with traditional lamps.
4) High CRI with great directionality, CRI>80.
5) Solves 4 difficulties for LED packaging, heat sinking, operational lifespan, luminous efficiency.
6) High Luminous Efficiency, more than 100-130LM/W.
7) 12W-150W version without fan !

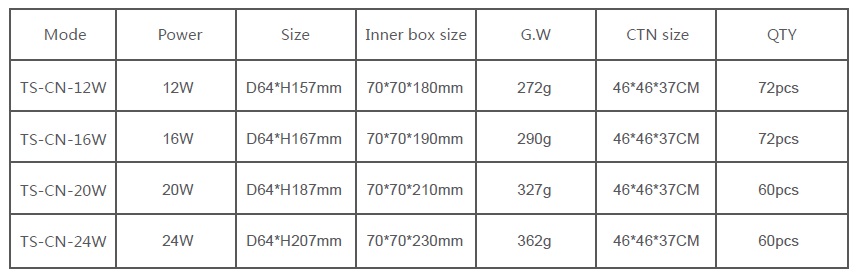

4.Package Details:

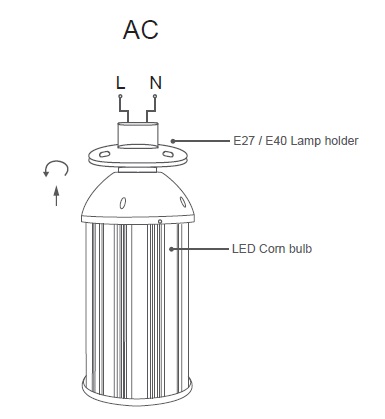

5.Wiring Diagram:

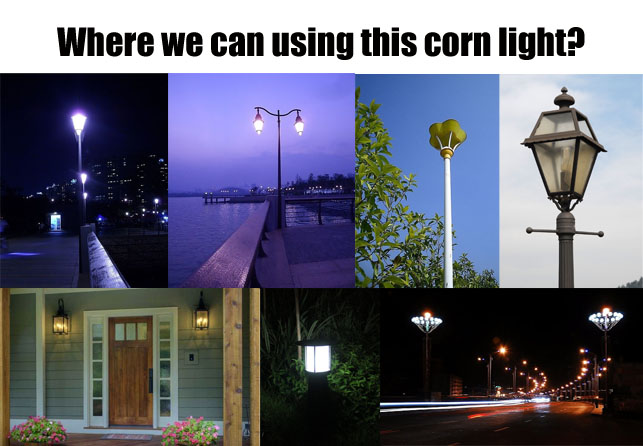

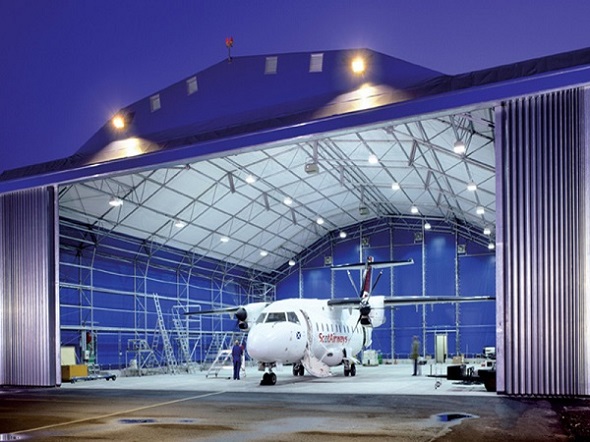

6.Applications:

LED Corn Light is mainly used in  Garden,street, warehouse, shopping mall,wall light. Parking Lot, Courtyard, Square, Park, Airport, Subway, Gymnasium, etc.
