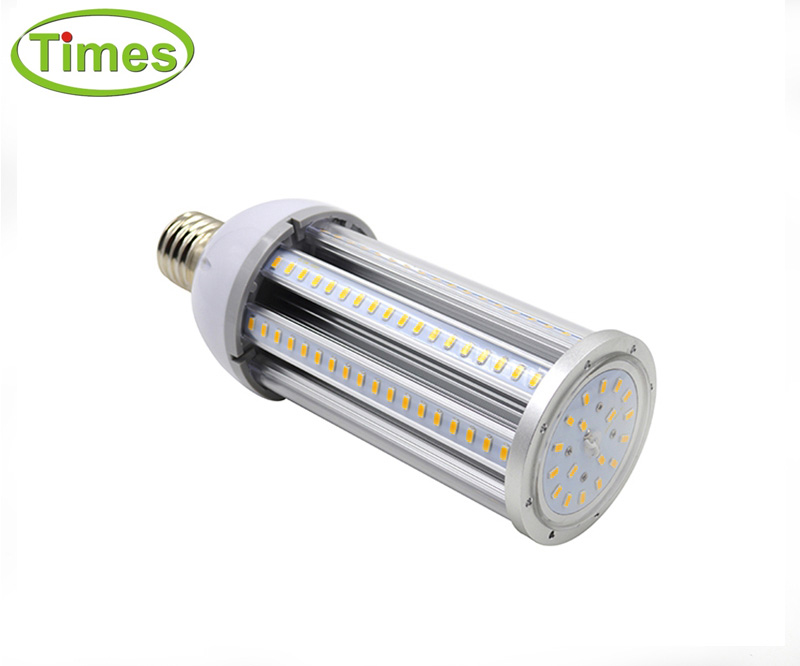

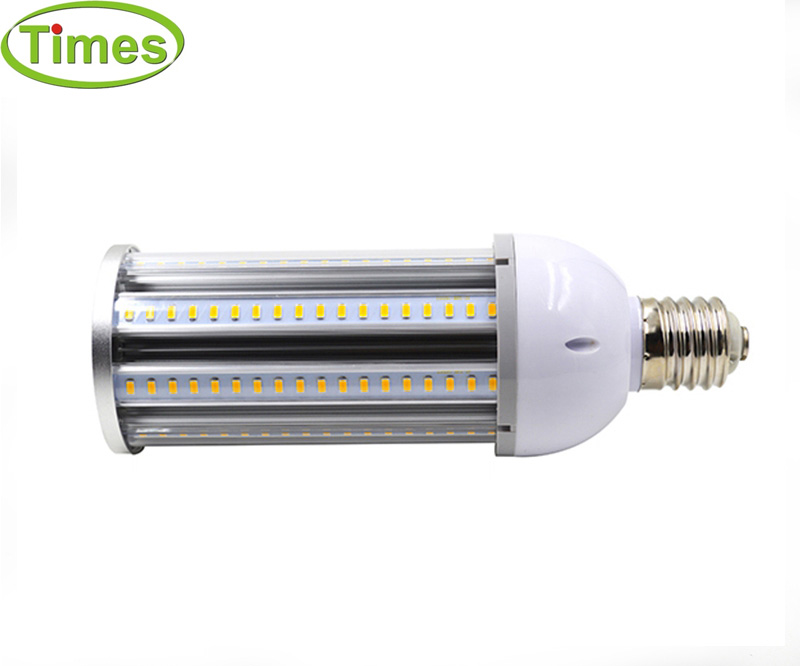

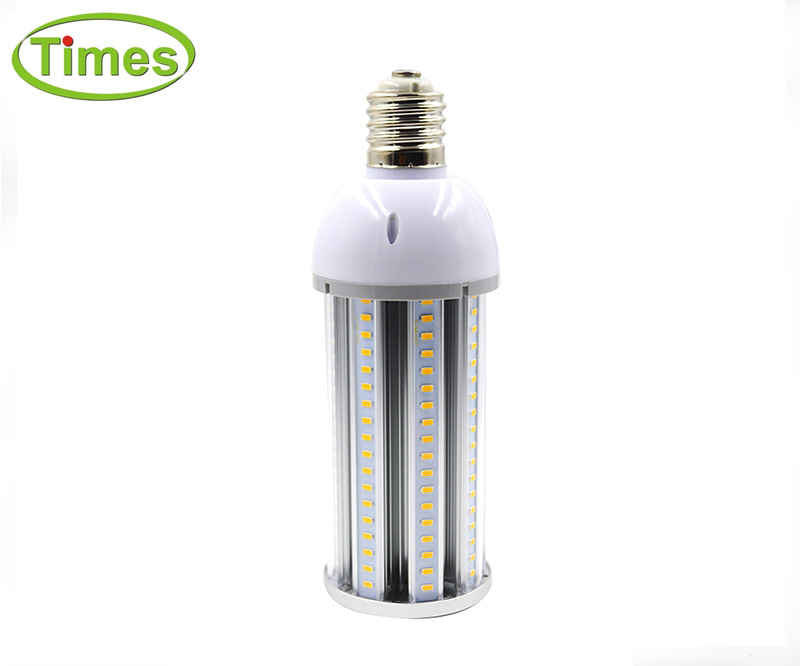

35W IP64 Waterproof LED Corn Light
1.Specifications:
|
Item NO. |
TS-CN-35W |
|
Light Source |
SMD5730 LED |
|
LED Quantity |
119pcs |
|

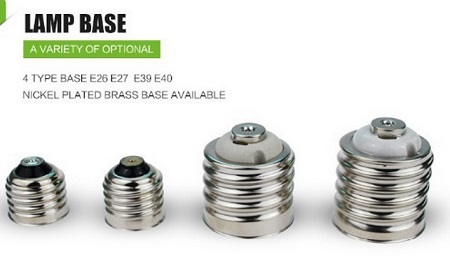

Base Type |
E27/E40 |
|
Input Voltage(V) |
AC85-265V 50-60Hz |
|
Rated Power(W) |
35W |
|
Luminous Flux (lm) |
3675lm |
|
Light Efficiency (lm/w) |
105 |
|
CRI (Ra>) |
80 |
|
Color Temperature (CCT) |
2700-6500K |
|
Working Temperature(℃) |
-20 - +45 |
|
Lifespan (Hour) |
50,000 |
|
Certifications |
CE, EMC, LVD, PSE, RoHS |
|
Power Factor |
≥0.95 |
|
Brand Name |
TIMES |
|
Dimensions (mm) |
D93*H237mm |
|
IP Rating |
IP64 |
|
Capacitor Brand |
Rubycon |
|
Chip Brand |
Epistar |
|
LM80 Tested |
YES |

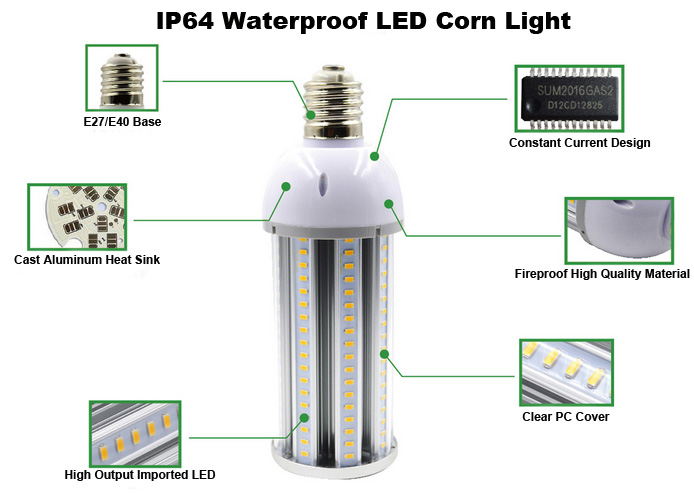

2.Product Features:

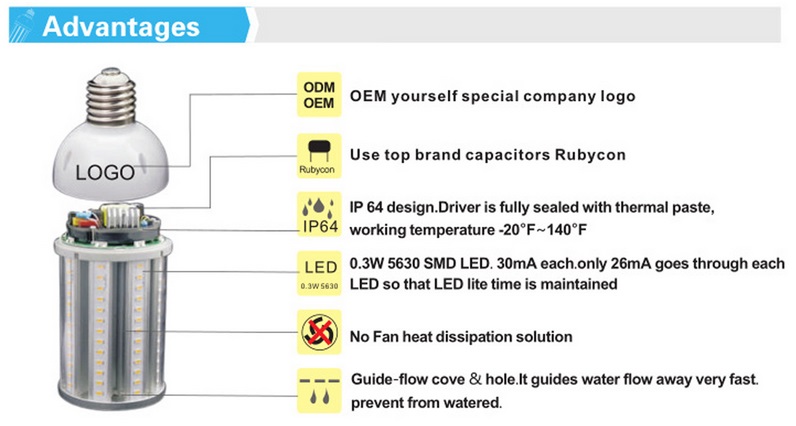

3.Advantages:
1) LED Corn Light with 360 Degree Beam Angle design to make the light radiating uniformly to the ground.

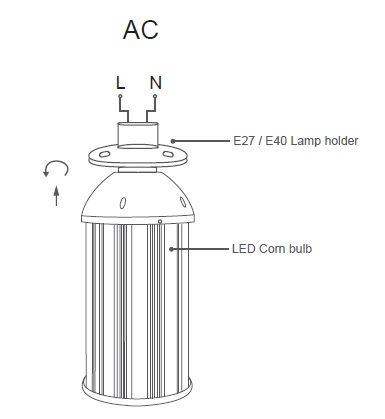

2) Easy replacement, directly replace the traditional E40 or E27 Base CFL,HPS, HM in IP65 or IP67 fixtures.
3) 80% more energy saving compared with traditional lamps.
4) High CRI with great directionality, CRI>80.
5) Solves 4 difficulties for LED packaging, heat sinking, operational lifespan, luminous efficiency.
6) High Luminous Efficiency, more than 105-120LM/W.
7) 12W-150W version without fan !

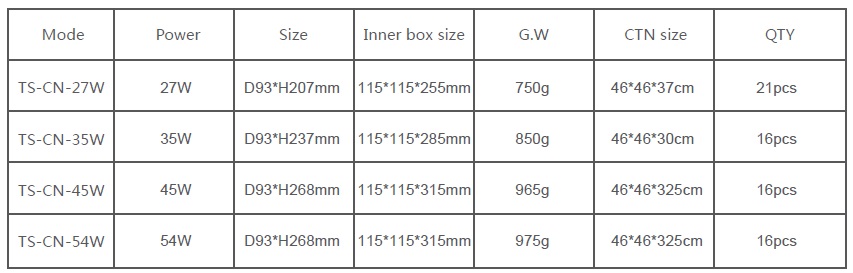

4.Package Details:

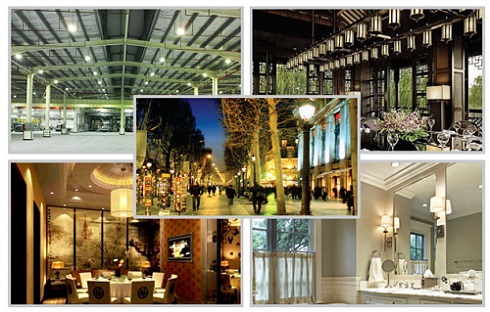

6.Applications:

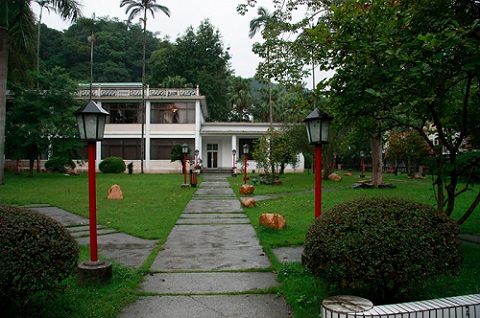

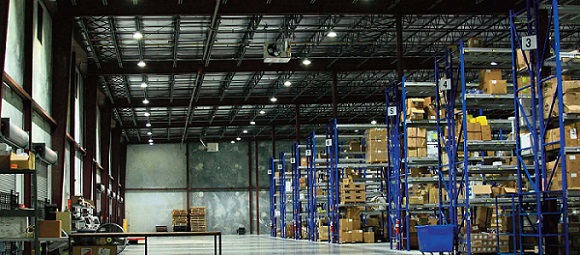

LED Corn Light is mainly used in Garden,street, warehouse, shopping mall,wall light. Parking Lot, Courtyard, Square, Park, Airport, Subway, Gymnasium, etc..
|
