Products >> Commercial Lighting >> LED Linear Light >> 20W 0.6m L821 Series LED Linear Light with LEDiL Lens

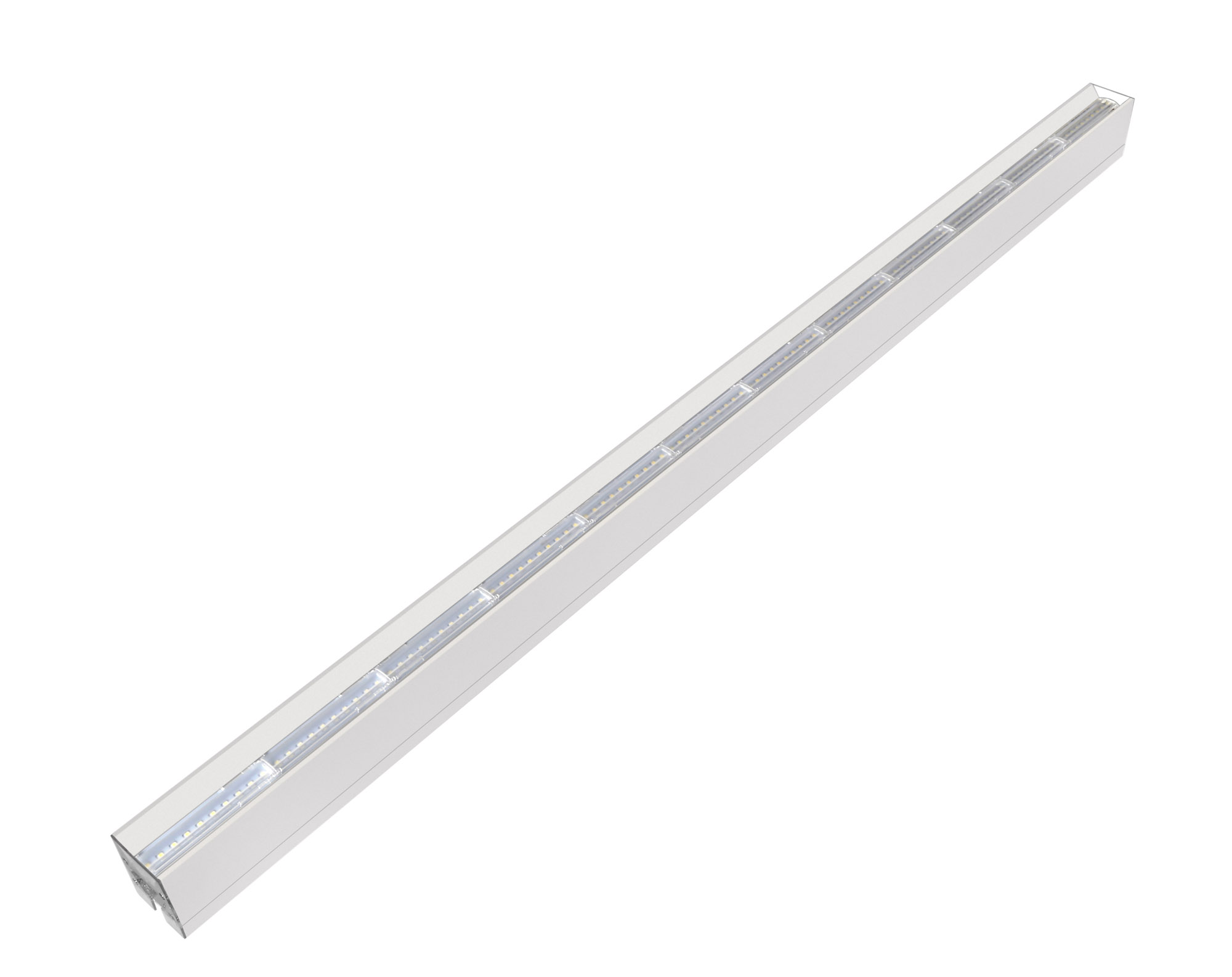

20W 0.6m L821 Series LED Linear Light with LEDiL Lens
Model. : L821-06-20W
Introduction&Application :
Product Name: L821 Series LED Linear Light with Optical Lens 1. Philips LED + Tridonic Dirver + LEDiL Lens from Finland 2. Different lens for different beam angle 3. Seamless Connection; Seamless Connector with Private Moulding 4. Suitable for Office, Warehouse, Shopping Mall, Hotels and so on 5. Lifespan: >50,000 hours...

Large image



20W 0.6m L821 Series LED Linear Light with Optical LEDiL Lens

(Philips LED + Tridonic Dirver + LEDiL Lens from Finland)


1.Specifications:

Item NO.
L821-06-20W
Light Source
Philips SMD2835 LED
Driver Brand
Tridonic Driver
Lens Brand
World-famous LEDiL Lens from Finland
Input Voltage(V)
AC220-240V   50-60Hz
Rated Power(W)
20W
Luminous Flux (lm)
2400lm
Light Efficiency (lm/w)
120lm/W
CRI (Ra>)
80
Color Temperature (CCT)
2700-6500K
Working Temperature(℃)
-20 - +45
Lifespan (Hour)
>50,000
Dimensions(mm)
L580xW49.7xH64mm
Fixture Weight
1.07kgs
Brand Name
TIMES
Housing Color
Black & White & Silver
Materials
Aluminum + PC
Beam Angle
30x100°/60x100°/90x105°/Asymmetric /Double Asymmetric
Chip Brand
Original Philips LED
LM80 Tested
YES

2. Product Features:

-Private moulding and unique structure design
-Special optical lens design, different beam angles for different applications: 15/30/60/90/asymmetric/double asymmetric
-World famous LEDiL Lens from Finland

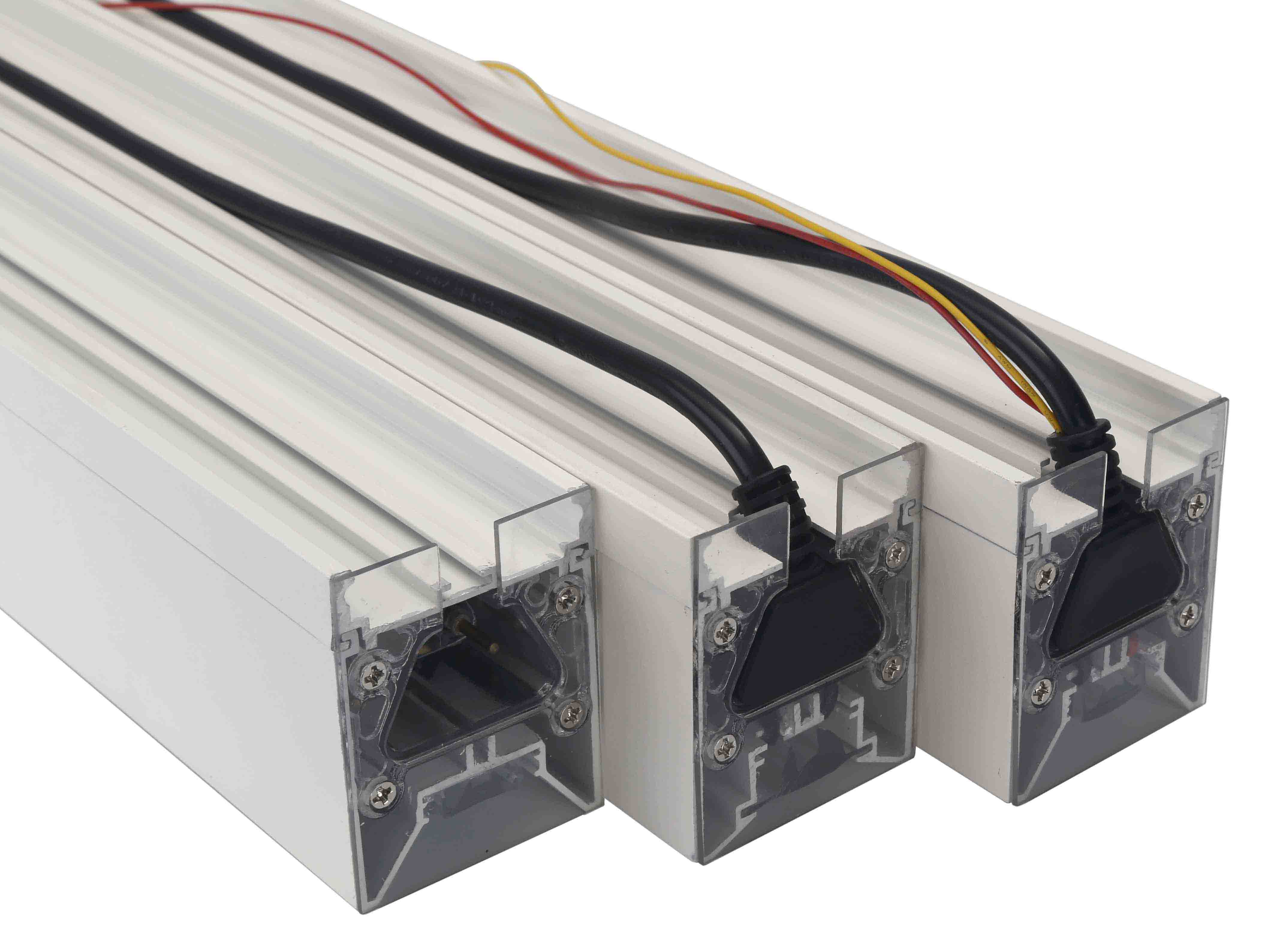

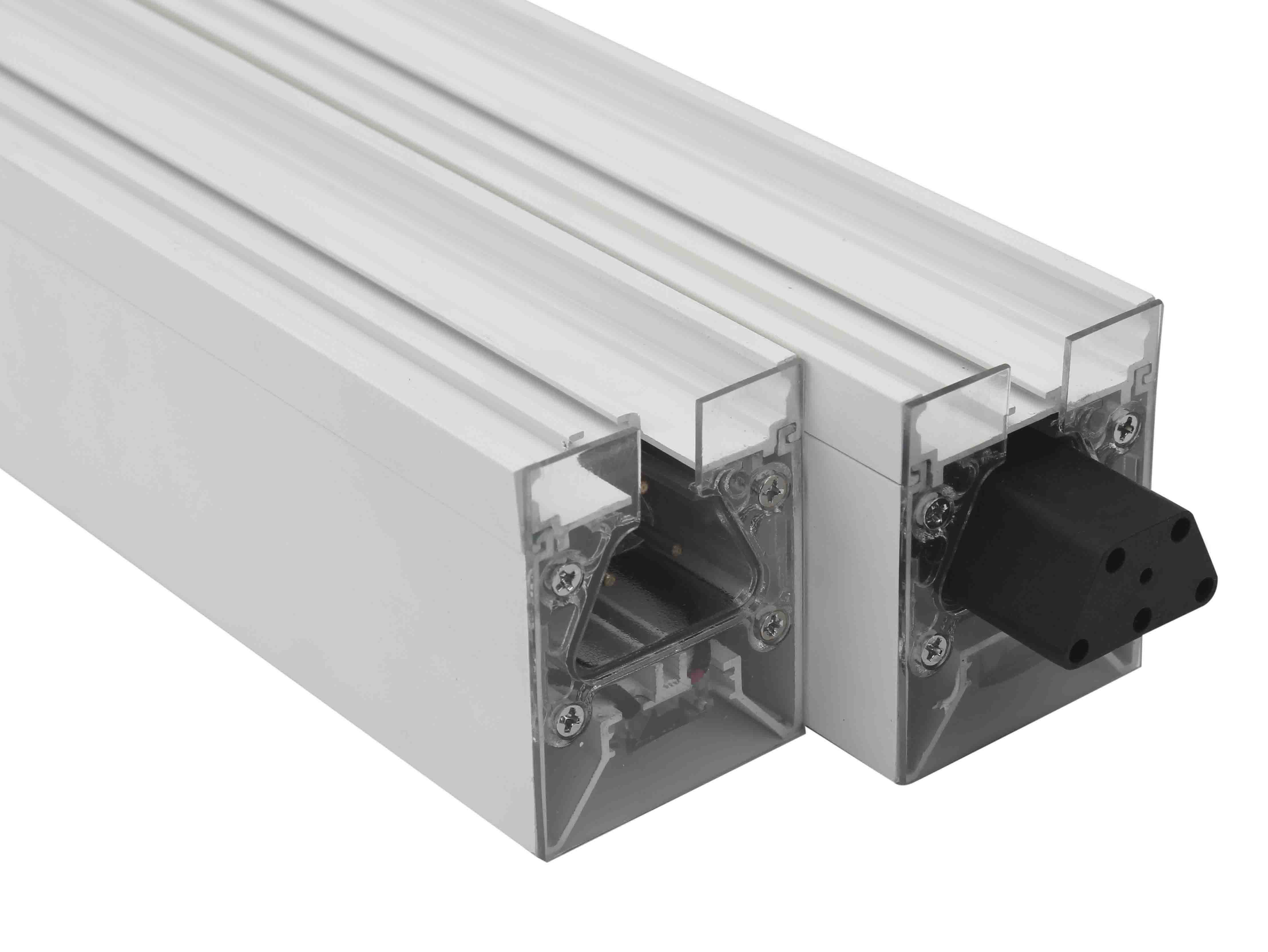

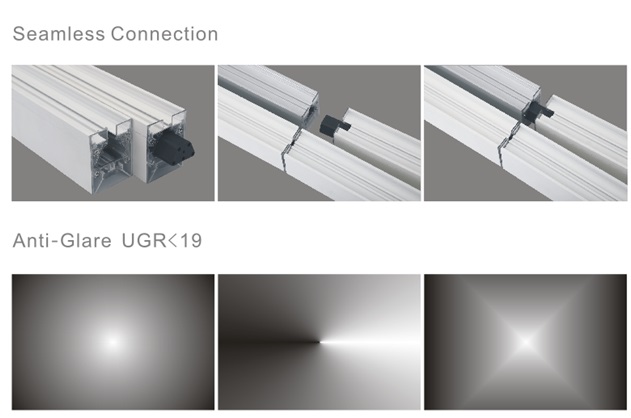

-Seamless connection without any tool, easy connection and installation, save labor costs

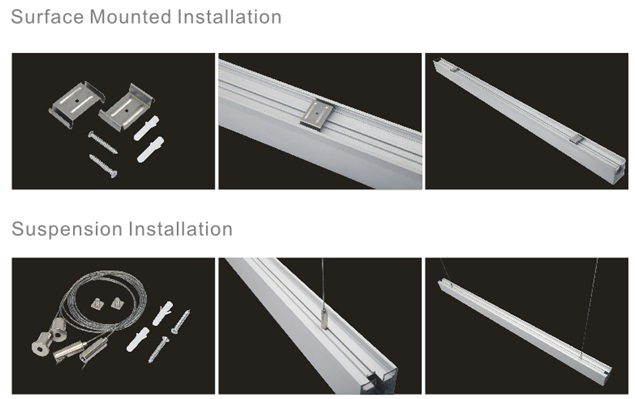

-Surface Mounted & Suspending Installation
-Either continuous or discontinuous installation
-High efficiency Philips LED up to 120lm/W
-Non-dimmable/0-10V dimmable/DALI dimmable available
-Anti-glare, UGR<19

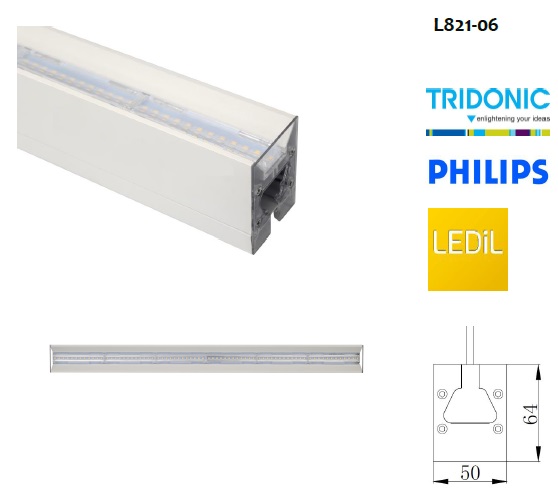

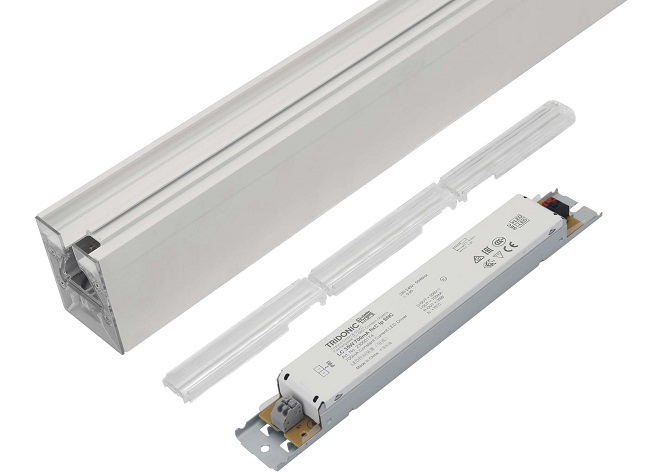

3. Structure:

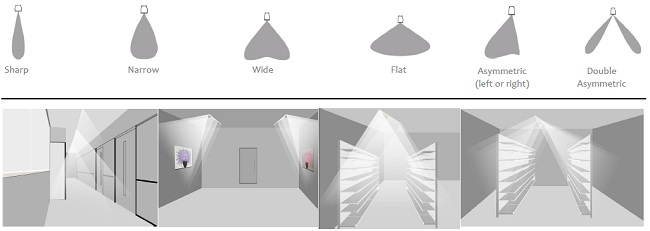

4. Different Lens for Different Light Distribution:

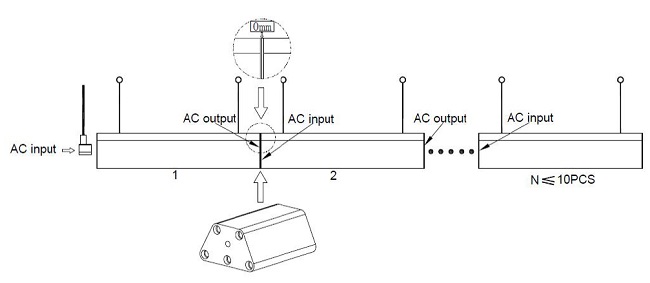

5. Assembly Introduction:

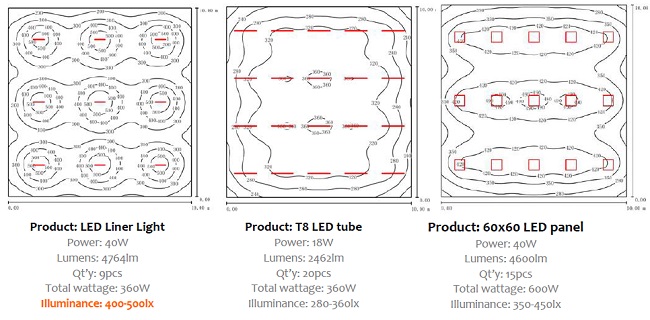

6. Dialux Comparison with LED Tube/Panel

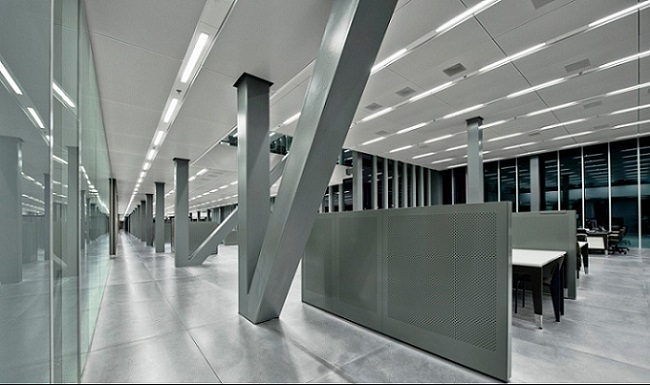

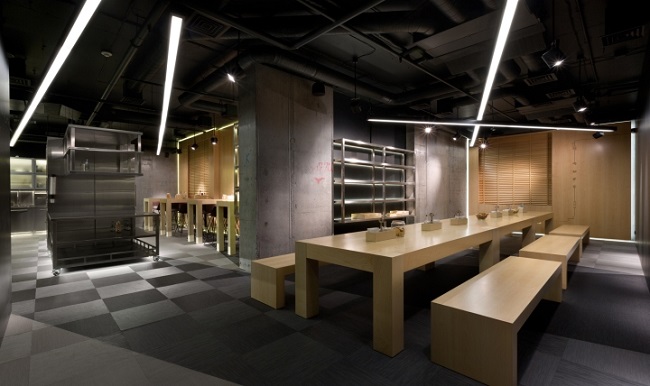

7.Applications:
Suitable for Warehouse, Office, Shopping Mall, Supermarket, Hotel, Storage Racks, Hospital, Library, Workshop, Car Parking Lots, Corridors and so on.
