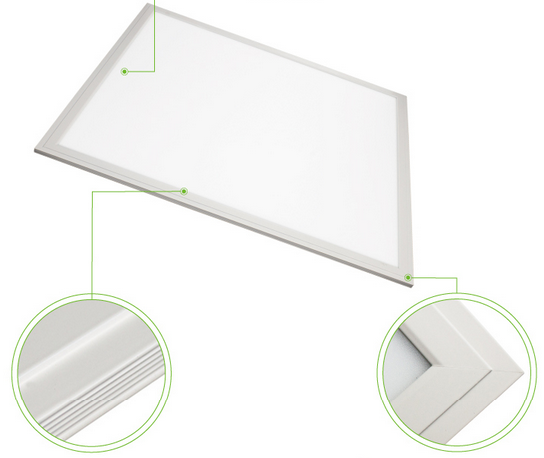

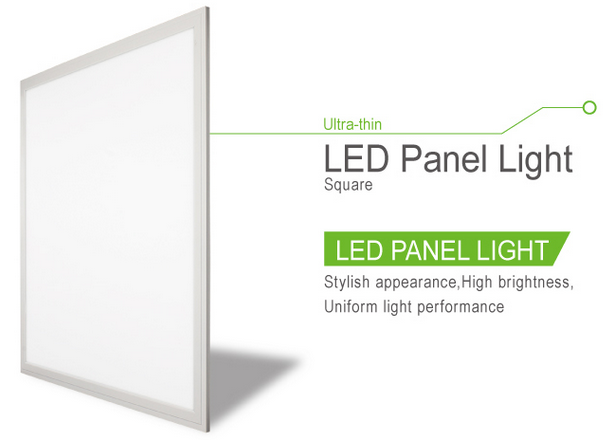

45W 300x1200mm Ultra-thin Square LED Panel
1.Features
- CE Standard, with isolated external power supply
- PF>0.95, Power Efficiency: >0.85
- Light Guide Plate imported from Taiwan
- 3 years warranty
- High efficiency: up to 80lm/w
- SMD4014 LED, Ra>80
- Both dimmable & non-dimmable are available
- Energy-saving & Super bright , saving 75% energy compared with traditional panel lights
2. Technical Specification (commonality)
|
Power supply: |
With External Constant Current Power Supply |
|
Input Voltage: |
AC100V～240V |
|
Frequency Range: |
50Hz～60Hz |
|
Total Harmonic Distortion: |
≤ 15 % |
|
Power Factor: |
＞0.9 |
|
Power Efficiency: |
＞87 % |
|
LED Type: |
SMD 4014 |
|
Color Temperature: |
3000K,4000K,5000K,6000K |
|
Color Rendering Index: |
Ra＞82 |
|
Beam Angle: |
120° |
|
Working Temperature: |
-20℃～ +45℃ |
|
Storage Temperature: |
-25℃～+65℃ |
|
IP Grade: |
IP40 |
|
Working Life-span: |
50,000H |

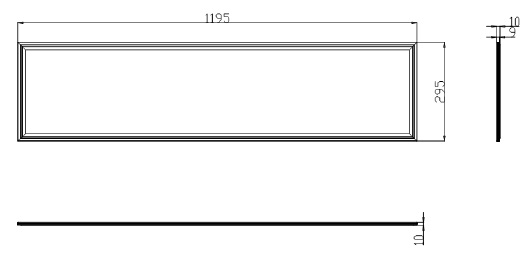

3. Dimensions (Unit: mm):

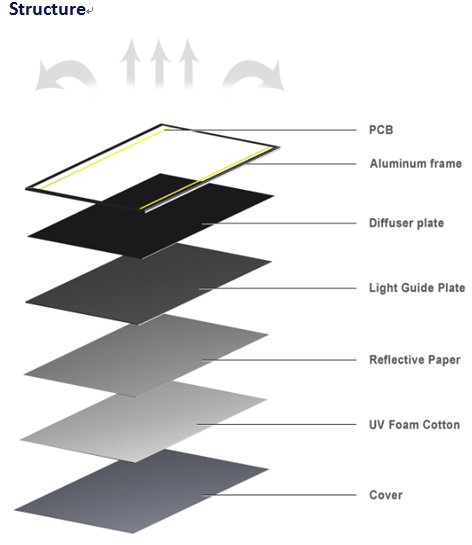

4. Structure:
5. Parameters:
|
Item |
Power |
Input Voltage |
Lumens (lm) |
SMD4014 LED Qty |
Size(mm) |
efficiency |
Output voltage |
Current (mA) |
CCT |
|
TS-P22E-36WA |
36W |
AC100-240V |
2880±5% |
192 |
595*595*9 |
80lm/w |
36VDC |
900mA |
W=3045±175K, N=3985±275K, D=5028±283K, C=6530±510K |
|
TS-P22E-45WA |
45W |
AC100-240V |
3600±5% |
216 |
595*595*9 |
36VDC |
1100mA |
|
TS-P22E-54WA |
54W |
AC100-240V |
4320±5% |
384 |
595*595*9 |
36VDC |
1350mA |
|
TS-P14E-36WA |
36W |
AC100-240V |
2880±5% |
192 |
292*1195*9 |
36VDC |
900mA |
|
TS-P14E-45WA |
45W |
AC100-240V |
3600±5% |
216 |
295*1195*9 |
36VDC |
1100mA |
|
TS-P24E-60WA |
60W |
AC100-240V |
4800±5% |
384 |
595*1195*9 |
36VDC |
1500mA |
|
TS-P24E-72WA |
72W |
AC100-240V |
5700±5% |
384 |
595*1195*9 |
36VDC |
1800mA |

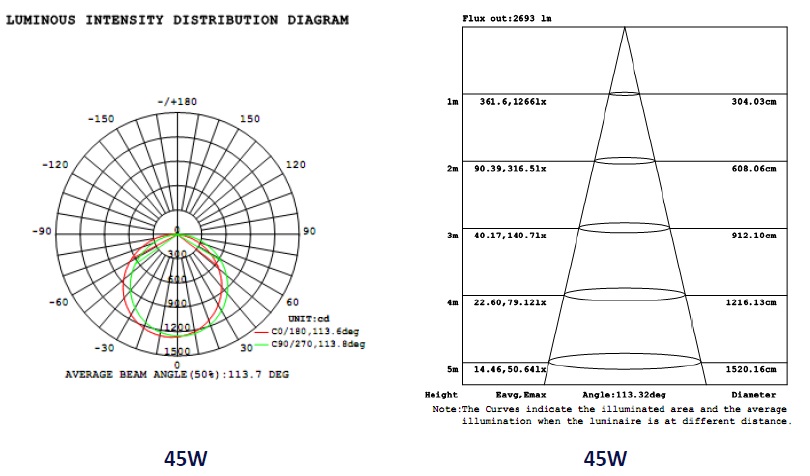

6. Photometric Data:

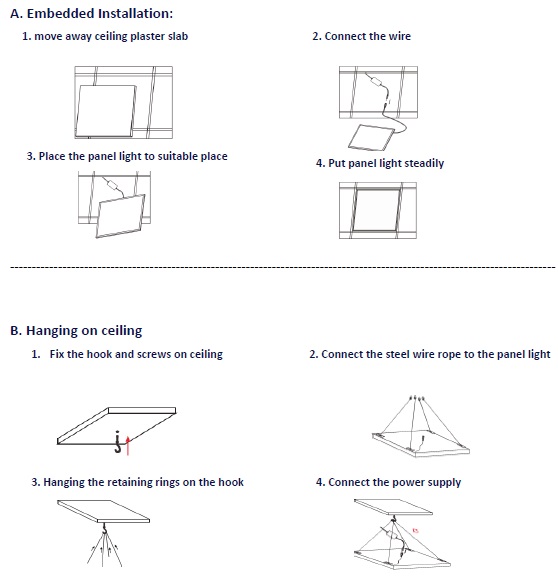

7. Installation:

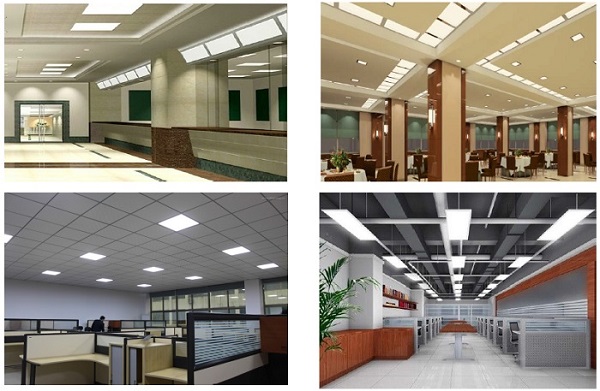

8. Application:
Replacement for conventional panel lights :
Hotels / Meeting Rooms
Factories / Offices / Car parks /Schools
Hospitals / Supermarkets / Railway Stations & Airports
|
