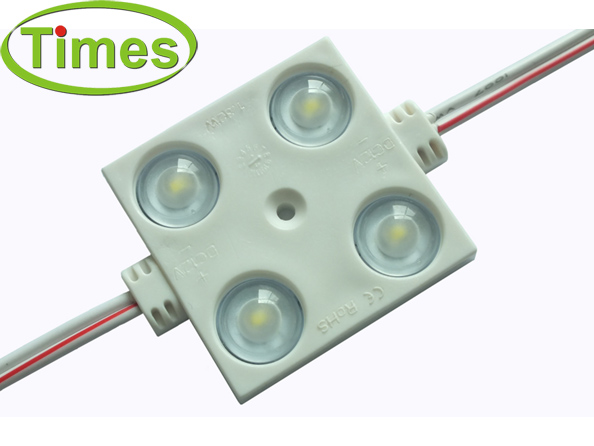

SMD2835 Injection LED Module with Lens
Model. : MF4636
Introduction&Application :

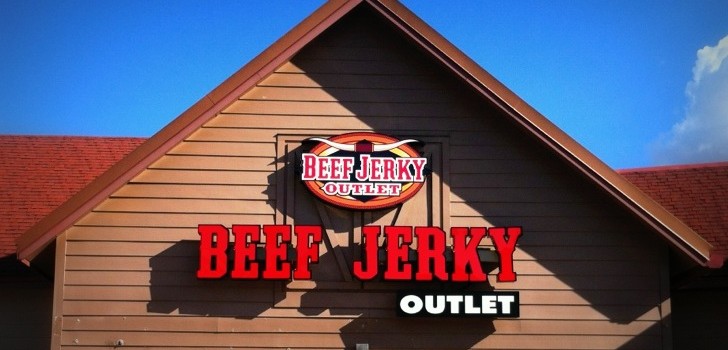

* It is applicable for Shopping Mall, Hotel, Building, Store and other indoor or outdoor advertising signage illumination. * It is applicable for back-lit Signage, Channel Letter, Lighting Box....

Large image



Product Feature:
1. Using High Brightness SMD2835 LED
2. Injection Fireproof ABS Shell
3. DC12V Working Voltage
4. Optical lens create a wide beam angle
5. Aluminum PCB inside offering best heat performance
6. Super-slim, available for slim back-lit channel letter & lighting box
7. 4 Year Warranty, 50,000 Hours Lifespan as designed
8. IP Rating: IP65, Waterproof, Outdoor Use
9. Easy installation and maintenance free
10. Cuttable per 1pc Module

Description:
Used high light efficiency SMD2835 LEDs, high brightness, large emitting angle, low thermal resistance, and low light decay, high uniformity of the emitting color, using pure thick copper wire and designing by low thermal resistance to ensure the steady current and lower the heat; reasonable circuit design, convenient to install and wiring regulation, life span over 50,000 hours, power supply at constant 12V DC; safety, energy saving and eco-friendly.

Description of product


Voltage

DC 12V

Material of shell

ABS

Input Current

120mA(constant current)

Color of shell

White

Power

1.44 W

Connection cable

UL1007 18AWG

Viewing Angle

160°

Color of Connection cable

Positive: RedNegative: White

Lumen

140 lm

Cascade QTY

25 pcs

Dimension

46*36*7 mm

Fix Screw

M2.5

LED QTY

4 pcs

Back tape

EVA Sponge tape

Emitting Angle

White

Working Temp

-40~60

IP Grade

IP65

Storage  Temp

-60~80

Protection Class

Injection+siamesed lens

warranty

4 years


Parameters of light source


LED Type

0.3W SMD2835 LED

Viewing Angle

120° (for LED)

Lifespan

>50000H

Emitting color

Warm white/Pure White/Cool White

Forward Voltage

3.0-3.3V

LED CCT

Warm White

Pure White

Cold White

3000-3500K

6000-6500K

8000-10000K

Luminous flux

Warm White

Pure white

Cold white

35-40 lm

35-40 lm

35-40lm

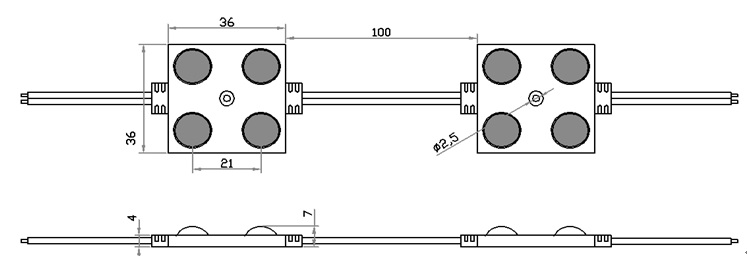

Dimensions:  (Unit: mm)

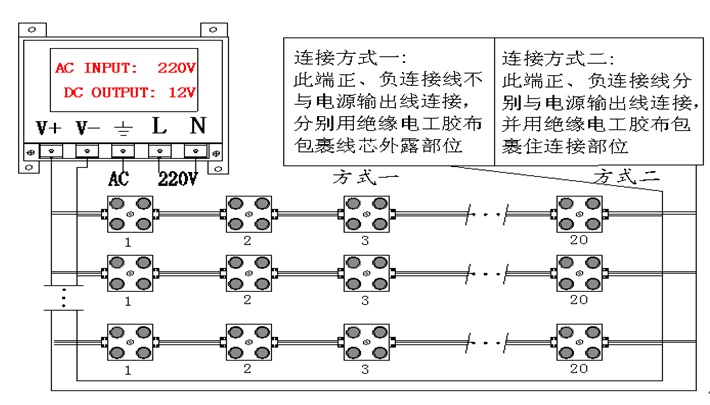

Wiring Diagram:


Remarks of installation and application:
1. Don`t stick the surface of the light by sharp tools.
2. Don`t fix this product by sour glass glue or other soured adhesion; don`t operate or store this product in sour environment or the light will be vulcanized and the lifespan of the product will be reduced.
3. Drive this product by 12V DC switch power supply, and the power should be suitable for the quantity of the led modules; do not connect this product to the utility directly, or the product will be burnt up.
4. The total power of the led modules in series should be lower than 80% of the power of the driver, or the power supply will be burnt up probably, select the suitable thickness of the connecting cable  according to the quantity of modules, and the connecting points should be wrapped by electrical tape.
5. The standard cascade quantity of this product is 20pcs for one string. Please note the voltage drop problem when you want to increase the quantity of the module for one string.

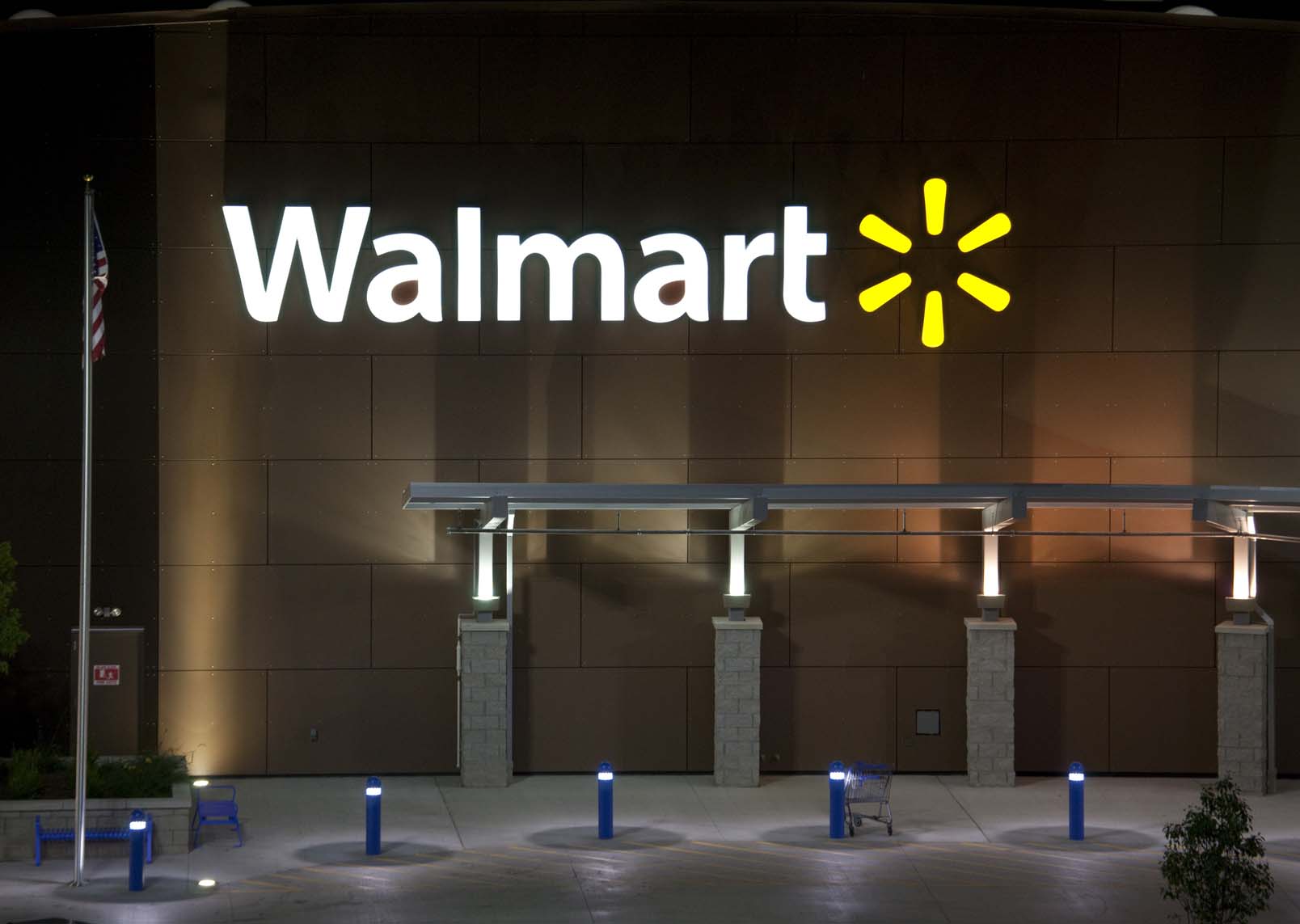

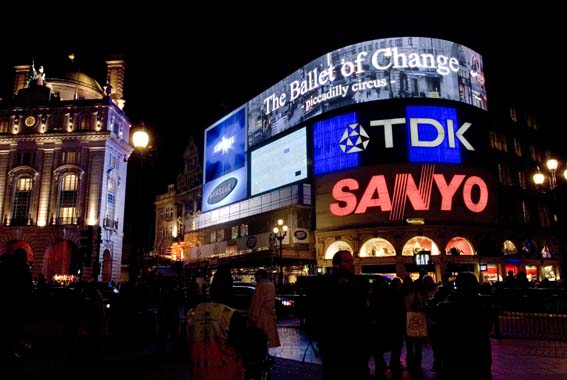

Applications:

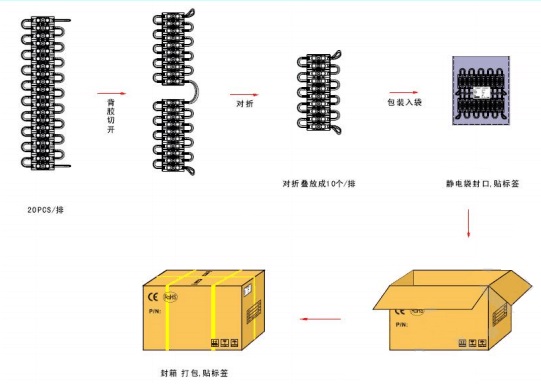

Packaging:
