Product Feature:

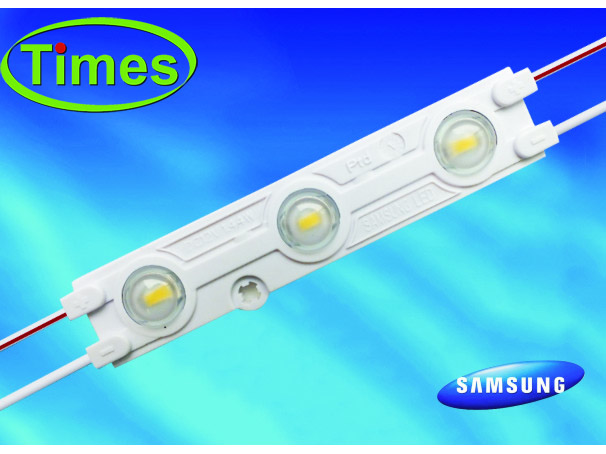

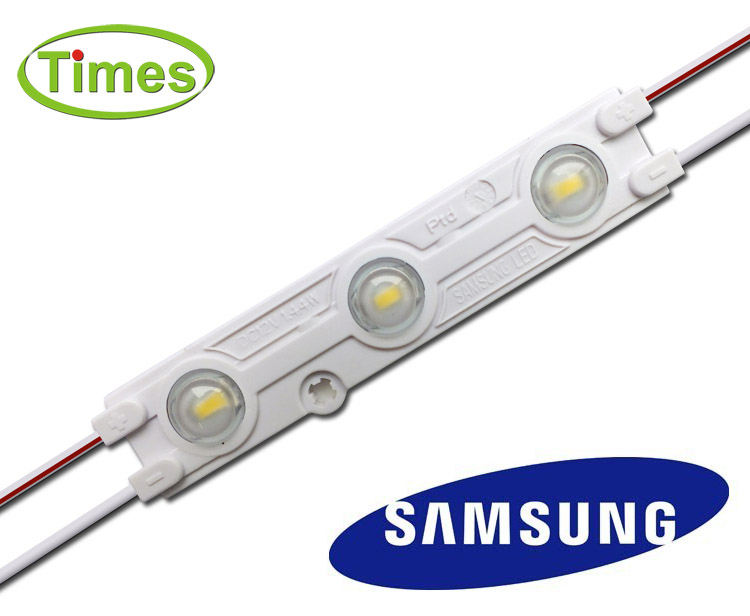

1. Using original SMD5630 SAMSUNG LED
2. Injection Fireproof ABS Shell

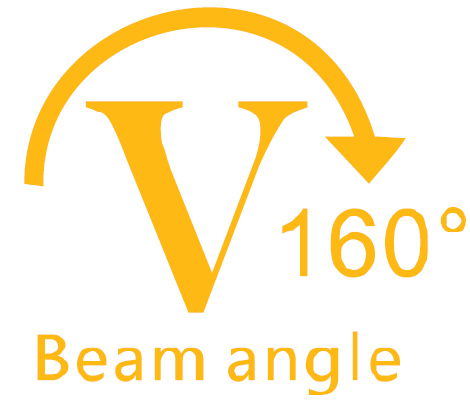

3. DC12V Working Voltage
4. Optical lens create a wide beam angle
5. Aluminum PCB inside offering best heat performance
6. Super-slim, available for slim back-lit channel letter & lighting box
7. 4 Year Warranty, 50,000 Hours Lifespan as designed
8. IP Rating: IP65, Waterproof, Outdoor Use
9. Easy installation and maintenance free
10. Cuttable per 1pc Module
Description:
Used high light efficiency original SMD5630 SAMSUNG LEDs, high brightness, large emitting angle, low thermal resistance, and low light decay, high uniformity of the emitting color, using pure thick copper wire and designing by low thermal resistance to ensure the steady current and lower the heat; reasonable circuit design, convenient to install and wiring regulation, life span over 50,000 hours, power supply at constant 12V DC; safety, energy saving and eco-friendly.
Description of product：
|
Operating voltage(V) |
DC 12V |
Material of shell: |
ABS + aluminum PCB |
|
Input current（mA） |
120mA |
Color of the shell； |
White/ Milk White ABS |
|
Power（W） |
1.44W |
Material of the connecting cables： |
100mm/2468/20AWG |
|
Emitting angle |
160° |
Color of connecting cable: |
Positive: red;negative: white |
|
Luminous flux(lm) |
150-155 Lm |
Cascade quantity（pcs）: |
20Pcs |
|
Dimension(mm) |
80*16*6.5mm |
Fix screw: |
M3 Screw |
|
Quantity of LED(pcs) |
3pcs |
Back glue: |
white 3M sponge tape |
|
Emitting color |
Warm White/Pure White/Cold White |
Operating temperature: |
-40~60℃ |
|
LED Chip |
Samsung |
Storage temperature: |
-60~80℃ |
|
Protection class |
IP65 |
Warranty |
5 years |
|
Weight of unit led module |
13.6g |
Weight of 20pcs led module： |
272g |
Parameters of light source：
|
Type of led |
Samsung SMD5630 |
|
Emitting angle |
120° |
|
Life span |
>50000H |
|
Emitting color |
White |
|
VF |
White：2.9-3.3V |
|
CT/WL of led |
warm white |
pure white |
cold white |
|
2800-3500K |
4000-4500K |
5000-6500K |
|
Luminous flux/
brightness（@150MA） |
warm white |
pure white |
cold white |
|
50-55LM |
50-55LM |
55-60LM |

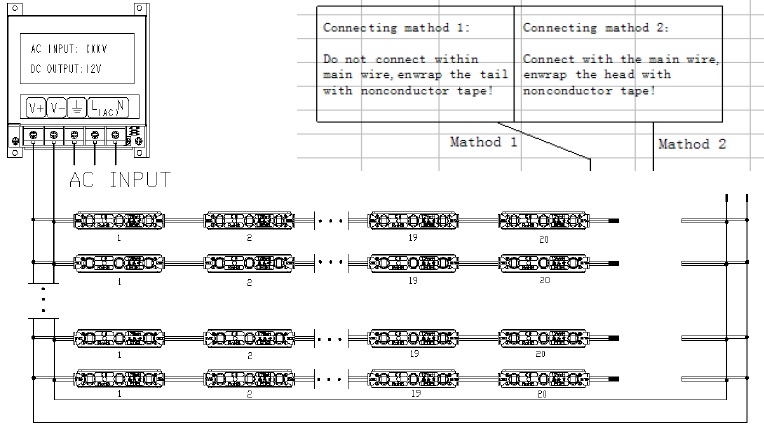

Wiring Diagram:
Remarks of installation and application:
1. Don`t stick the surface of the light by sharp tools.
2. Don`t fix this product by sour glass glue or other soured adhesion; don`t operate or store this product in sour environment or the light will be vulcanized and the lifespan of the product will be reduced.
3. Drive this product by 12V DC switch power supply, and the power should be suitable for the quantity of the led modules; do not connect this product to the utility directly, or the product will be burnt up.
4. The total power of the led modules in series should be lower than 80% of the power of the driver, or the power supply will be burnt up probably, select the suitable thickness of the connecting cable according to the quantity of modules, and the connecting points should be wrapped by electrical tape.
5. The standard cascade quantity of this product is 20pcs for one string. Please note the voltage drop problem when you want to increase the quantity of the module for one string.

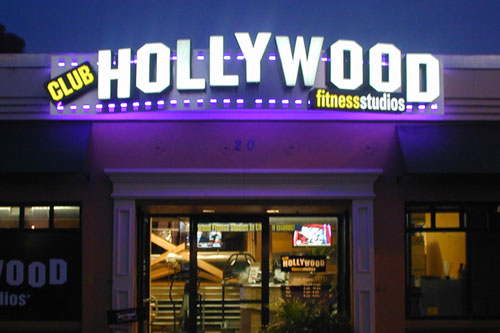

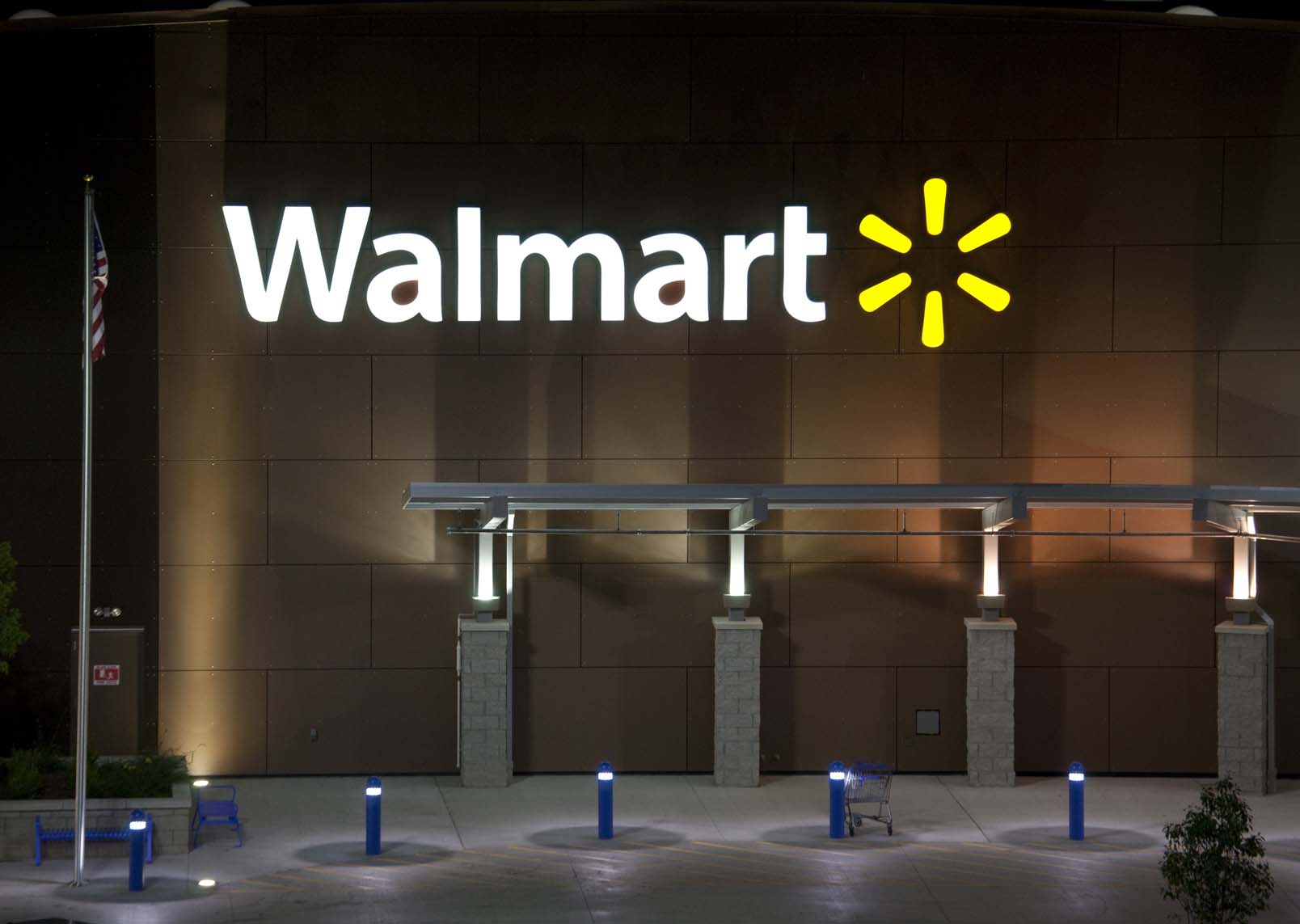

Applications:

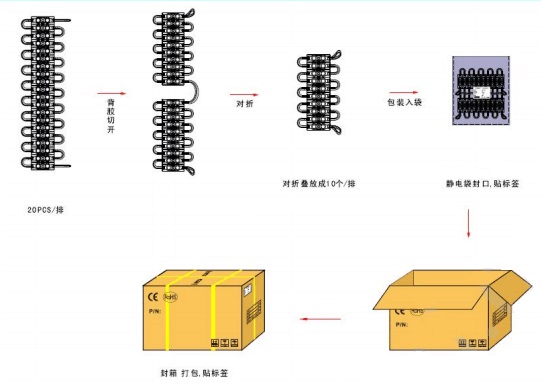

Packaging:&, amp;, lt;, /STRONG>
|
