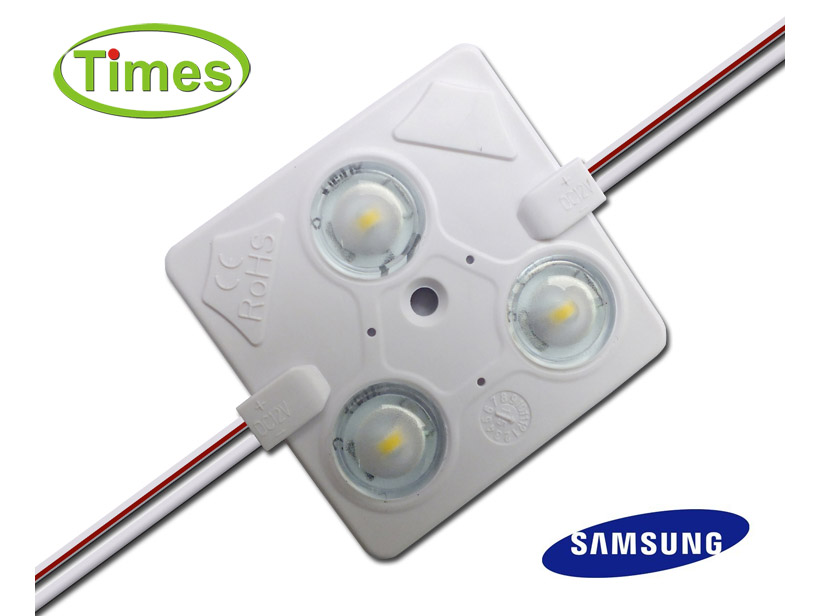

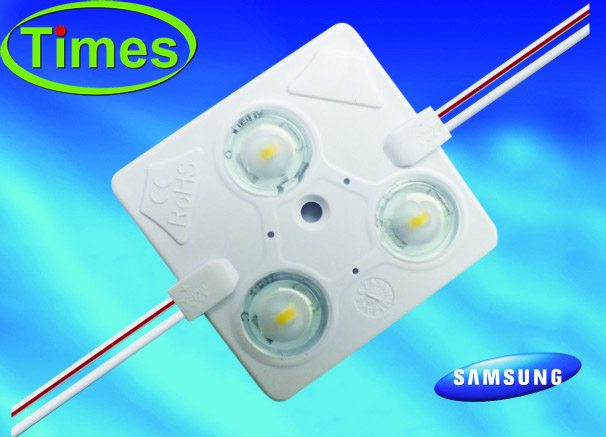

SAMSUNG SMD5630 Injection LED Module
Model. : MSA5042
Introduction&Application :
* It is applicable for Shopping Mall, Hotel, Building, Store and other indoor or outdoor advertising signage illumination. * It is applicable for back-lit Signage, Channel Letter, Lighting Box....

Large image



Product Feature:
1. Using original Samsung SMD5630 LED
2. Injection Fireproof ABS Shell
3. DC12V Working Voltage
4. Optical lens create a wide beam angle
5. Aluminum PCB inside offering best heat performance
6. Super-slim, available for slim back-lit channel letter & lighting box
7. 4 Year Warranty, 50,000 Hours Lifespan as designed
8. IP Rating: IP65, Waterproof, Outdoor Use
9. Easy installation and maintenance free
10. Cuttable per 1pc Module

Description:
Used high light efficiency original Samsung SMD5630 LEDs, high brightness, large emitting angle, low thermal resistance, and low light decay, high uniformity of the emitting color, using pure thick copper wire and designing by low thermal resistance to ensure the steady current and lower the heat; reasonable circuit design, convenient to install and wiring regulation, life span over 50,000 hours, power supply at constant 12V DC; safety, energy saving and eco-friendly.

Description of product


Operating voltage(V)

DC 12V

Material of shell:

ABS + aluminum PCB

Input currentmA

120mA

Color of the shell

White/ Milk White ABS

PowerW

1.44W

Material of the connecting cables

100mm/2468/20AWG

Emitting angle

160°

Color of connecting cable:

Positive: red;negative: white

Luminous flux(lm)

150-155 Lm

Cascade quantitypcs:

20Pcs

Dimension(mm)

47.7*42*7mm

Fix screw:

M3 Screw

Quantity of LED(pcs)

3pcs

Back glue:

white 3M sponge tape

Emitting color

Warm White/Pure White/Cold White

Operating temperature:

-40~60℃

LED Chip

Samsung

Storage temperature:

-60~80℃

Protection class

IP65

Warranty

5 years

Weight of unit led module

13.6g

Weight of 20pcs led module

272g


Parameters of light source


Type of led

Samsung SMD5630

Emitting angle

120°

Life span

>50000H

Emitting color

White

VF

White2.9-3.3V

CT/WL of led

warm white

pure white

cold white

2800-3500K

4000-4500K

5000-6500K

Luminous flux/

brightness@150MA

warm white

pure white

cold white

50-55LM

50-55LM

55-60LM


Dimensions:  (Unit: mm)

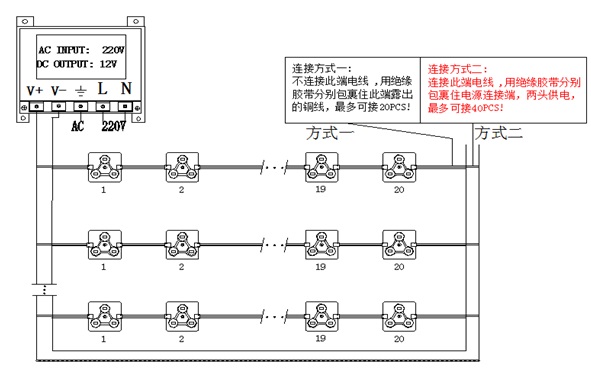

Wiring Diagram:

Remarks of installation and application:
1. Don`t stick the surface of the light by sharp tools.
2. Don`t fix this product by sour glass glue or other soured adhesion; don`t operate or store this product in sour environment or the light will be vulcanized and the lifespan of the product will be reduced.
3. Drive this product by 12V DC switch power supply, and the power should be suitable for the quantity of the led modules; do not connect this product to the utility directly, or the product will be burnt up.
4. The total power of the led modules in series should be lower than 80% of the power of the driver, or the power supply will be burnt up probably, select the suitable thickness of the connecting cable  according to the quantity of modules, and the connecting points should be wrapped by electrical tape.
5. The standard cascade quantity of this product is 20pcs for one string. Please note the voltage drop problem when you want to increase the quantity of the module for one string.

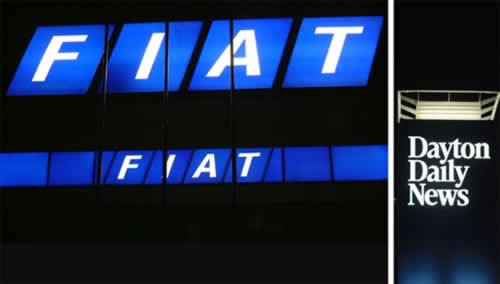

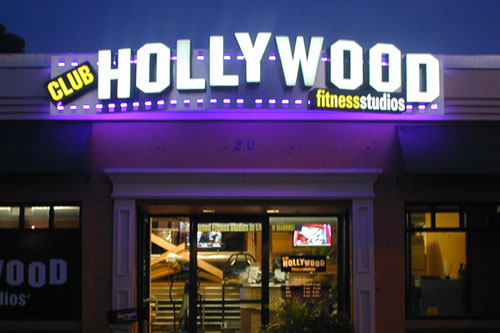

Applications:

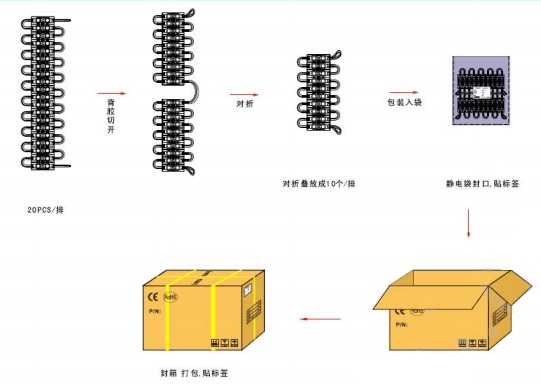

Packaging:
