Product Feature:

1, Adopt high quality LED as light source,high brightness,uniform lighting,good Antistatic;

2, AC220V/AC110V 50Hz/60Hz input;P.F>0.9;

3, Nice design with 155°optical lens;

4, Circuit design with constant current, over-temperature and short circuit protection function;

5, Use fire-resistant material, fireproof up to U94V-0 and waterproof up to IP67;

6, No need power supply; no wiring loss; no voltage-dropping; single cuttable; easy installation;

7, Certification : CE, RoHS, LM80, IP67

Application ：Advertising sign with 10-35mm and lighting box ect.

Description of product：

Voltage:	AC220V-240V 50Hz/60Hz	Color:	Rice white
Power:	2.5W	Material:	Fireproof Imported ABS (SABIC brand)
Lumens:	220lm	Weight (50PCS):	3250g
Beam angle:	155°	Connection Qty:	100PCS/string
Power Factor:	＞0.9	Fixing Screw:	M3 screw

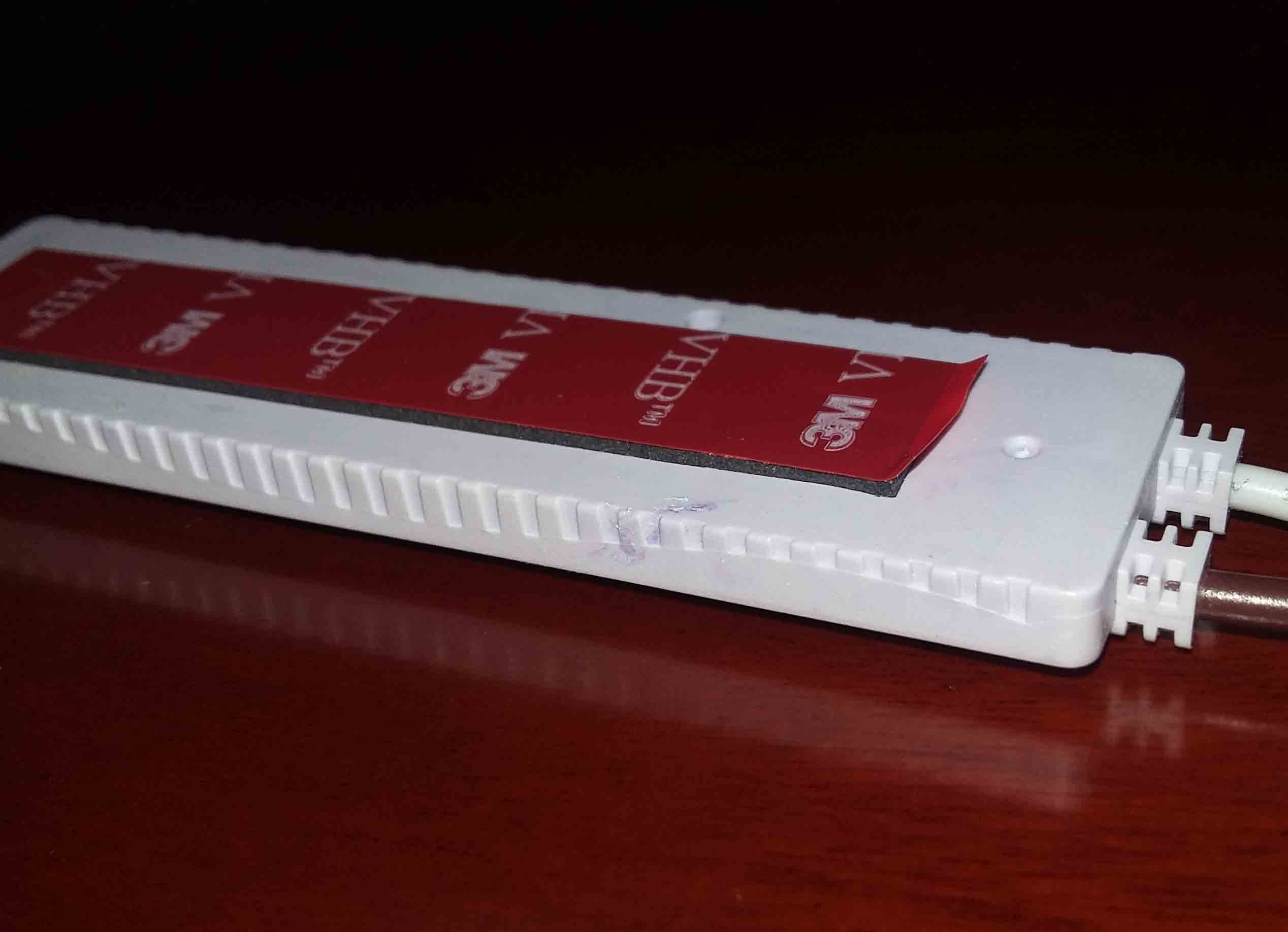

LED Qty.:	3PCS	Tape:	3M backing tape
CCT:	White	Working Temp.:	-20~55℃
Luminous efficacy:	86lm/w	Storage Temp.:	-40~80℃
IP rate:	IP67	Warranty:	5 years

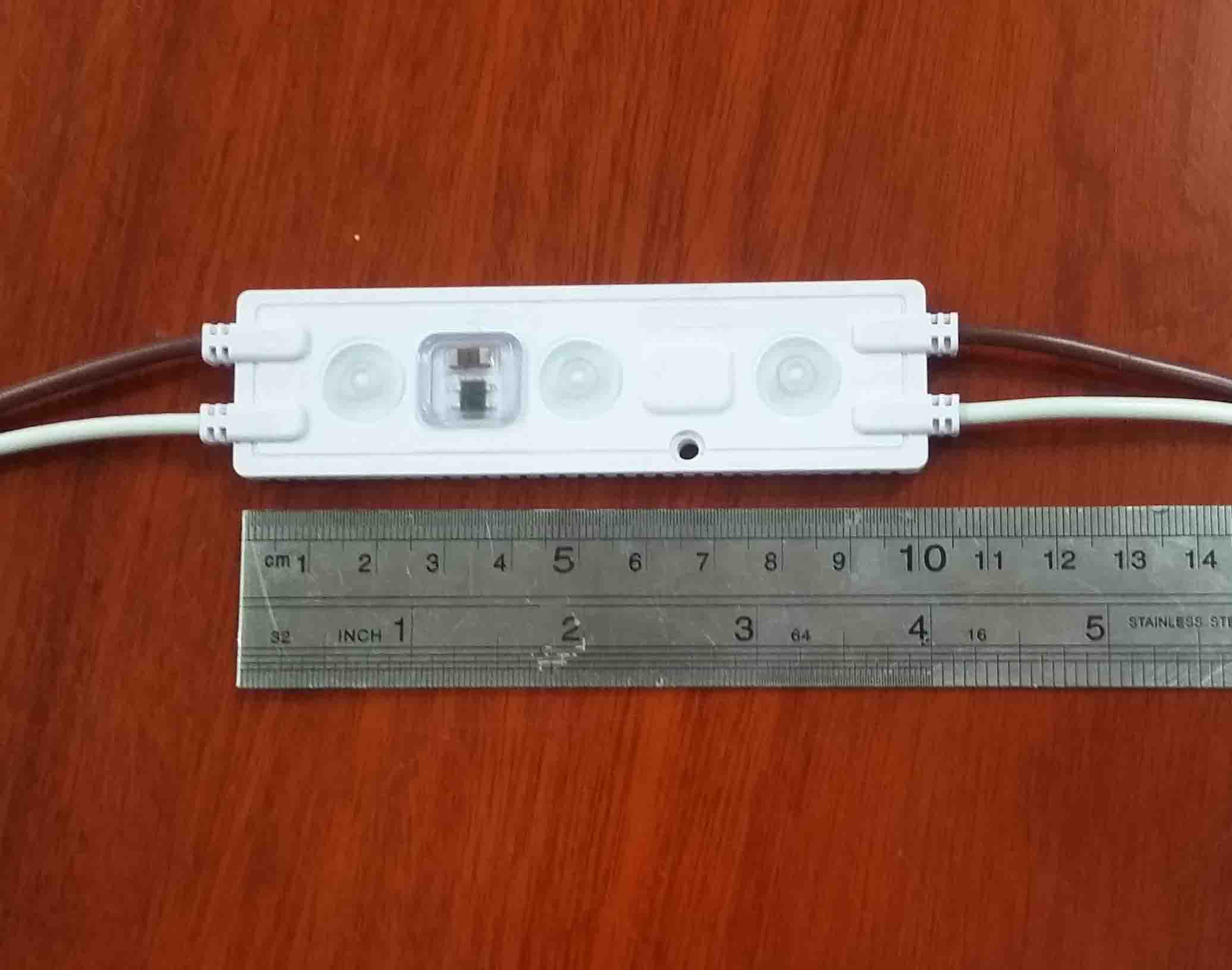

Dimensions:	110*28*8.5mm

Parameters of light source：

LED	SMD LED (LM80)
Life span	＞50,000H
Ra	≥80
CCT	6500-7000K/8000-10000K

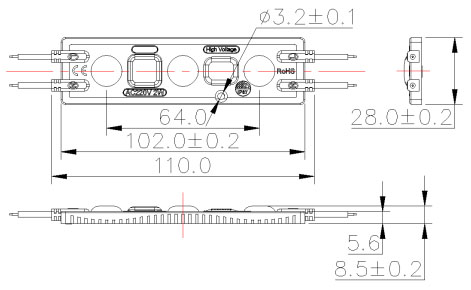

Dimensions:  (Unit: mm)

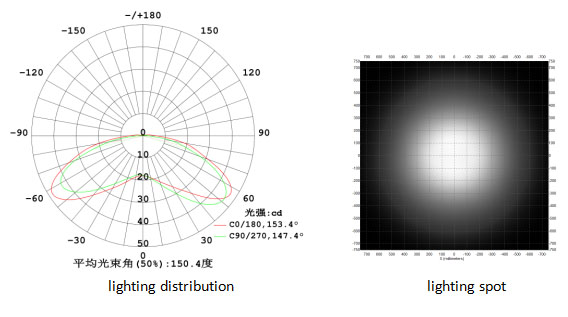

Lighting Distribution:

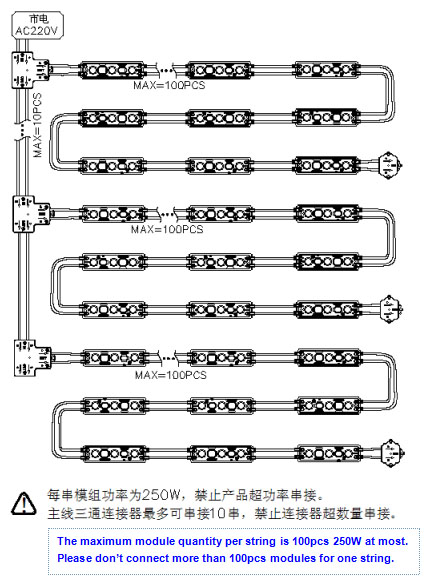

Wiring Diagram:

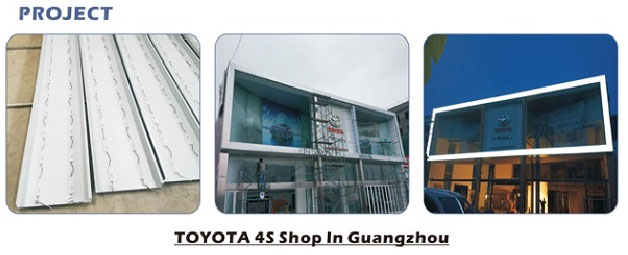

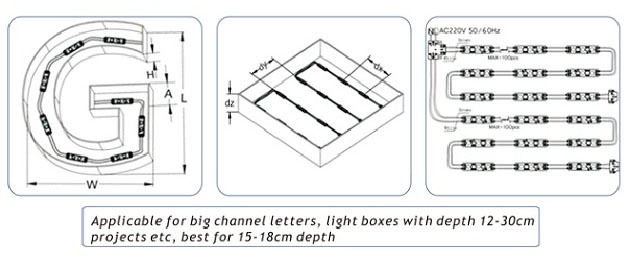

Applications:

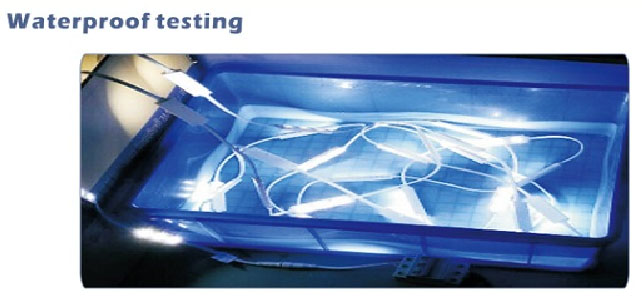

IP67 Waterproof Rate:

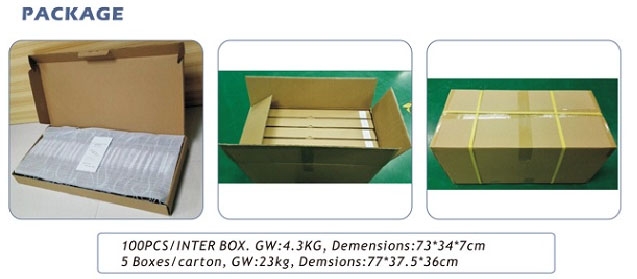

Packaging:
