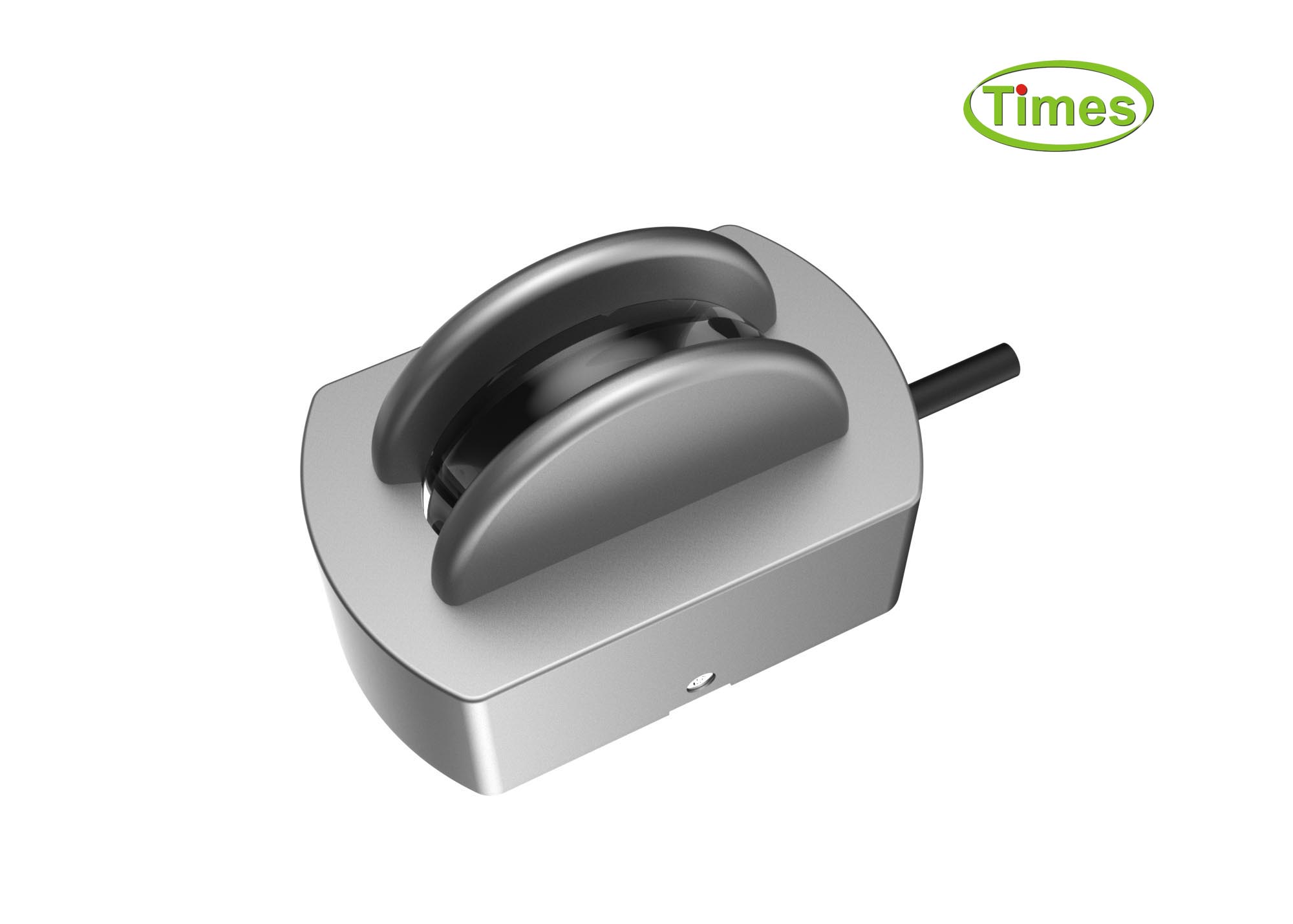

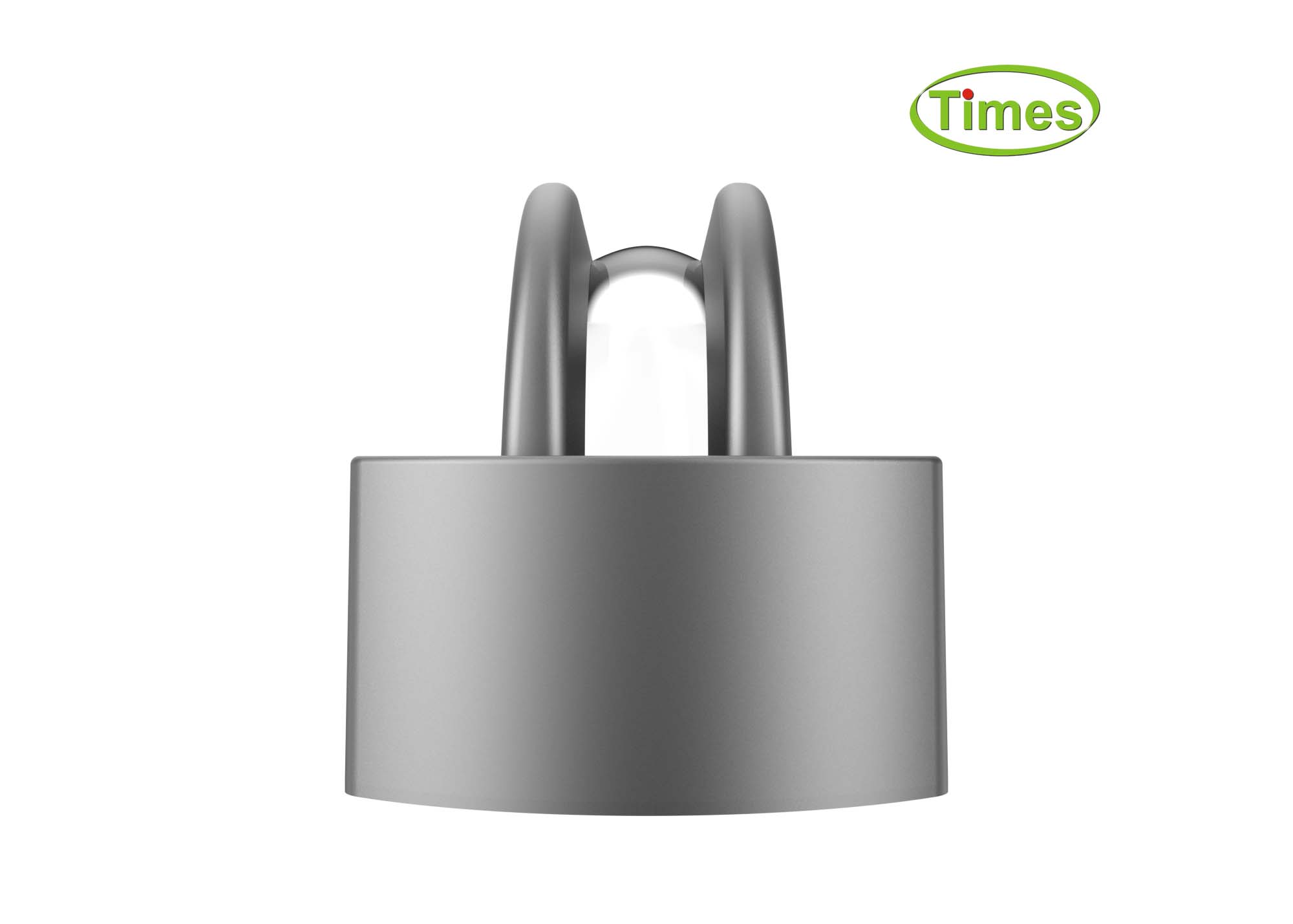

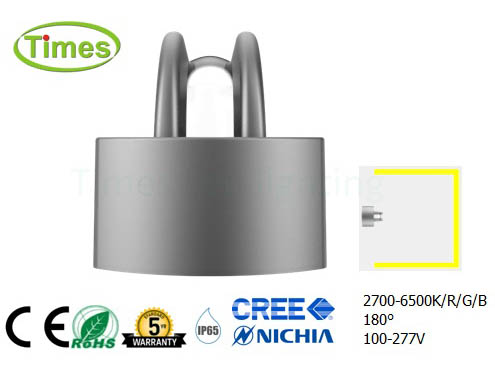

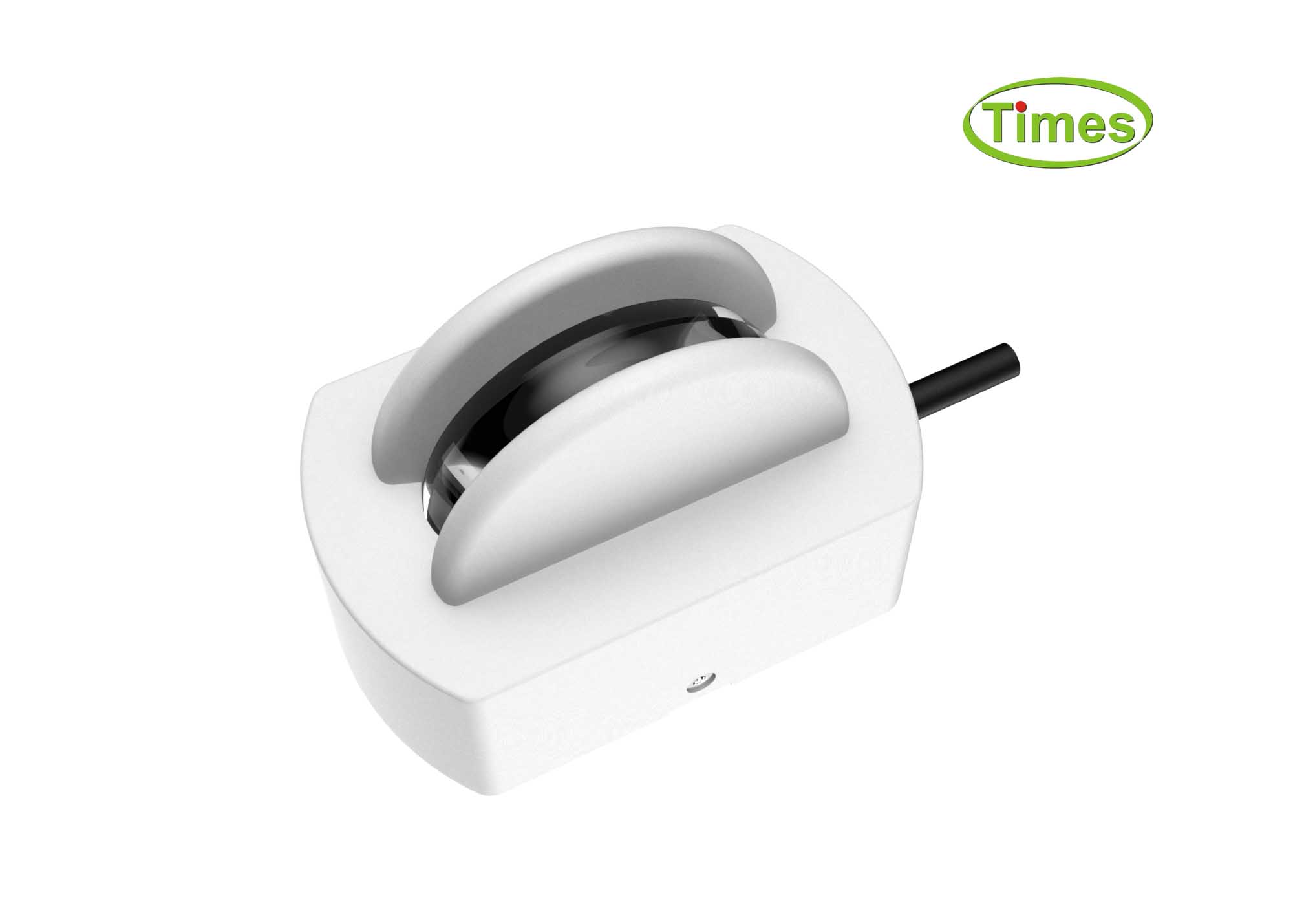

I-CORE 180FIND Series 180° LED Window Lamp
(180 degrees Beam Angle, Surface Mounted Installation)
LED window light is the ideal lighting supply to help you achieve the latest graphic lighting.
It is the new decorative lighting trend that will create a 3D light-blade like effect, the light will adopt to the frame shape of applied location perfectly, emphasizes each curve and angle, vector surfaces and highlight the texture to the application areas, no dead spot left.
1.Specifications:
|
Item NO. |
TS-180-CREE/NICHIA-5/7W |
|
Light Source |
CREE or NICHIA LED |
|
Beam Angle |
180 degrees |
|
Color |
White, Red, Green, Blue |
|
Input Voltage(V) |
AC100-277V 50-60Hz |
|
Rated Power(W) |
5W or 7W |
|
CCT |
2700-6500K (White) |
|
IP Rate |
IP65 |
|
CRI (Ra>) |
80 |
|
Housing Color |
White, Black or Silver |
|
Working Temperature(℃) |
-20 - +45 |
|
Lifespan (Hour) |
>50,000 |
|
Dimensions(mm) |
L92xW72xH87mm |
|
Fixture Weight |
0.6kgs |
|
Brand Name |
TIMES |
|
Housing Material |
Aluminum Alloy |
|
Installation |
Surface Mounted |
|
Warranty Period |
5 Years |
|
Package |
27pcs/Carton |
|
Carton Size |
405x330x335mm, 18.6kgs/CTN |
Main Specs:
1. Light Source: CREE or NICHIA LED
2. Color: PW, WW, Red, Green, Blue
3. Beam Angle: 180 degrees
4. Power: 5W or 7W
5. Suitable for Hotel, Corridor, Windowsill, Luxurious Villa, Passage etc.
2.Product Features:
- Private moulding and unique structure design
- High-strength aluminum alloy and optical PC lens with 180° optical design
- New decorative lighting that can create a 3D light-blade like effect
- CREE or NICHIA Top quality LEDs, 5W or 7W power
- Surface Mounted Easy Installation
- Different colors for choice, white, red, green, blue
- Housing color: black, white or silver

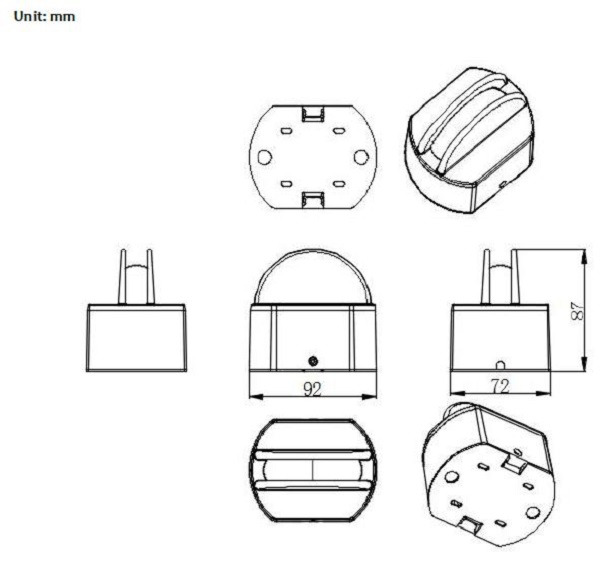

3. Dimensions:

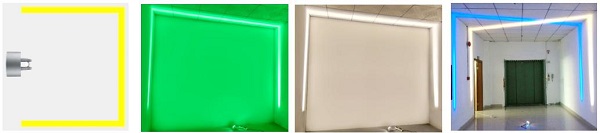

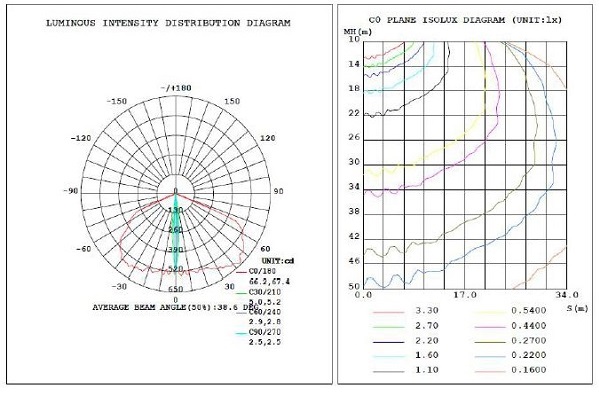

4. Light Distribution:

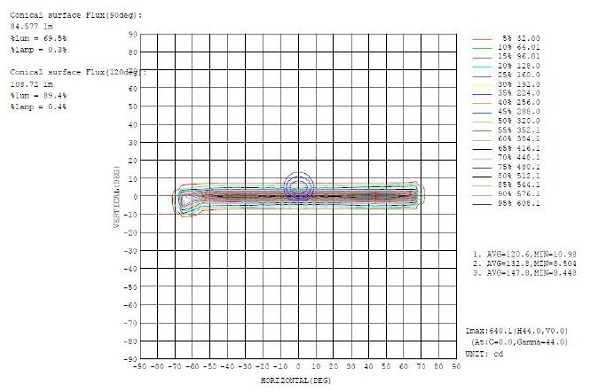

5. Test Data:

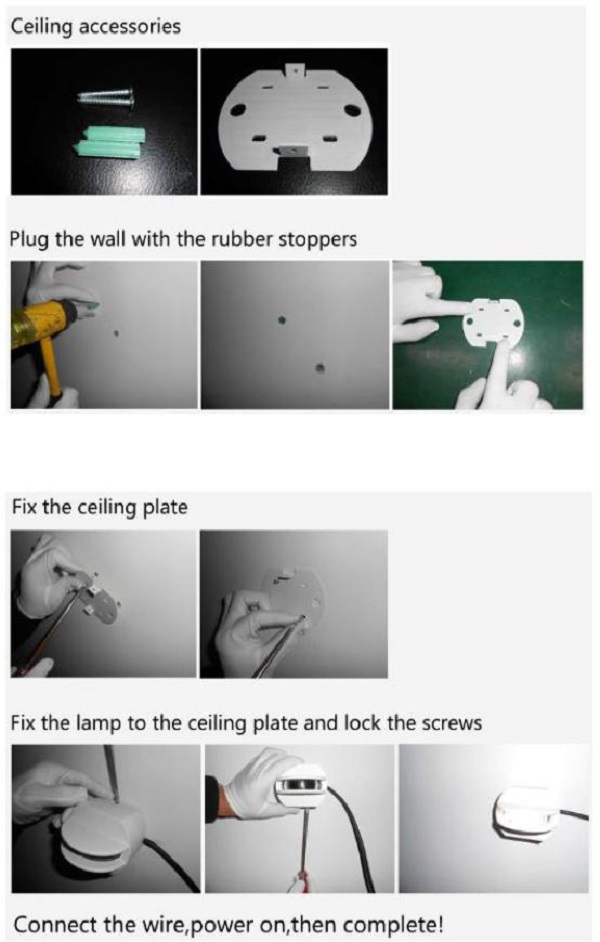

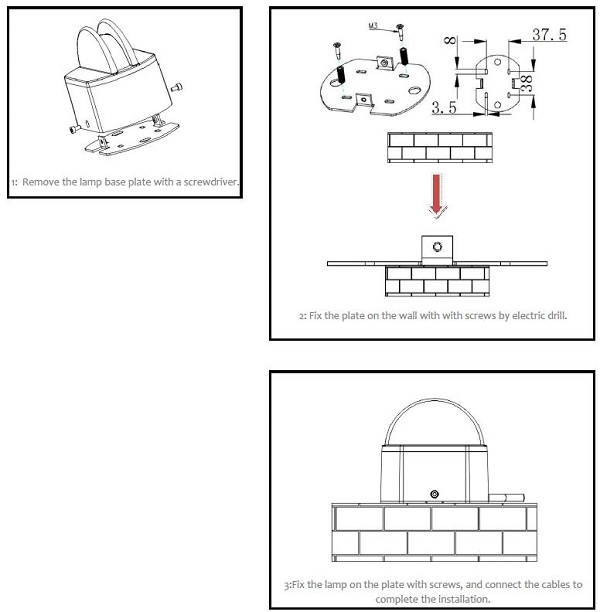

6. Surface Mounted Installation:
Detailed Instructions -

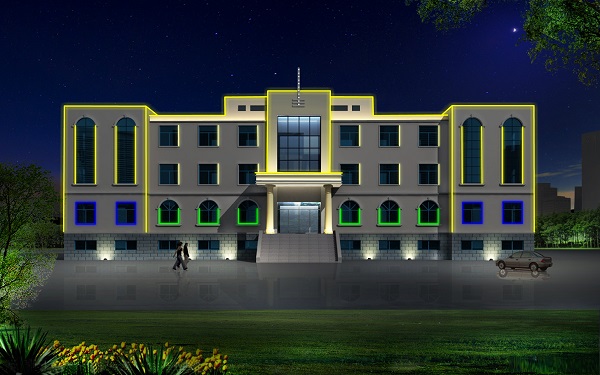

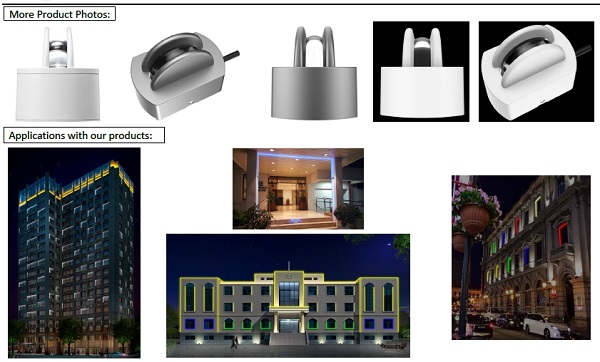

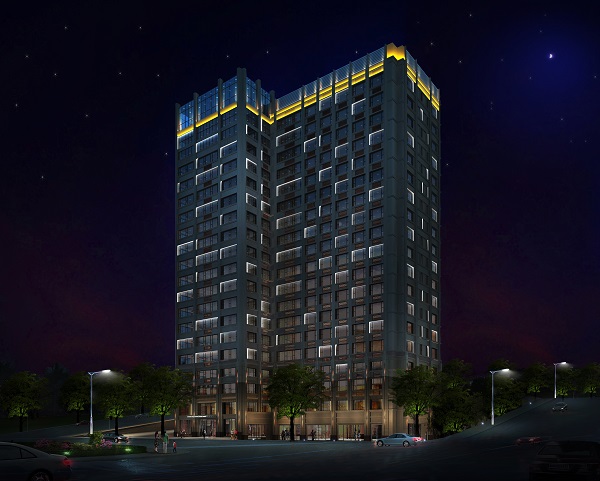

7.Applications:
Suitable for Hotel, Corridor, Windowsill, Luxurious Villa, Passage Use, Replace the LED Flood Light. Design for High-end Projects.

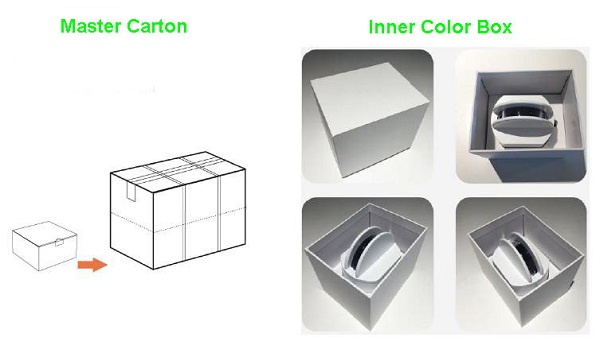

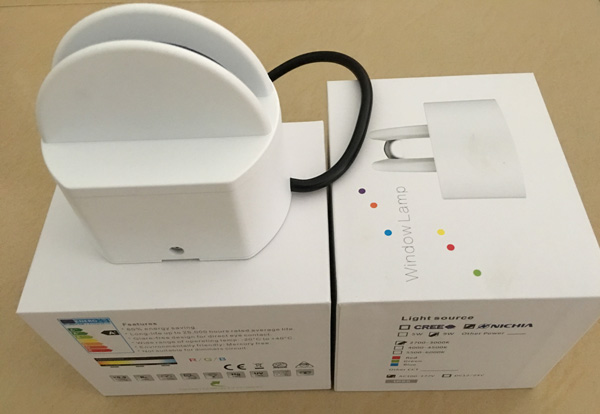

8. Package:
- 27pcs/CTN
- 18.6Kg/CTN
- Dimensions: 405*330*335mm/CTN
|
