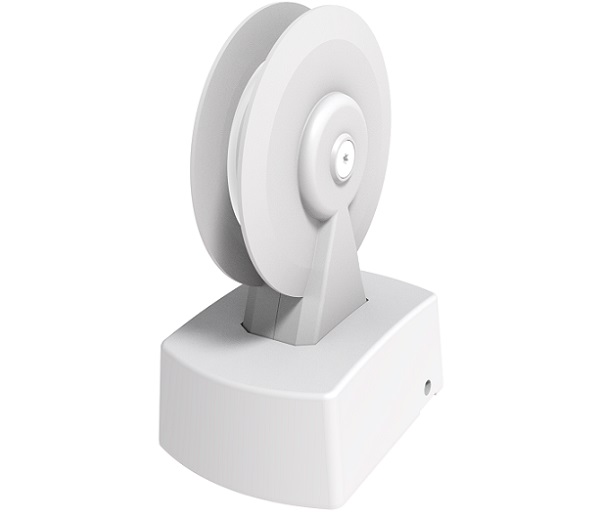

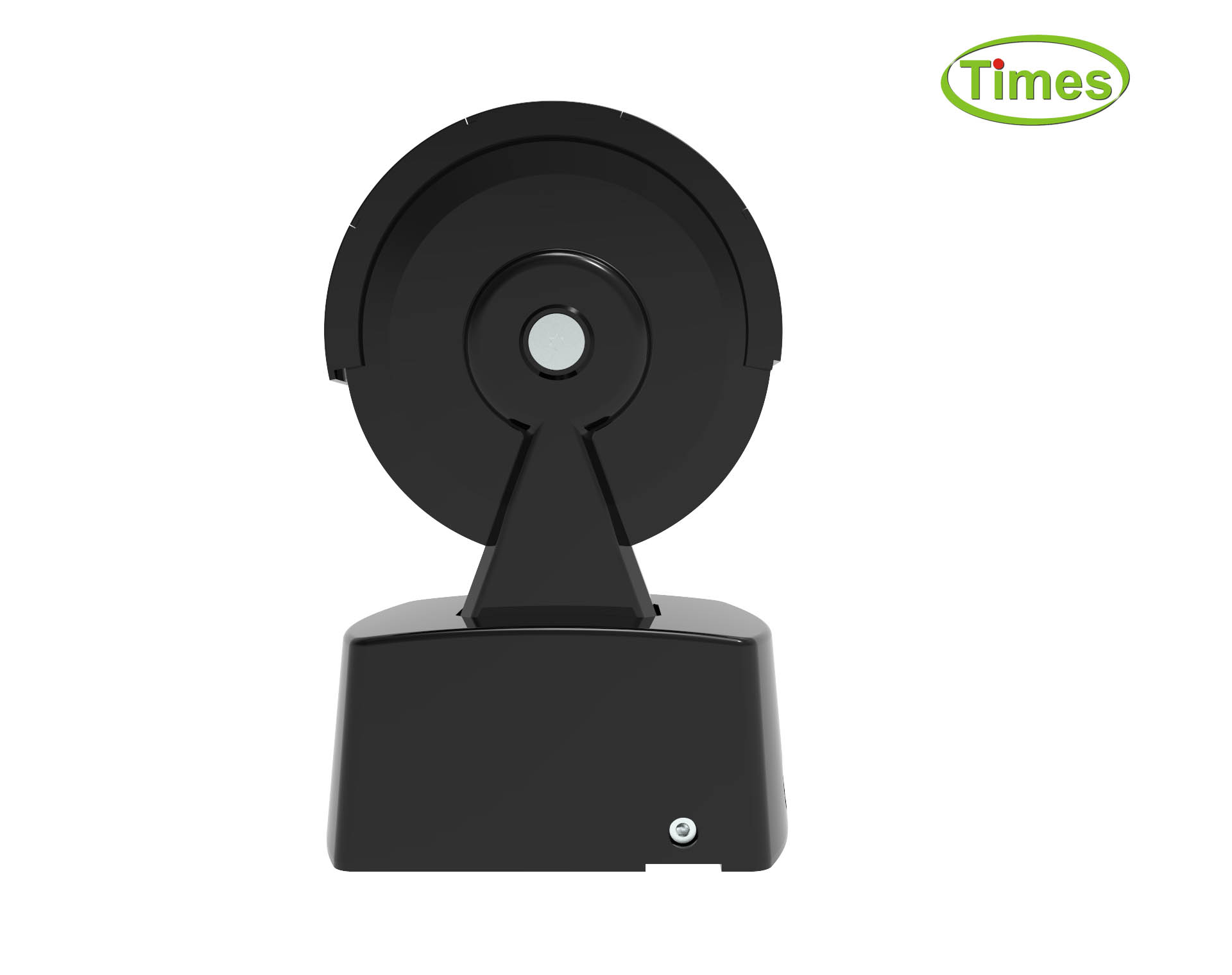

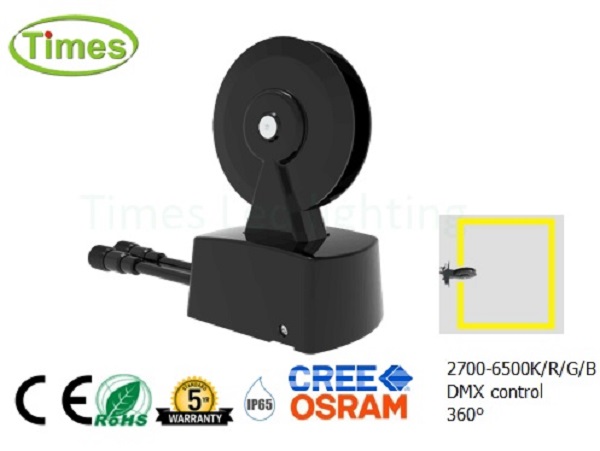

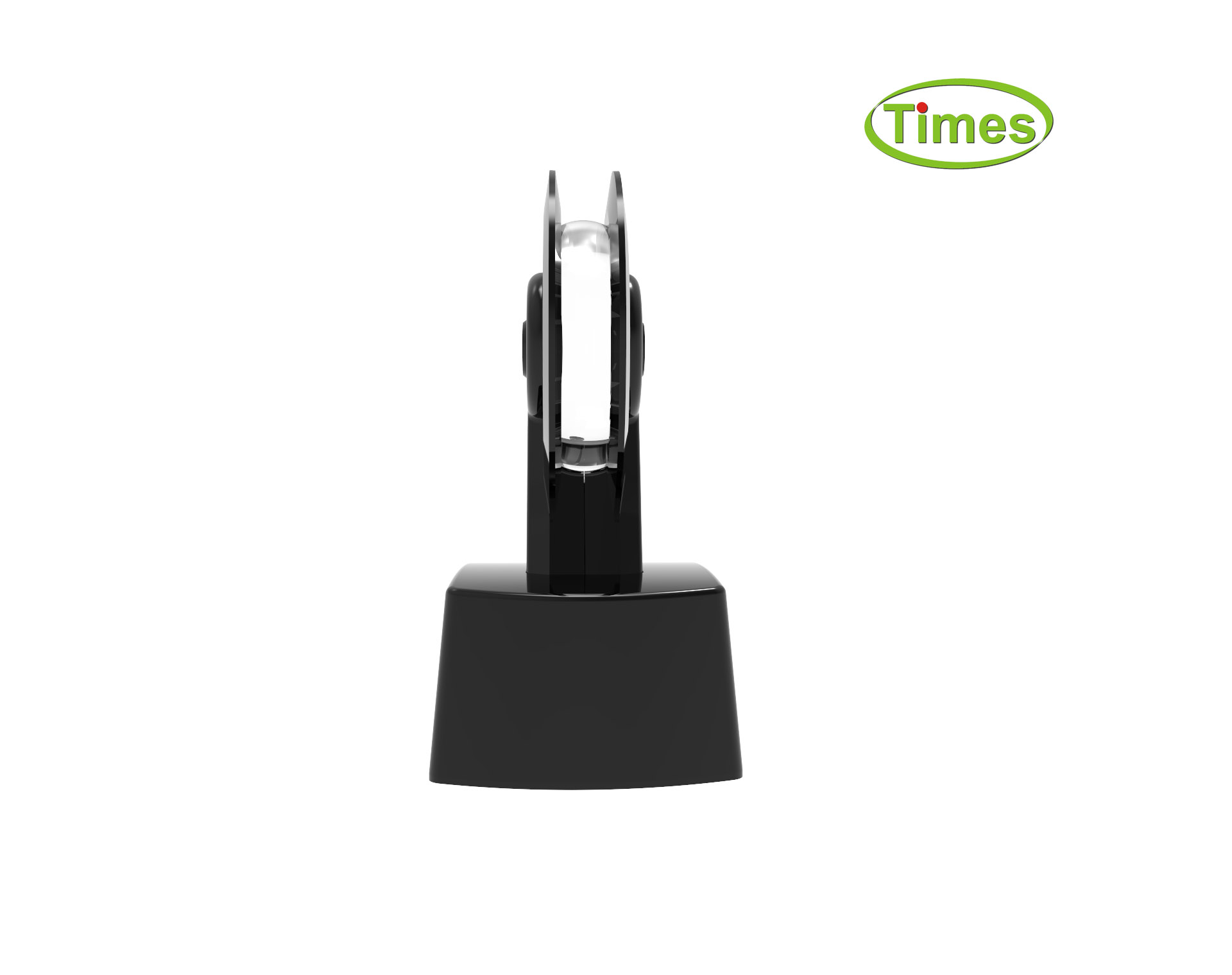

H-CORE 360FIND Series 360° LED Window Lamp - Surface Mounted Type
Model. : TS-360-CREE-5/9W-MT
Introduction&Application :
LED window light is the ideal lighting supply to help you achieve the latest graphic lighting. It is the new decorative lighting trend that will create a 3D light-blade like effect...

Large image

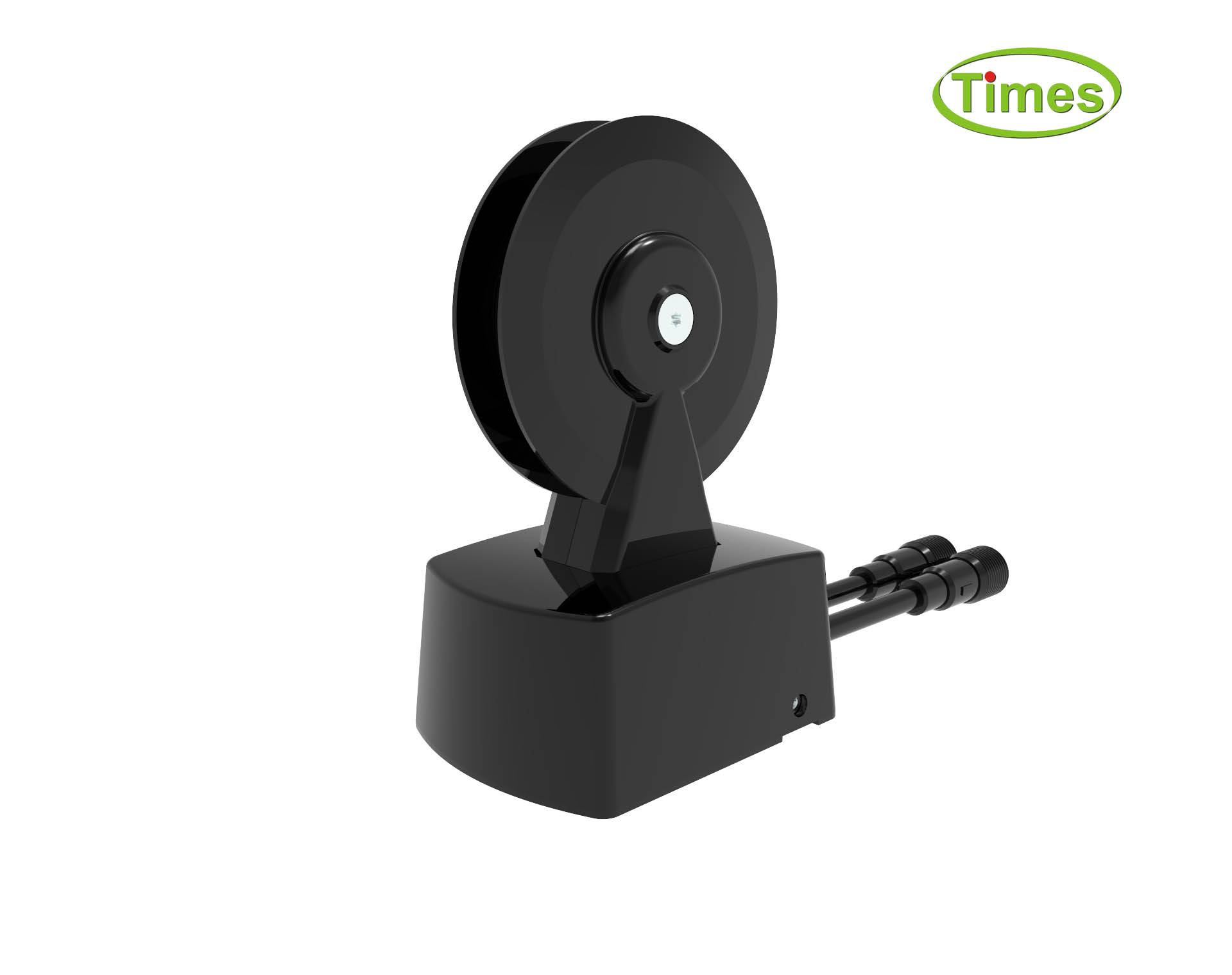

H-CORE 360FIND Series 360° LED Window Lamp - Surface Mounted Type
(360 degrees Beam Angle, Single or RGB/RGBW Color)

LED window light is the ideal lighting supply to help you achieve the latest graphic lighting.
It is the new decorative lighting trend that will create a 3D light-blade like effect,  the light will adopt to the frame shape of applied location perfectly, emphasizes each curve and  angle, vector surfaces and highlight the texture to the application areas, no dead spot left.

1.Specifications:

Item NO.
TS-360-CREE-5/9W-MT-W/RGB
Light Source
CREE or OSRAM LED
Beam Angle
360 degrees
Color
White, Red, Green, Blue, RGB, RGBW
Input Voltage(V)
AC100-277V for Single Color;
DC24V for RGB or RGBW
Rated Power(W)
5W or 9W
CCT
2700-6500K (White); RGB/RGBW
IP Rate
IP65
CRI (Ra>)
80 (White Color)
Housing Color
White, Black or Silver
Working Temperature(℃)
-20 - +45
Lifespan (Hour)
>50,000
Dimensions(mm)
L102.5xW75xH153.5mm
Fixture Weight
0.9kg
Brand Name
TIMES
Housing Material
Aluminum Alloy
Installation
Surface Mounted Type
Warranty Period
5 Years
Package
24pcs/Carton
Carton Size
445x400x500mm, 22.6kgs/CTN


Main Specs:
1. Light Source: CREE or OSRAM LED
2. Color: PW, WW, Red, Green, Blue, RGB, RGBW
3. Beam Angle: 360 degrees
4. Power: 5W or 9W
5. Input Voltage: AC100-277V for single color; DC24V for RGB/RGBW;
6. DMX Compatible
7. Suitable for Hotel, Corridor, Windowsill, Luxurious Villa, Passage etc.



2.Product Features:

-Private moulding and unique structure design
-High-strength aluminum alloy and optical lens with 360°design
-New decorative lighting that can create a 3D light-blade like effect
-CREE or OSRAM Top quality LEDs, 5W or 9W power

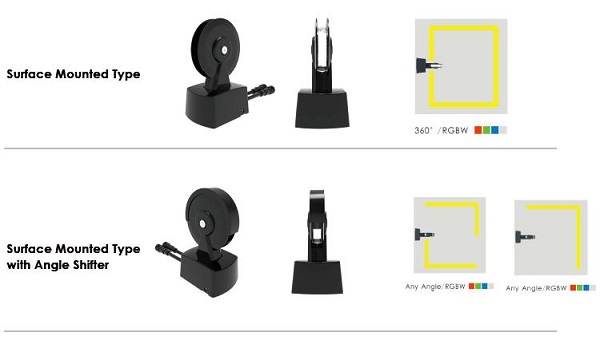

-Surface Mounted Easy Installation
-Different LED colors for choice, white, red, green, blue, RGB or RGBW
-Housing color: black, white or silver
-Angle-shifter available, to get any angle freely

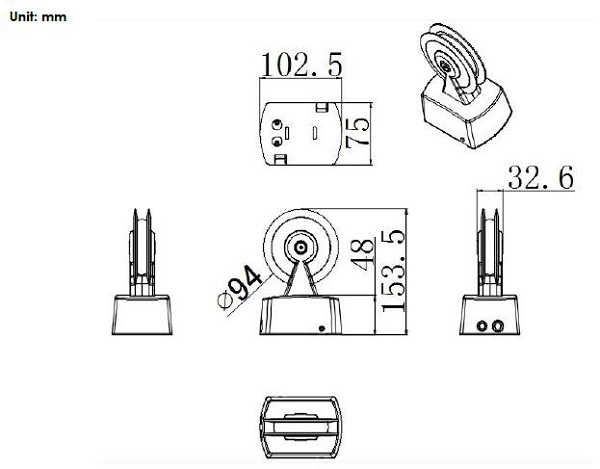

3. Dimensions:

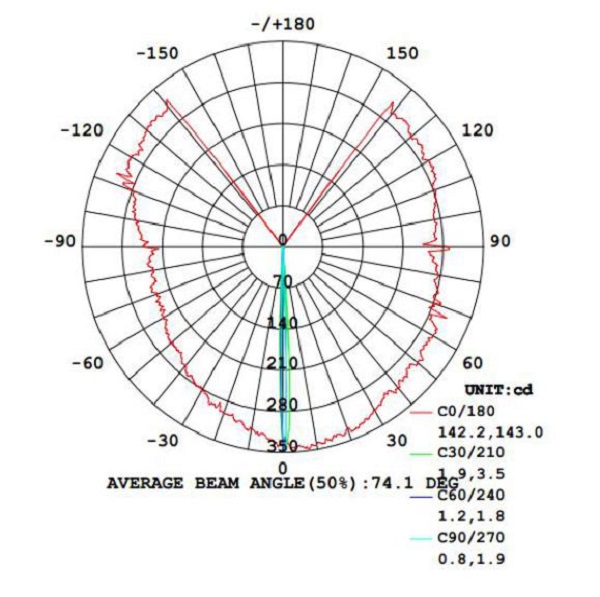

4. Light Distribution:


5. Test Data:

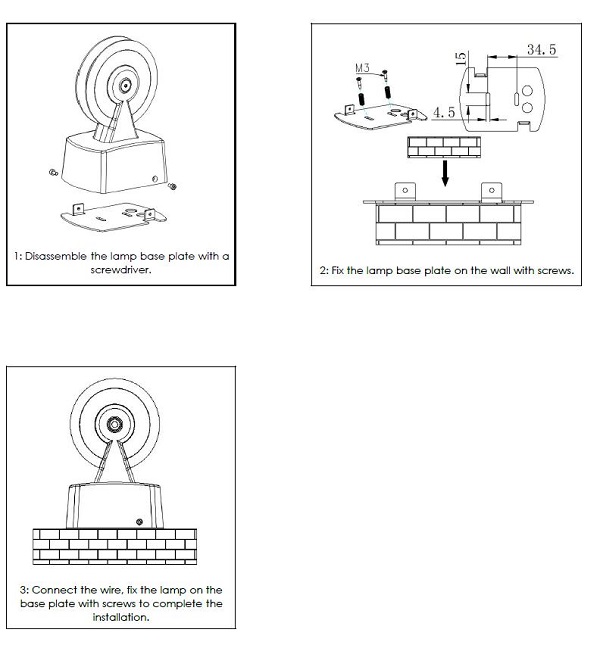

6. Surface Mounted Installation:

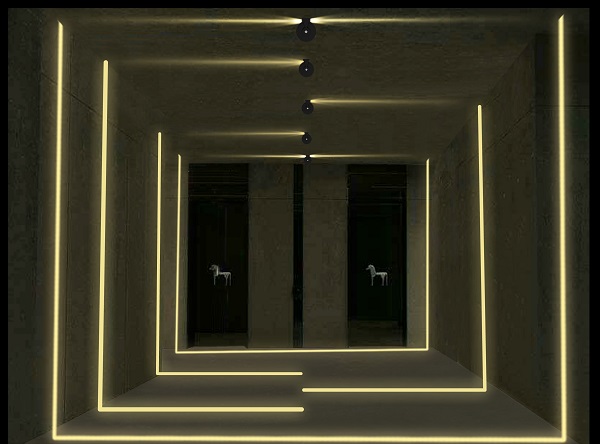

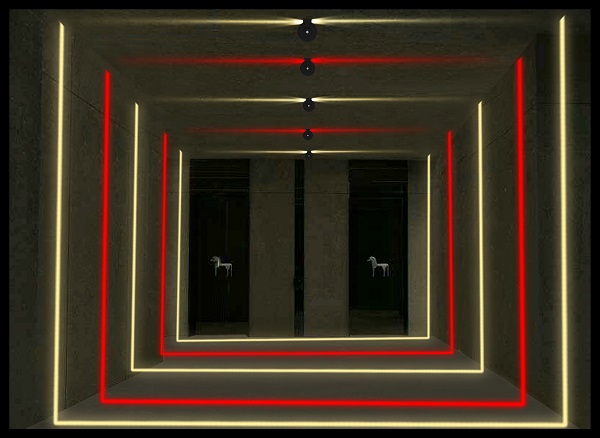

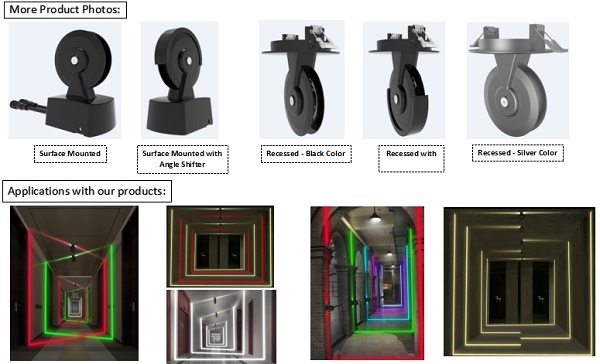

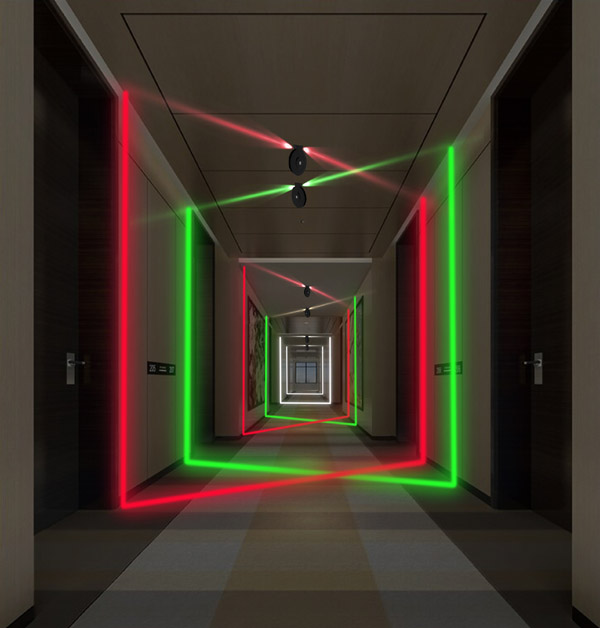

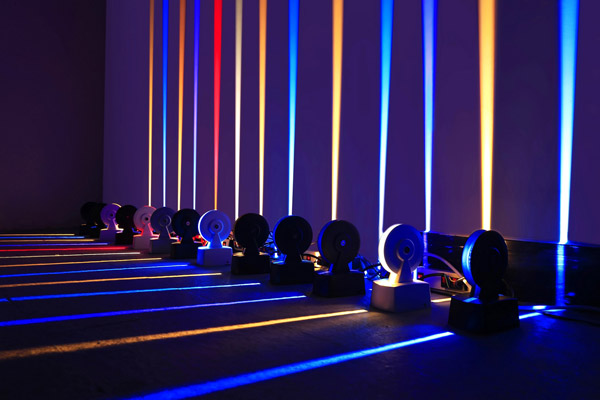

7.Applications:
Suitable for Hotel, Corridor, Windowsill, Luxurious Villa, Passage Use, Replace the LED Flood Light. Design for High-end Projects.





8. Package:
  • 24pcs/CTN
  • 22.6Kg/CTN
  • Dimension: 445*400*500mm/CTN
