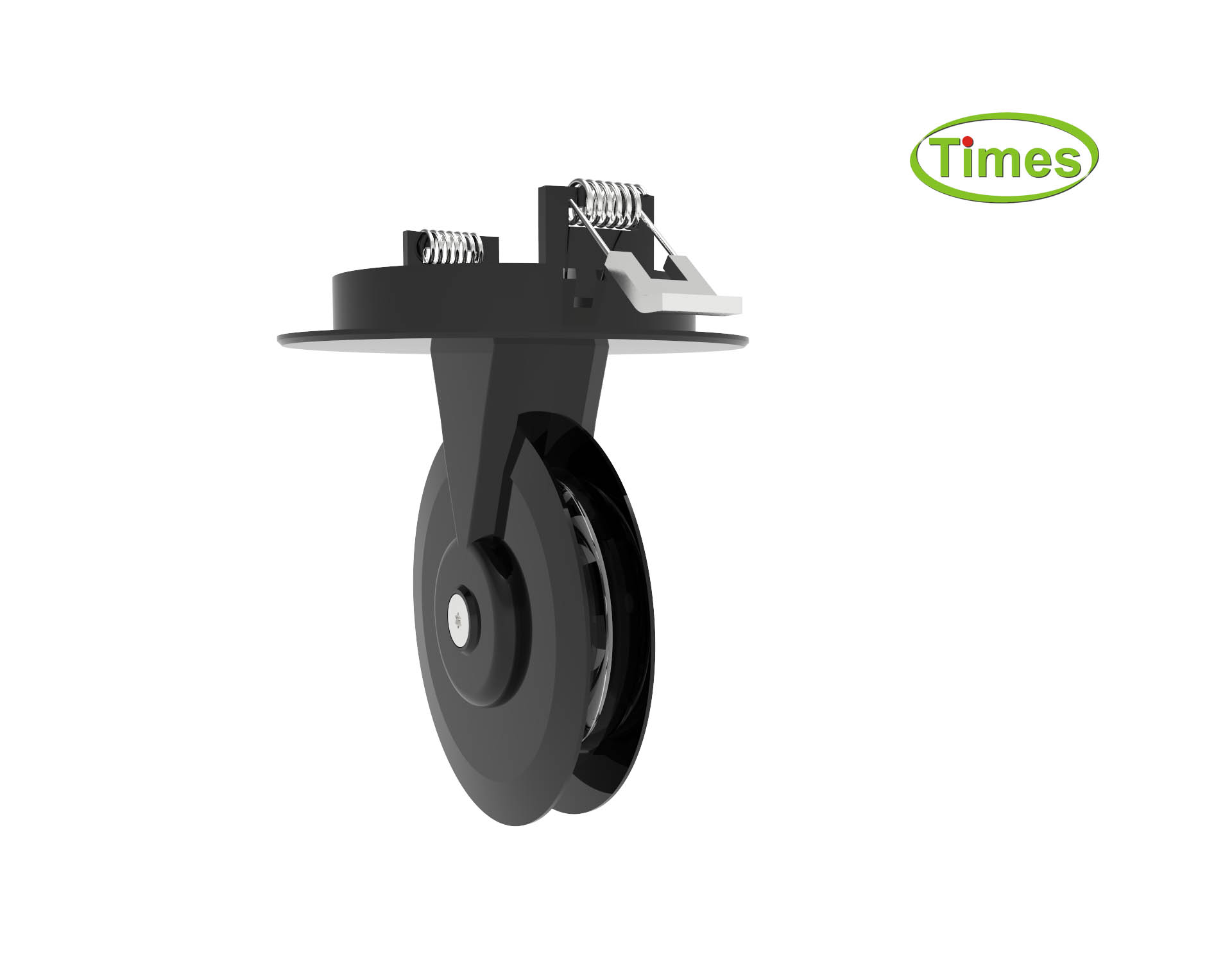

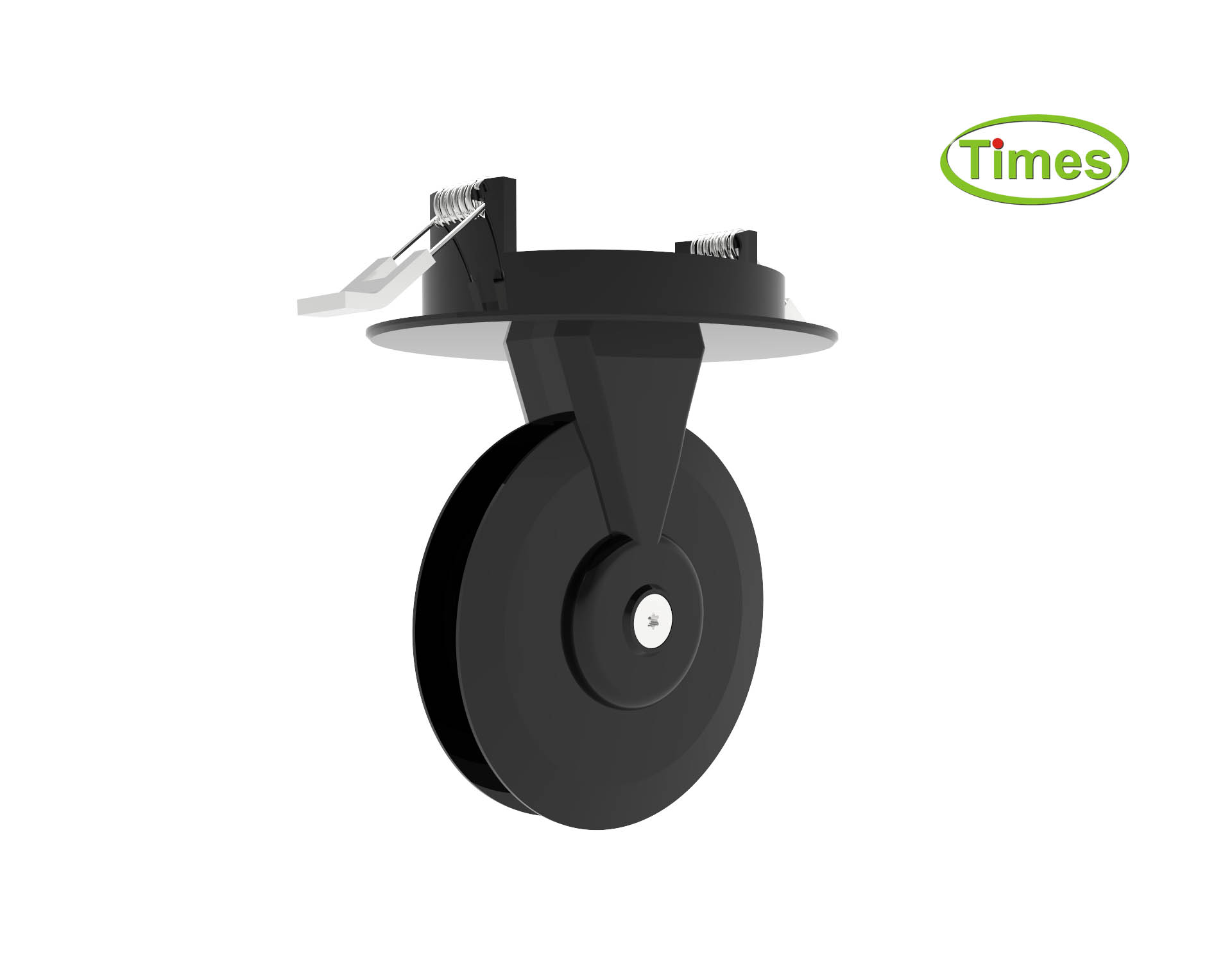

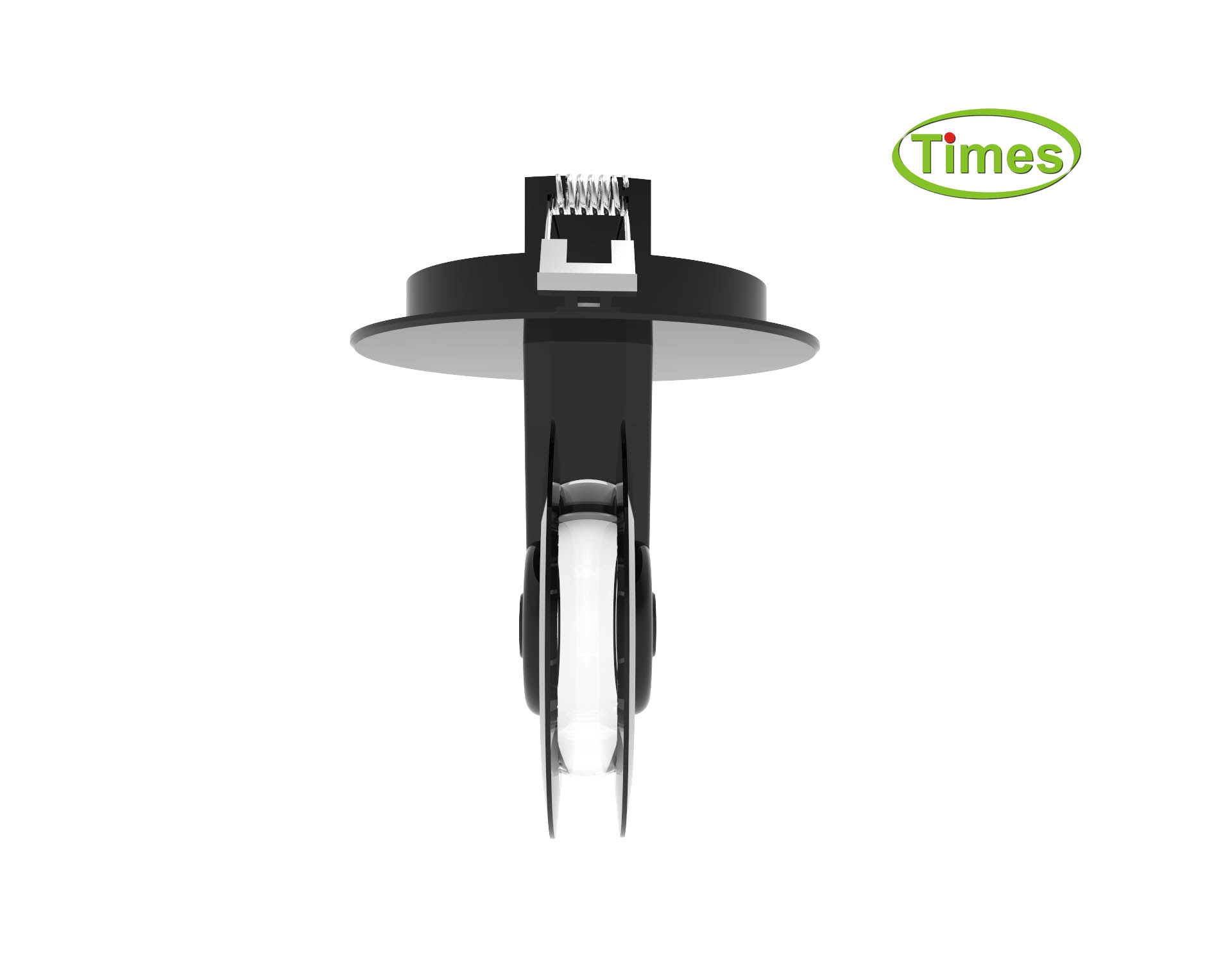

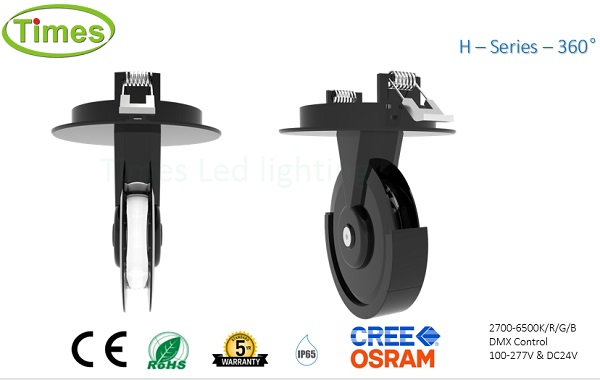

H-CORE 360FIND Series 360° LED Window Lamp - Recessed Type
(360 degrees Beam Angle, Single or RGB/RGBW Color)
LED window light is the ideal lighting supply to help you achieve the latest graphic lighting.
It is the new decorative lighting trend that will create a 3D light-blade like effect,
the light will adpt to the frame shape of applied location perfectly, emphasizes each curve
and angle, vector surfaces and highlight the texture to the application areas, no dead spot left.
1.Specifications:
|
Item NO. |
TS-360-CREE-5/9W-RE-W/RGB |
|
Light Source |
CREE or OSRAM LED |
|
Beam Angle |
360 degrees |
|
Color |
White, Red, Green, Blue, RGB, RGBW |
|
Input Voltage(V) |
AC100-277V for Single Color;
DC24V for RGB or RGBW |
|
Rated Power(W) |
5W or 9W |
|
CCT |
2700-6500K (White); RGB/RGBW |
|
IP Rate |
IP65 |
|
CRI (Ra>) |
80 (White Color) |
|
Housing Color |
White, Black or Silver |
|
Working Temperature(℃) |
-20 - +45 |
|
Lifespan (Hour) |
>50,000 |
|
Dimensions(mm) |
L106xW32.6xH140.5mm |
|
Fixture Weight |
0.9kg |
|
Brand Name |
TIMES |
|
Housing Material |
Aluminum Alloy |
|
Installation |
Recessed Type |
|
Warranty Period |
5 Years |
|
Package |
24pcs/Carton |
|
Carton Size |
445x400x500mm, 22.6kgs/CTN |
Main Spec:
1. Light Source: CREE or OSRAM LED
2. Color: PW, WW, Red, Green, Blue, RGB, RGBW
3. Beam Angle: 360 degrees
4. Power: 5W or 9W
5. Input Voltage: AC100-277V for single color; DC24V for RGB/RGBW;
6. DMX Compatible
7. Suitable for Hotel, Corridor, Windowsill, Luxurious Villa, Passage etc.
2.Product Features:
-Private moulding and unique structure design
-High-strength aluminum alloy and optical lens with 360°design
-New decorative lighting that can create a 3D light-blade like effect
-CREE or OSRAM Top quality LEDs, 5W or 9W power
-Recessed Easy Installation
-Different LED colors for choice, white, red, green, blue, RGB or RGBW
-Housing color: black, white or silver

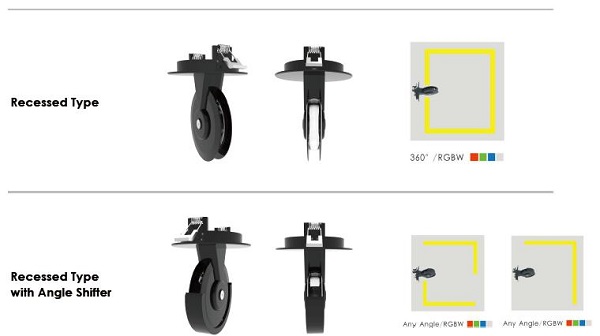

-Angle-shifter available, to get any angle freely

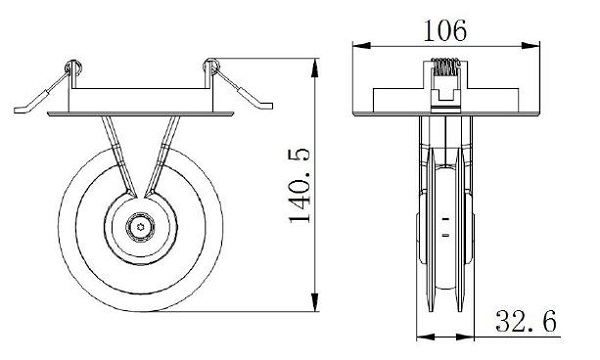

3. Dimensions:
Unit:mm

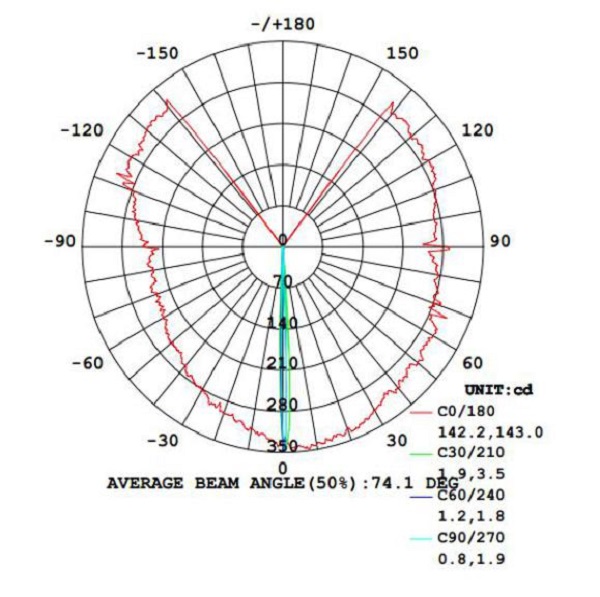

4. Light Distribution:
5. Test Data:

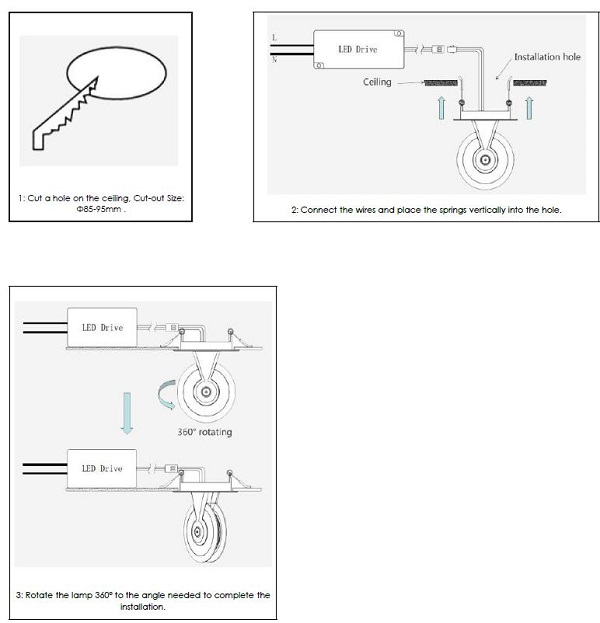

6. Recessed Installation:

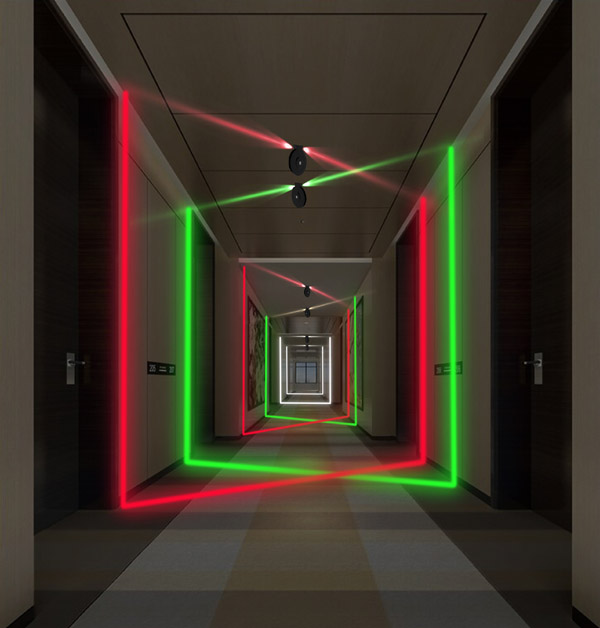

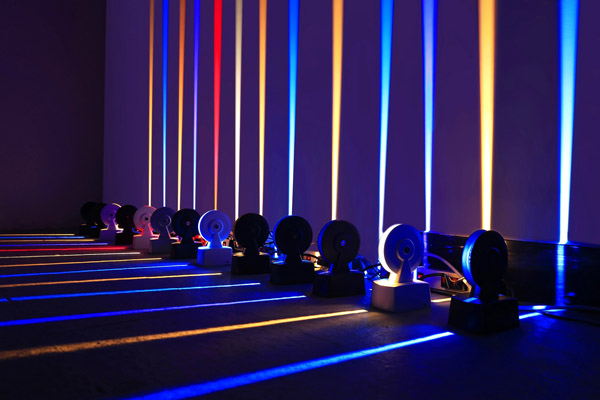

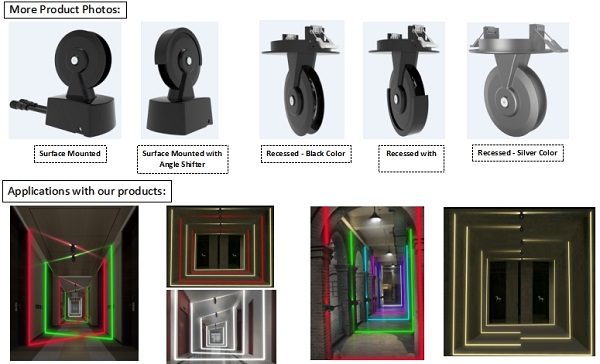

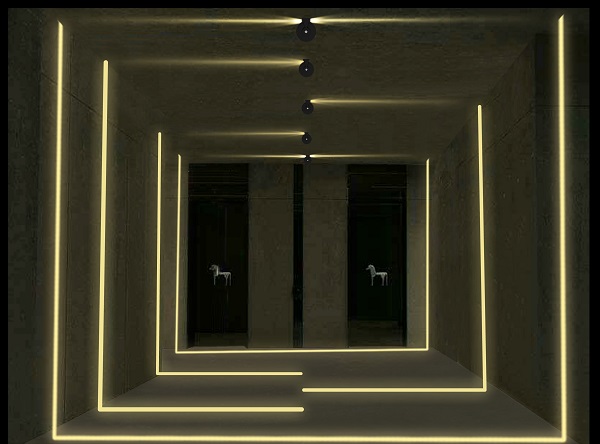

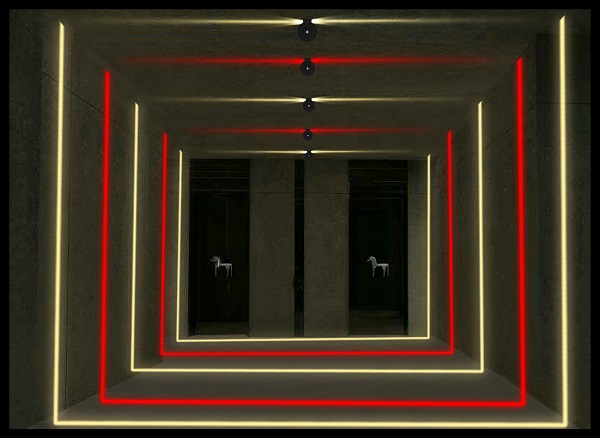

7.Applications:
Suitable for Hotel, Corridor, Windowsill, Luxurious Villa, Passage Use, Replace the LED Flood Light.
8. Package:
- 24pcs/CTN
- 22.6Kg/CTN
- Dimension: 445*400*500mm/CTN
|
