Round LED Wall Washer - Recessed Type
Model. : TS-RW-CREE/3535-5/7W
Introduction&Application :
Round LED Wall Washer is designed as the surface/plane lighting effect, which is with very beautiful, soft, even light performance. The installation is simple, the angle is perfect, the lighting effects in night is wonderful....

Large image

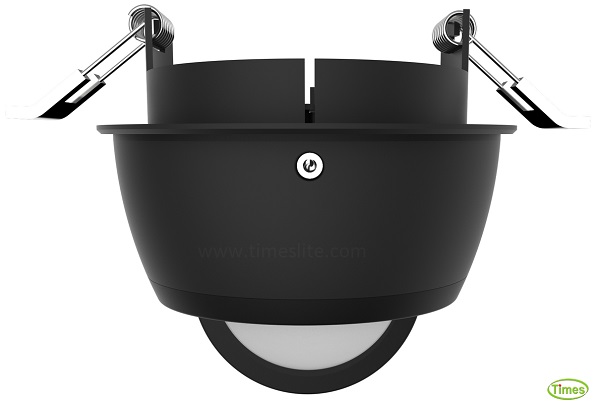

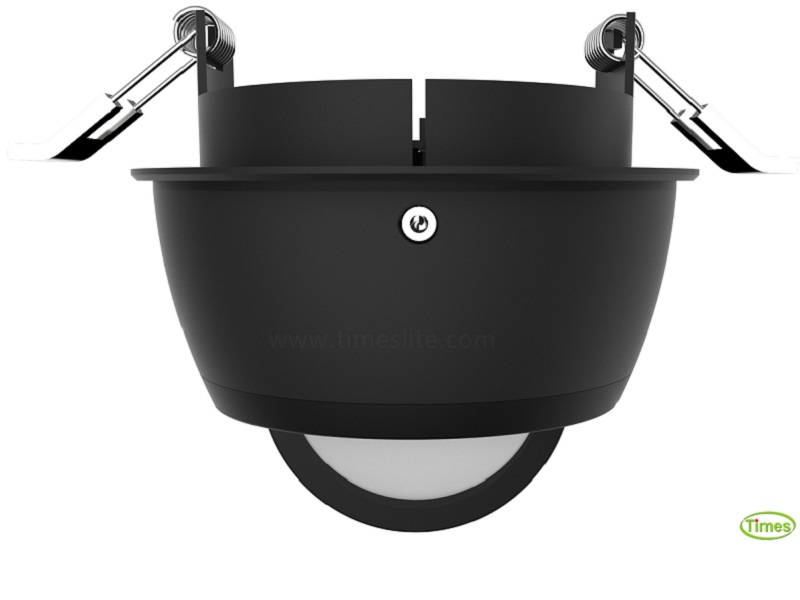

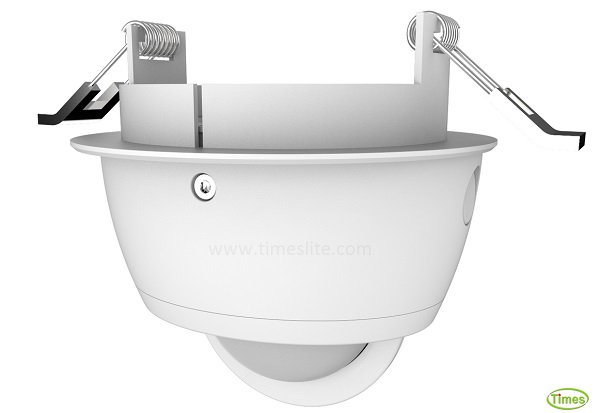

Round LED Wall Washer - Recessed Type
Single or RGB/RGBW Color

Round LED Wall Washer is designed as the surface/plane lighting effect, which is with very beautiful, soft, even light performance. The installation is simple, the angle is perfect, the lighting effects in night is wonderful.



1.Specifications:

Item NO.
TS-RW-CREE/3535-5/7W-RE
Light Source
CREE LED or SMD3535 Epistar LED
Beam Angle
100x20 degrees
Color
White, Red, Green, Blue, RGB, RGBW
Input Voltage(V)
AC100-277V for Single Color;
DC24V for RGB or RGBW
Rated Power(W)
5W or 7W
CCT
2700-6500K (White); RGB/RGBW
IP Rate
Indoor Use Only
CRI (Ra>)
80 (White Color)
Housing Color
White, Black
Working Temperature(℃)
-20 - +45
Lifespan (Hour)
>50,000
Dimensions(mm)
L106xW87.7xH106mm
Fixture Weight
0.8kg
Brand Name
TIMES
Housing Material
Aluminum Alloy
Installation
Recessed Type
Warranty Period
5 Years
Package
xxpcs/Carton
Carton Size
x  x   mm, xxkgs/CTN


2.Product Features:

-Private moulding and unique structure design
-High-strength aluminum alloy and optical lens with perfect angle
-Soft, even and beautiful lighting effects
-CREE or Epistar LEDs, 5W or 7W power
-Recessed Easy Installation, Indoor Use
-Different LED colors for choice, white, red, green, blue, RGB or RGBW
-Housing color: black, white

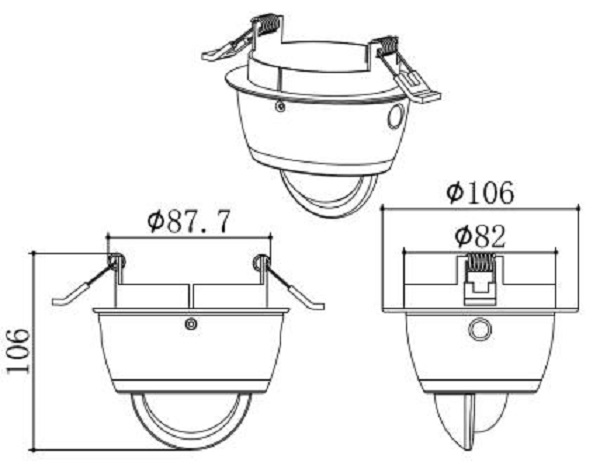

3. Dimensions:


    Unit: mm

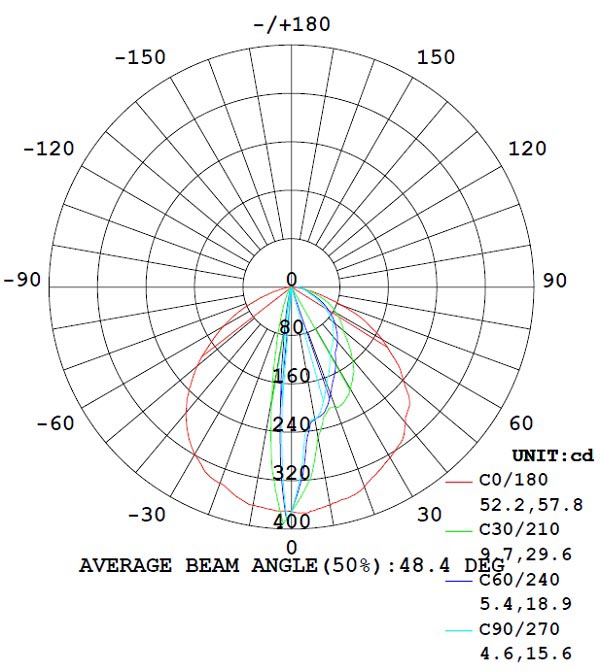

4. Light Distribution:

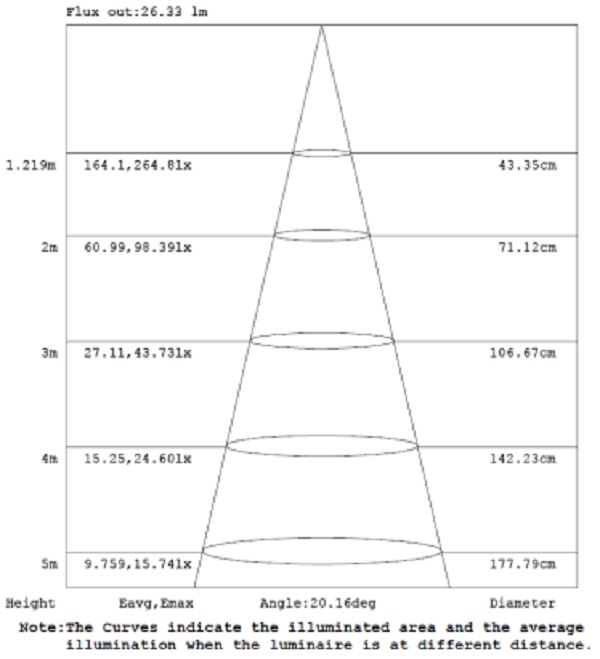

5. Test Data:

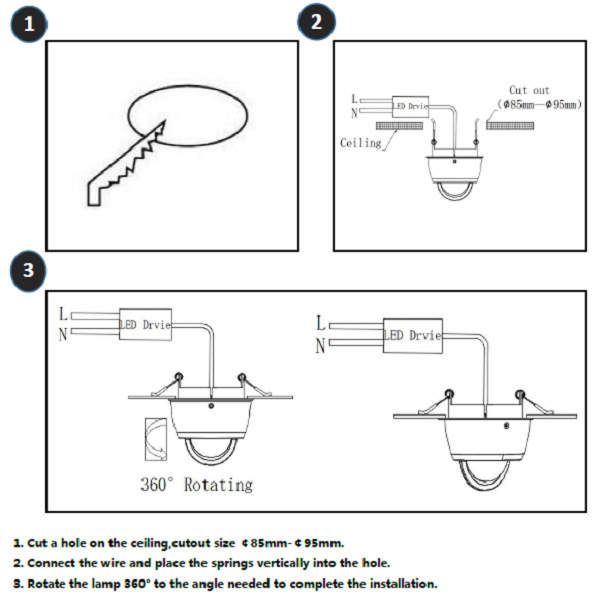

6. Surface Mounted Installation:

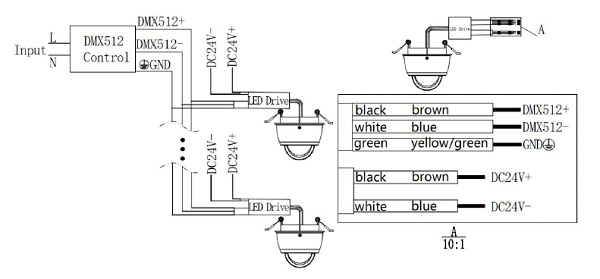

7. Wiring Diagram with DMX512 Controller:

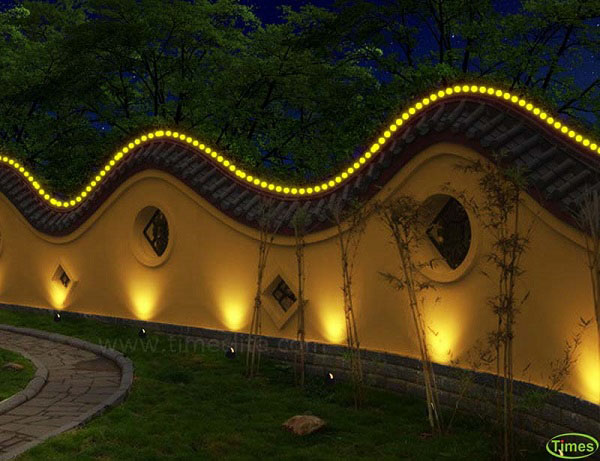

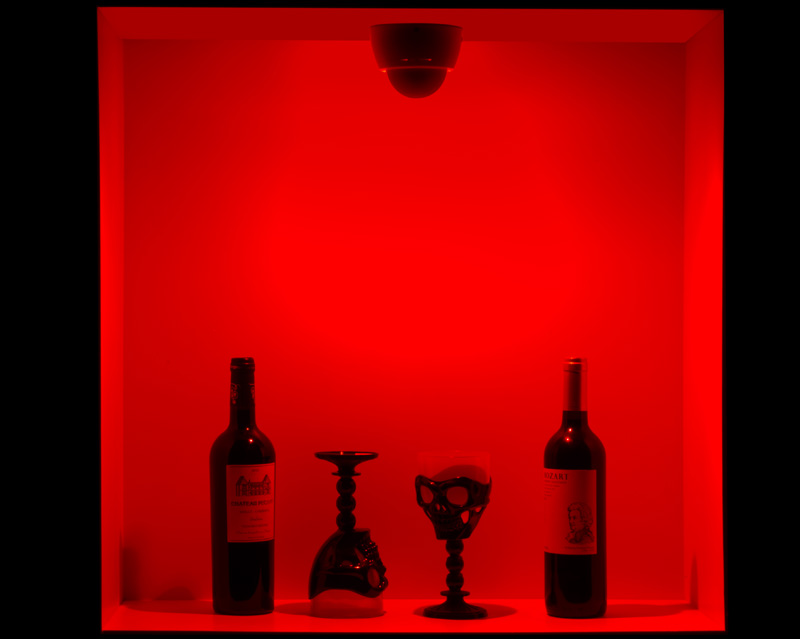

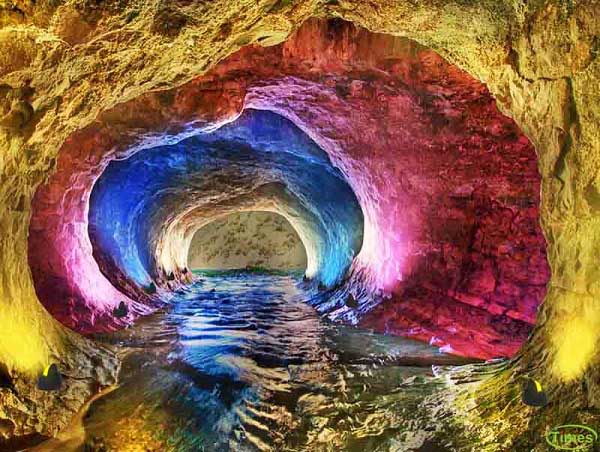

8.Applications:

Suitable for Walls, Aisles, Architecture, decorative objects, Luxurious Villa, Atmosphere etc., It’s with much better performance than the regular LED Flood Light.
