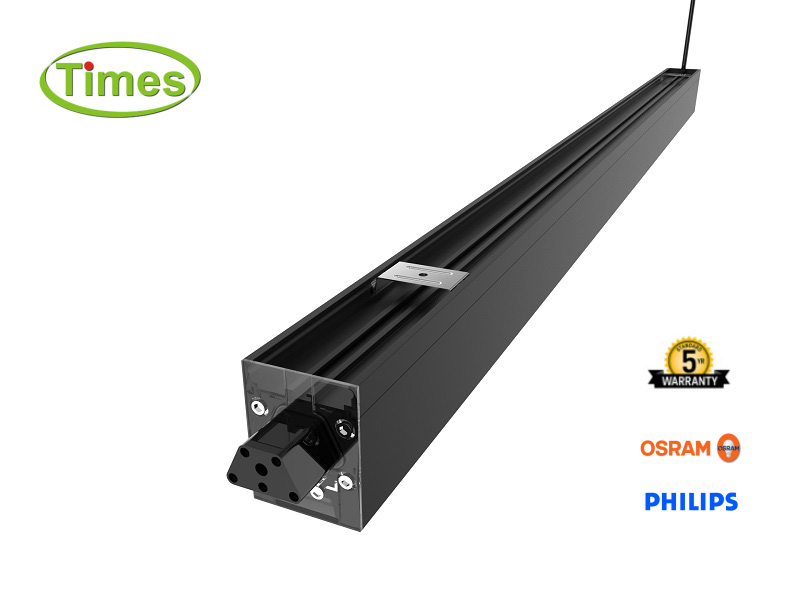

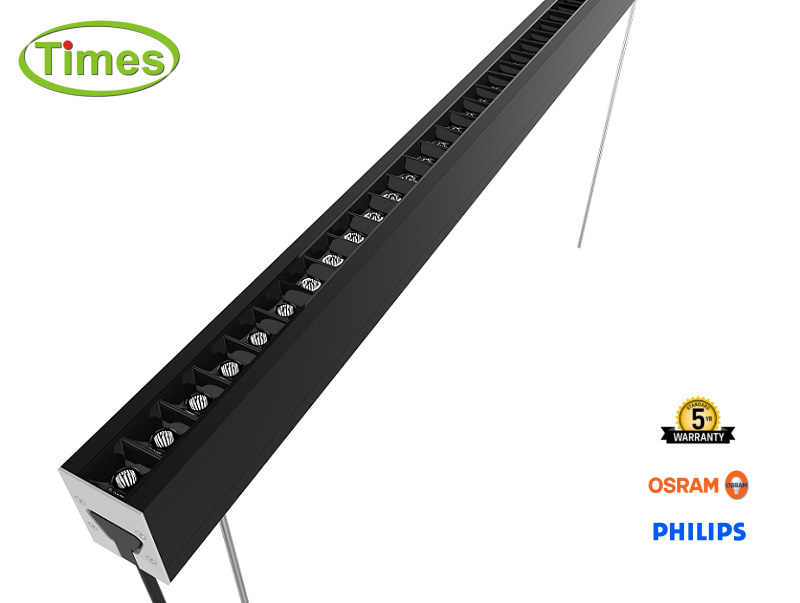

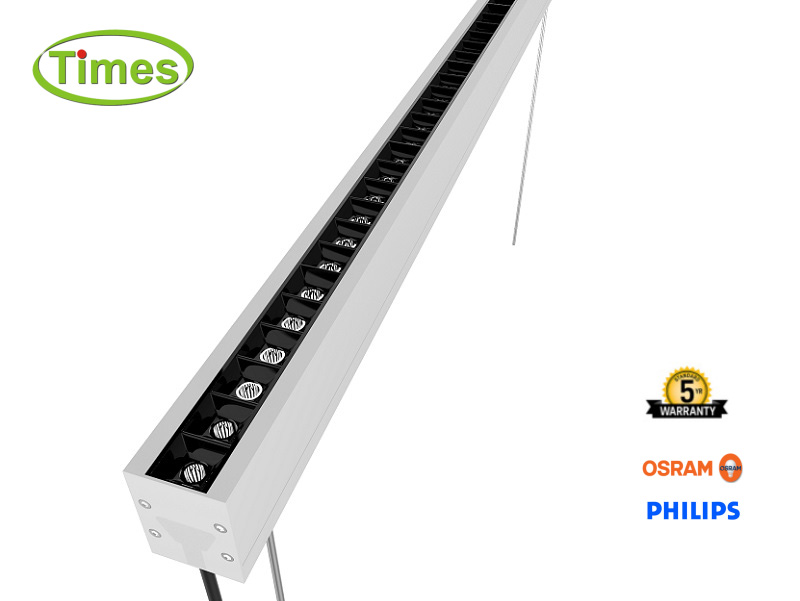

1.2M L823 Series Reflector LED Linear Light (UGR<10)
Osram LED + TUV Dirver + Reflector
1.Specifications:
|
Item NO. |
L823-12-40W |
|
Light Source |
Osram SMD3030 LED |
|
Driver |
CE, TUV Driver |
|
Lens |
Reflector |
|
Input Voltage(V) |
AC100-240V 50-60Hz |
|
Rated Power(W) |
40W |
|
Luminous Flux (lm) |
3200lm (UGR<10) |
|
Light Efficiency (lm/w) |
80lm/W with UGR<10 |
|
CRI (Ra>) |
80 |
|
Color Temperature (CCT) |
2700-6500K |
|
Working Temperature(℃) |
-20 - +45 |
|
Lifespan (Hour) |
>50,000 |
|
Dimensions(mm) |
L1149xW49.7xH54mm |
|
UGR |
UGR<10 |
|
Brand Name |
TIMES |
|
Housing Color |
Black & White |
|
Materials |
Aluminum Alloy |
|
Beam Angle |
12°, 34°, 48° |
|
Chip Brand |
Original Osram LED |
|
LM80 Tested |
YES |
2.Product Features:
-Private moulding and unique structure design
-Special Reflector design, different beam angles for different applications: 12°,34°,48°
-Seamless connection without any tool, easy connection and installation, save labor costs
-Surface Mounted & Suspending Installation
-Either continuous or discontinuous installation
-UGR<10, Anti-glare
-Non-dimmable/0-10V dimmable/DALI dimmable available
3. Structure:

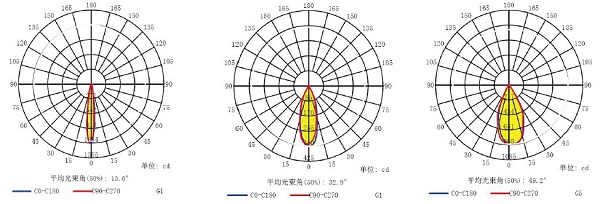

4. Different Lens for Different Light Distribution:
12° 34° 48°

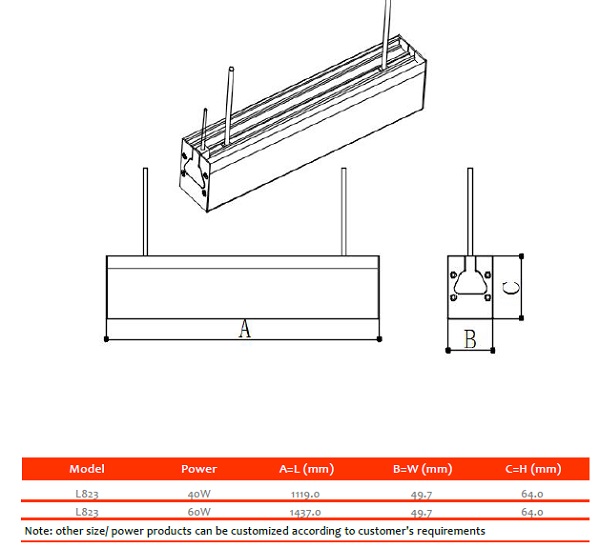

5. Dimensions:

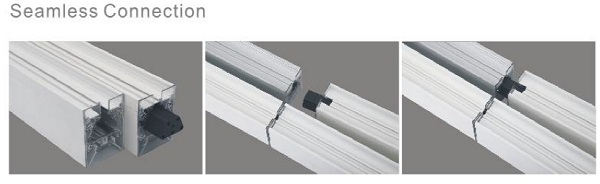

6. Continuous Seamless Connection:
7. Anti-glare, UGR<10

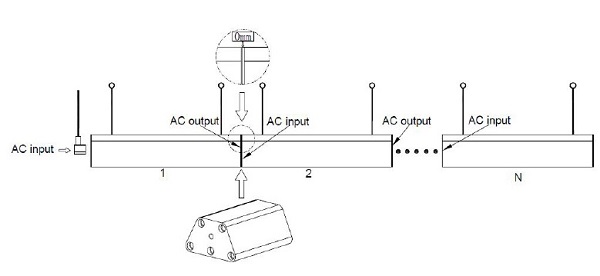

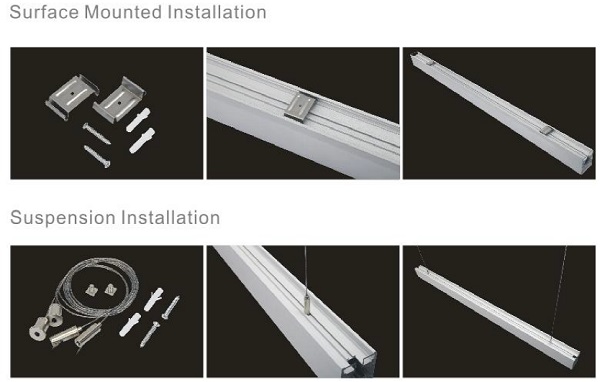

8. Installation:

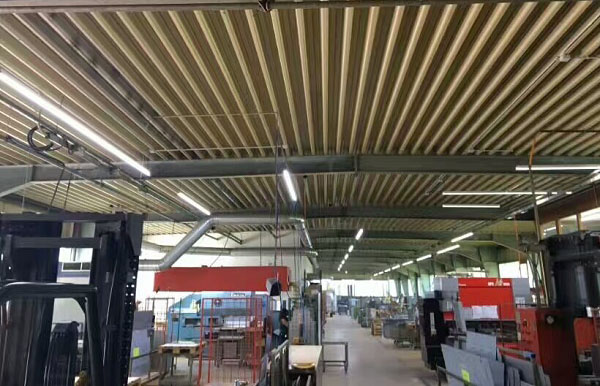

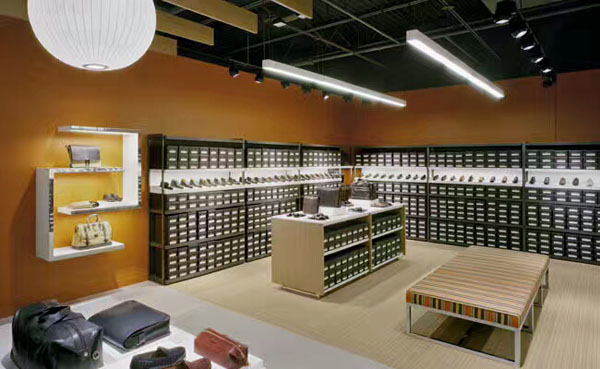

9. Applications:
Suitable for Warehouse, Office, Shopping Mall, Supermarket, Hotel, Storage Racks, Hospital, Library, Workshop, Car Parking Lots, Corridors and so on.
|
