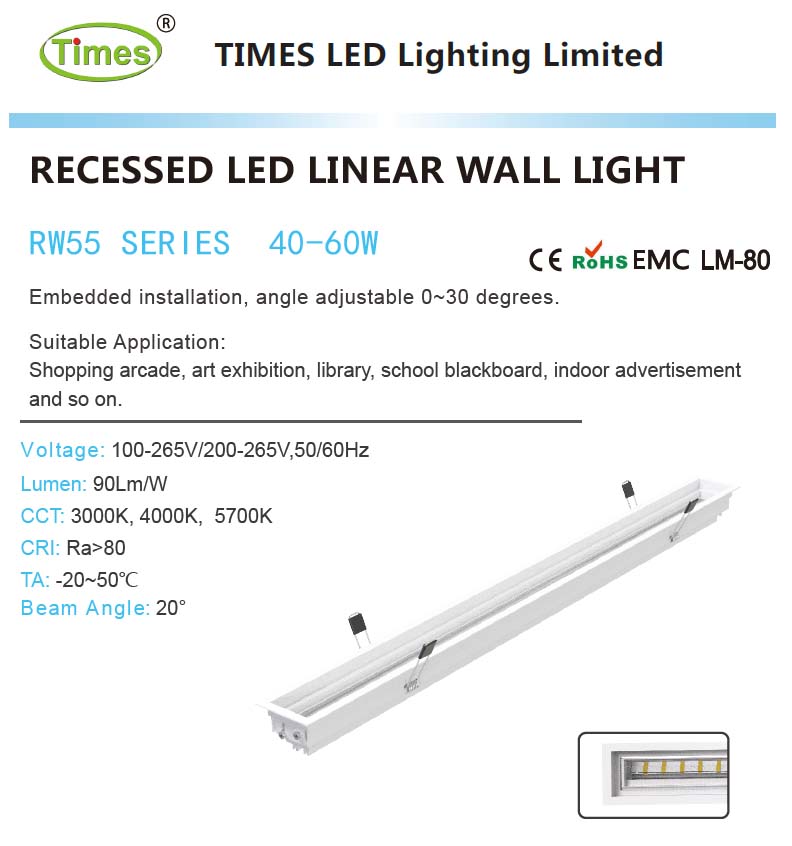

RW55 Series Recessed LED Linear Light (Lens Adjustable)
1.Specifications:
|
Item NO. |
RW55100-20D-50W |
|
Light Source |
SMD2835 LED |
|
Driver |
Internal Constant Current Driver |
|
Lens |
PMMA |
|
Input Voltage(V) |
AC220-240V 50-60Hz |
|
Rated Power(W) |
50W |
|
Luminous Flux (lm) |
4500lm |
|
Light Efficiency (lm/w) |
90lm/W |
|
CRI (Ra>) |
80 |
|
Color Temperature (CCT) |
3000K, 4000K, 5700K |
|
Working Temperature(℃) |
-20 - +50 |
|
Lifespan (Hour) |
>50,000 |
|
Dimensions(mm) |
L998xW55xH36mm |
|
Adjustable |
0~30° |
|
Brand Name |
TIMES |
|
Housing Color |
White |
|
Installation |
Recessed |
|
Cut-out Size |
988x41mm |
|
Beam Angle |
20° |
|
LM80 Tested |
YES |
2. Product Features:
- Private moulding and unique structure design;
- Linear wall wash lighting effect, with 20°beam angle;
- Lens adjustable from 0-30°
- Recessed Installation with clips, easy installation, save labor costs
- Different length for choice, 300mm@20W, 600mm@30W, 1000mm@50W
- Suitable for School Blackboard, Art Exhibition, Library and so on.

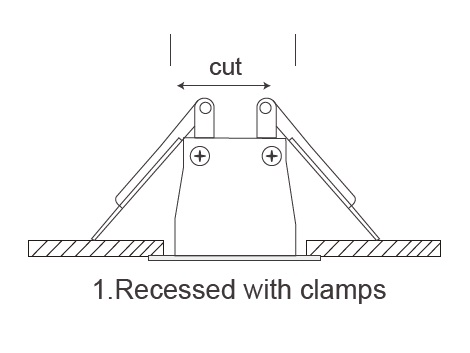

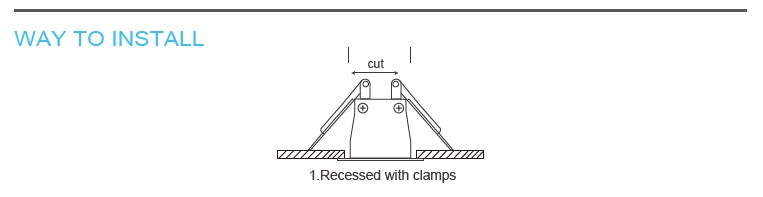

3. Recessed Installation:

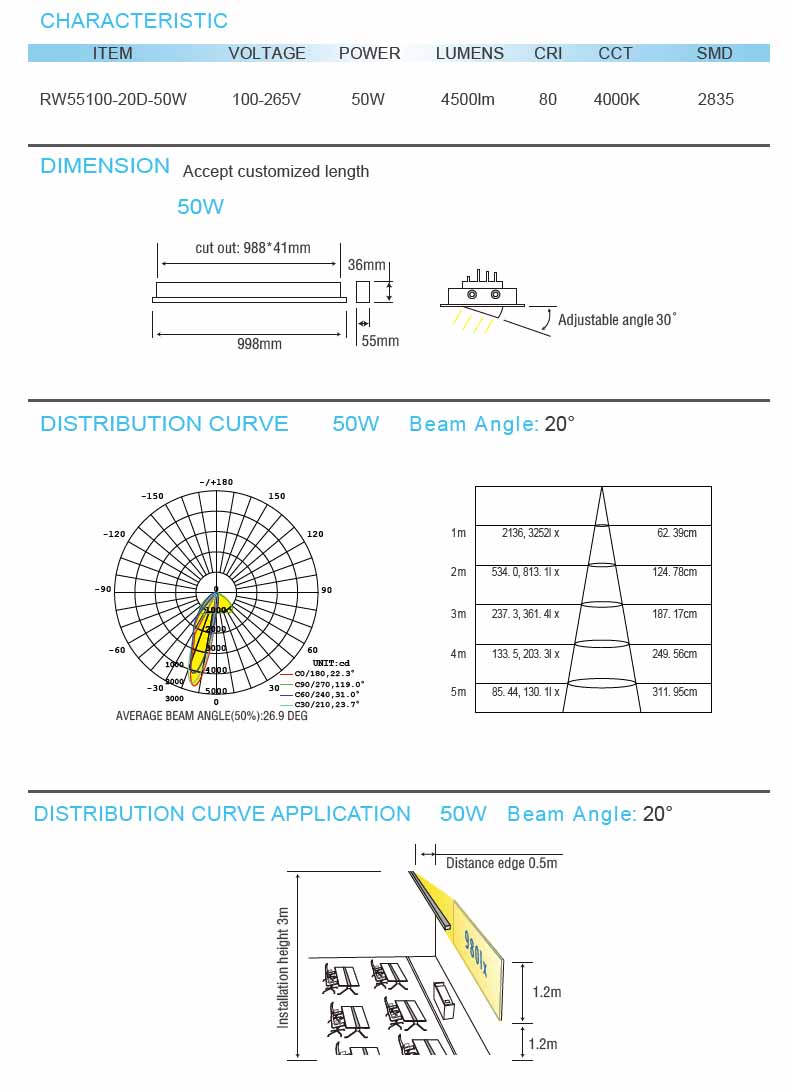

4. Product Details:
5. Applications:
Suitable for Suitable for School Blackboard, Art Exhibition, Library and so on.
|
