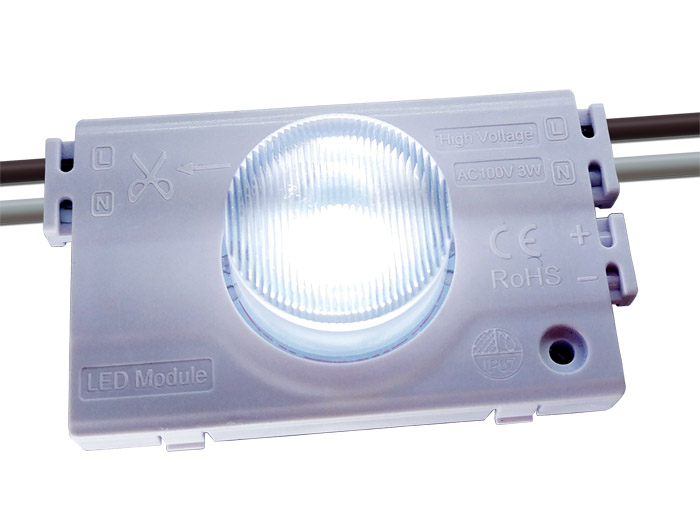

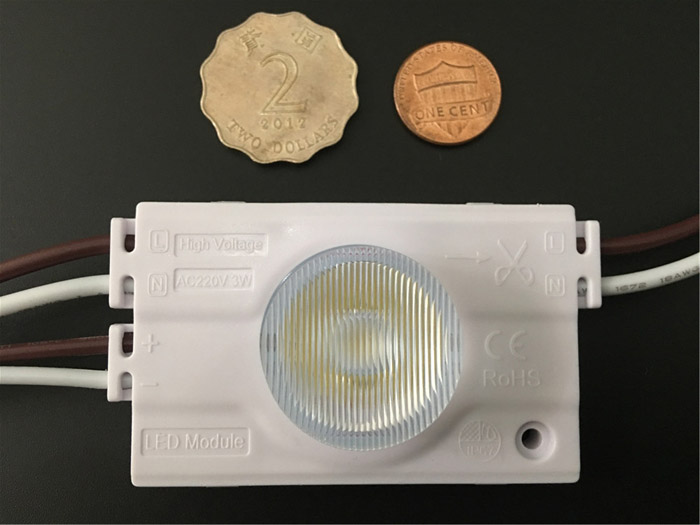

3W AC Direct Injection LED Module – Edge-lit Type
AC Direct Injection LED Module is designed as the light source of signage or lighting box. With the internal IC design, it’s with AC220V or AC110V input, no need external driver, without voltage drop problem.
1.Specifications:
|
Item NO. |
MAP501 |
|
Light Source |
Customized SMD4040 LED |
|
Beam Angle |
12x50deg |
|
CCT |
Pure White |
|
Input Voltage(V) |
AC220-264V (AC110V for choice) |
|
Rated Power(W) |
3W |
|
Lumen Output |
255lm |
|
IP Rate |
IP67 Waterproof |
|
Qty./String |
20pcs Standard |
|
Cuttable |
Cuttable per 2pcs |
|
Working Temperature(℃) |
-20 - +45 |
|
Lifespan (Hour) |
>50,000 |
|
Dimensions(mm) |
75x45x19.6mm |
|
Type |
Edge-lit |
|
Brand Name |
TIMES |
|
Housing Material |
ABS from SABIC |
|
Warranty Period |
5 Years |
2.Product Features:
- Adopt high quality LED as light source,high brightness,uniform lighting,good Antistatic;
- AC200-AC264V 50Hz/60Hz input; P.F>0.9;
- Nice design with 12*50°optical lens;
- Circuit design with constant current, over-temperature and short circuit protection function;
- Use fire-resistant material, fireproof up to U94V-0 and waterproof up to IP67;
- No need power supply; no wiring loss; no voltage-dropping; single cuttable; easy installation.

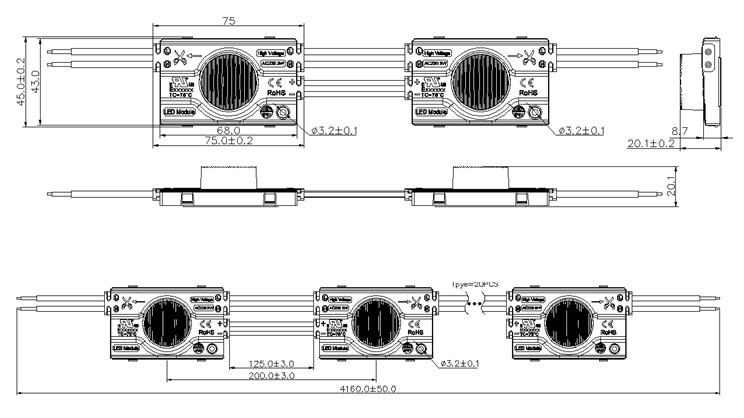

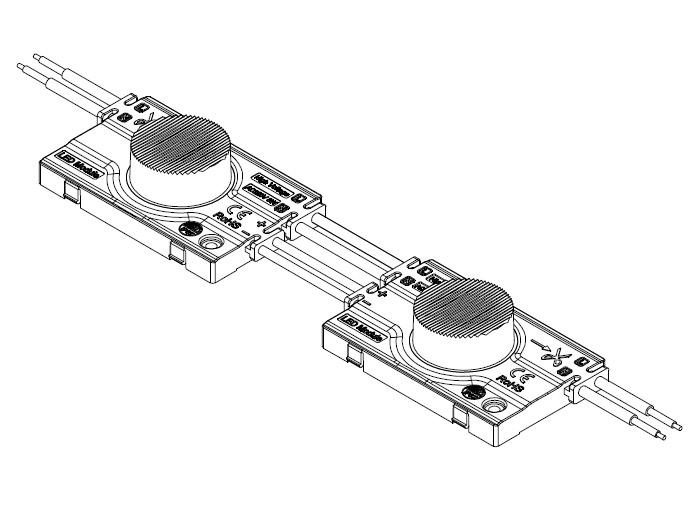

3. Dimensions:

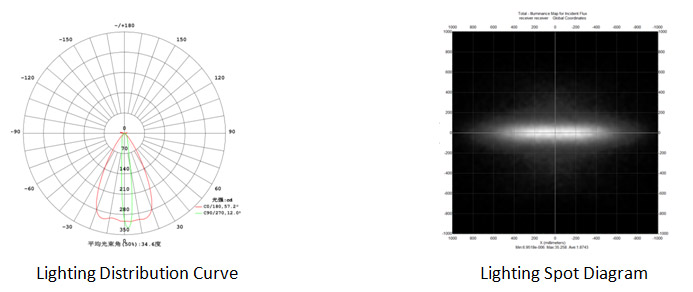

4. Light Distribution:

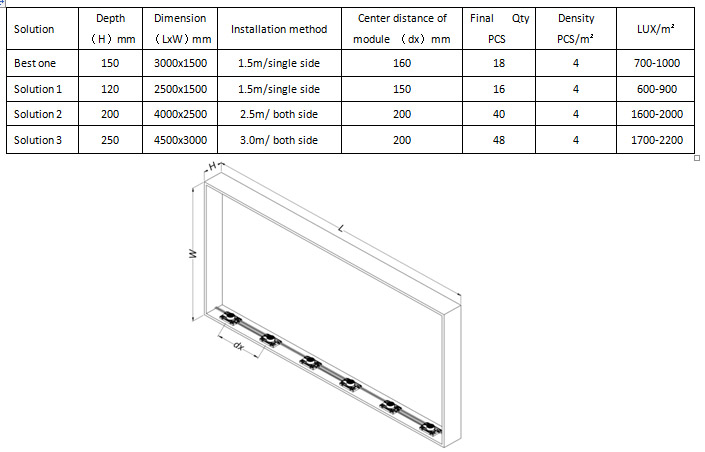

5. Solution:
6. Package:
20pcs Modules per Inner Blister Package;
200pcs Modules per Master Carton (10 Blister Package / CTN)
7.Applications:
Suitable for Indoor & Outdoor Signage or Lighting Box, Edge-lit Type.
|
