1.6W AC Direct Injection LED Module – Back-lit Type
1.Specifications:
|
Item NO. |
MAP601 |
|
Light Source |
Customized SMD4040 LED |
|
Beam Angle |
160x160deg |
|
CCT |
6500-7000K, 8000-9000K |
|
Input Voltage(V) |
AC220-240V (AC110V for choice) |
|
Rated Power(W) |
1.6W |
|
Lumen Output |
180lm |
|
IP Rate |
IP67 Waterproof |
|
Qty./String |
100pcs Standard |
|
Cuttable |
Cuttable per 1pc |
|
Working Temperature(℃) |
-20 - +45 |
|
Lifespan (Hour) |
>50,000 |
|
Dimensions(mm) |
88x21.5x11.1mm |
|
Type |
Back-lit |
|
Brand Name |
TIMES |
|
Housing Material |
ABS from SABIC |
|
Warranty Period |
5 Years |
2.Product Features:
-
Adopt high quality LED as light source,high brightness,uniform lighting,good Antistatic;
-
AC200-AC264V 50Hz/60Hz input;P.F>0.9;
-
Nice design with 160*160°optical lens;
-
Circuit design with constant current, over-temperature and short circuit protection function;
-
Use fire-resistant material, fireproof up to U94V-0 and waterproof up to IP67;
-
No need power supply; no wiring loss; no voltage-dropping; single cuttable; easy installation;

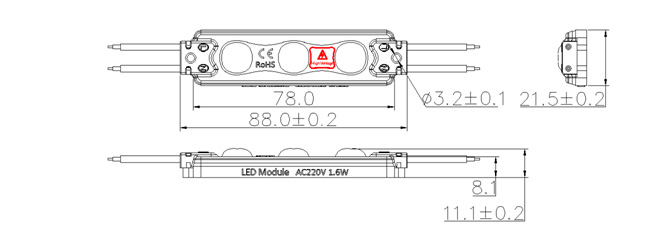

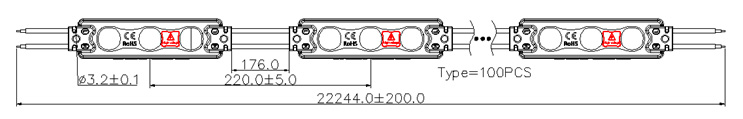

3. Dimensions:

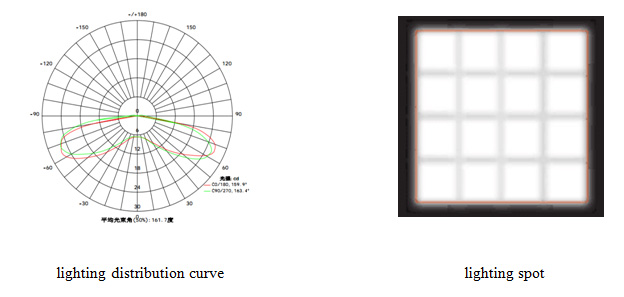

4. Light Distribution:

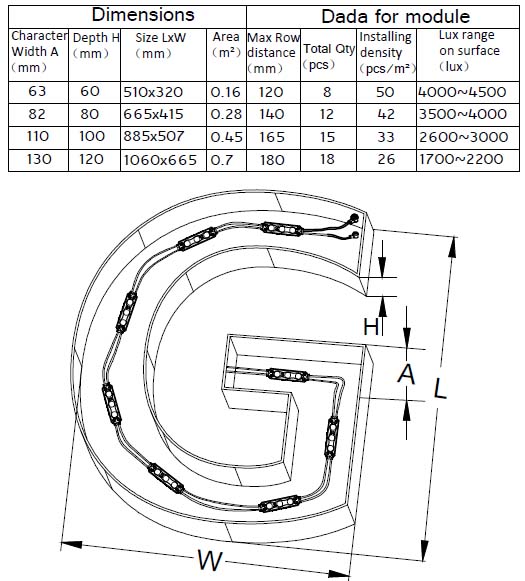

5. Solution:
6.Applications:
Suitable for Indoor & Outdoor Signage or Lighting Box, Back-lit Type.
|
