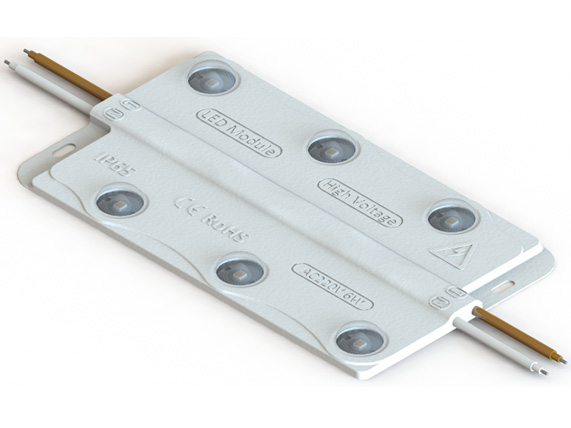

6W AC Direct Injection LED Module – Back-lit Type
1.Specifications:
|
Item NO. |
MAP801 |
|
Light Source |
Customized LM80 LED |
|
Beam Angle |
165deg |
|
CCT |
6500-7000K |
|
Input Voltage(V) |
AC220-264V (AC110V for choice) |
|
Rated Power(W) |
6.0W |
|
Lumen Output |
540lm |
|
IP Rate |
IP67 Waterproof |
|
Qty./String |
50pcs Standard |
|
Cuttable |
Cuttable per 1pc |
|
Working Temperature(℃) |
-20 - +55 |
|
Lifespan (Hour) |
>50,000 |
|
Dimensions(mm) |
150x86x10mm |
|
Type |
Back-lit |
|
Brand Name |
TIMES |
|
Housing Material |
ABS from SABIC |
|
Warranty Period |
5 Years |
2.Product Features:
Using high quality AC LED as light source,high brightness,uniform lighting,good Antistatic;
AC200-AC264V 50Hz/60Hz input; P.F>0.92;
Unique design with 165°optical lens;
Circuit design with constant current, over-temperature and short circuit protection function;
Use fire-resistant material, fireproof up to U94V-1 and waterproof up to IP65;
No need power supply; no wiring loss; no voltage-dropping; single cuttable; easy installation;

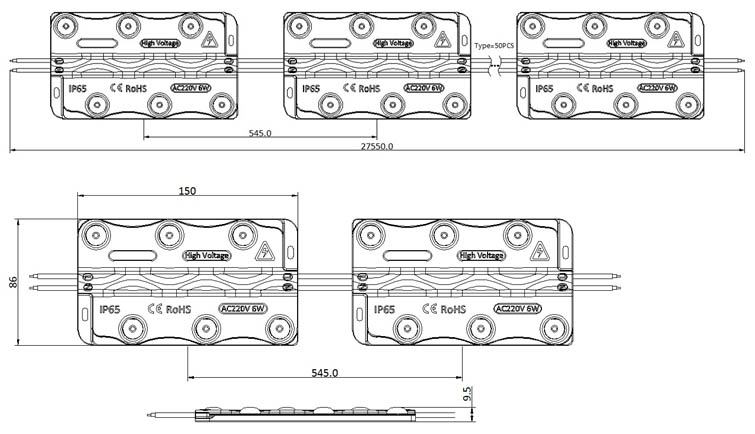

3. Dimensions:

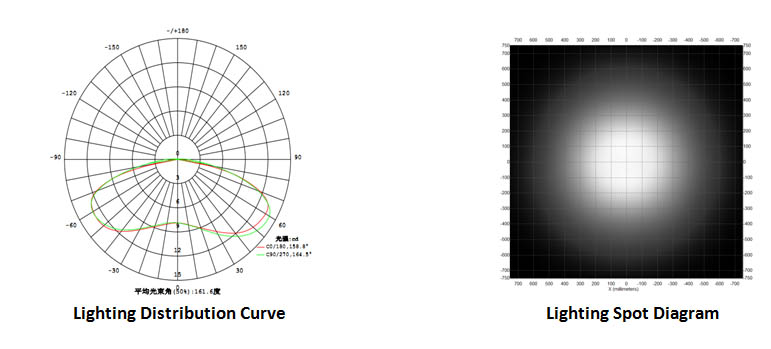

4. Light Distribution:

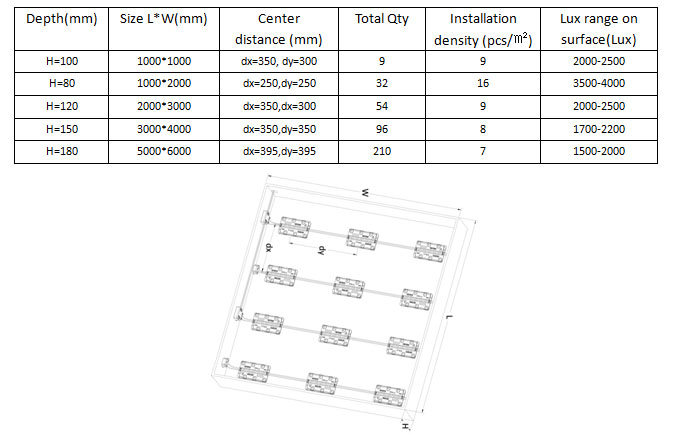

5. Solution:
6. Package:
Carton Size: 56*26*20.4cm
50pcs/internal box, 2 boxes/carton
NW : 14 (1±10%) KGS
GW : 15.5 (1±10%) KGS
7.Applications:
Suitable for Indoor & Outdoor Signage or Lighting Box, Back-lit Type.
|
