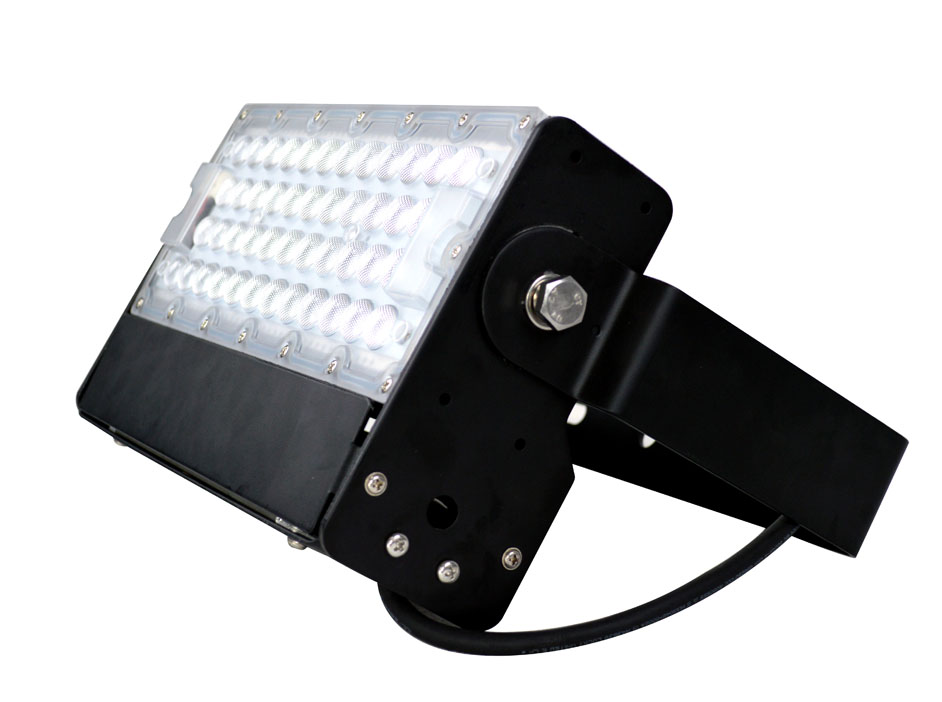

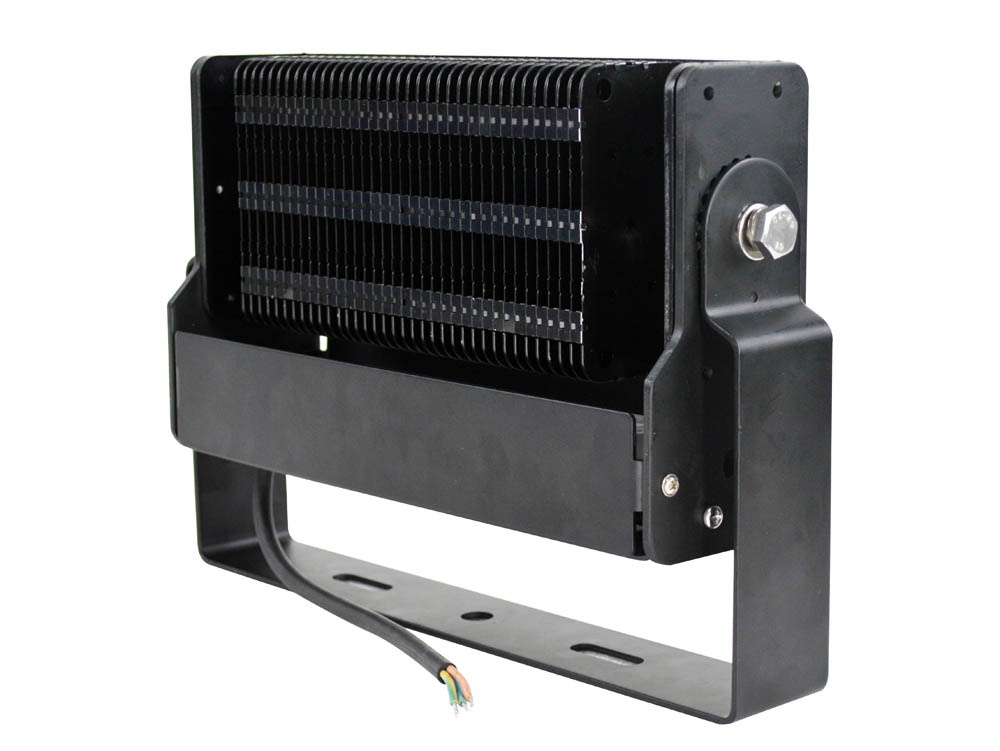

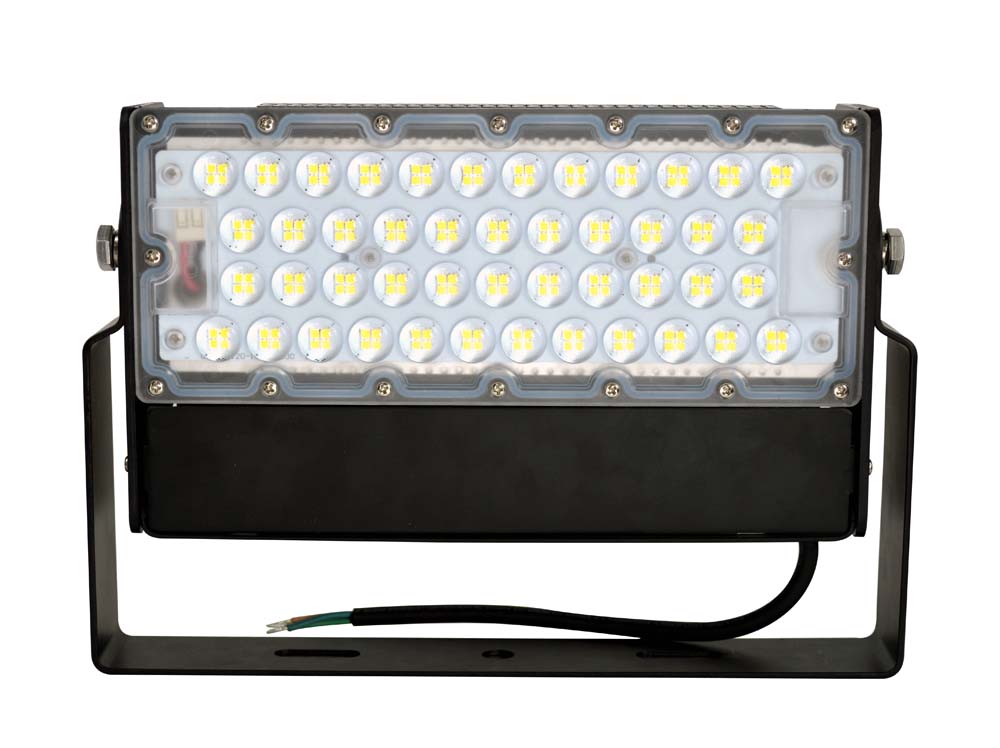

120W & 150W Modular LED Flood Light, High Mast Light
1.Specifications:
|
Item NO. |
TS-FLD-120W/150W |
|
Light Source |
Philips LUMILEDS |
|
Beam Angle |
20°/40°/60° 90°/140*100° |
|
Driver Brand |
Meanwell ELG Series |
|
Input Voltage(V) |
AC100-305V Universal Wide Voltage |
|
Rated Power(W) |
120W or 150W |
|
CCT |
2700-6500K (White) |
|
IP Rate |
IP67 |
|
CRI (Ra>) |
>80 |
|
Power Factor |
>0.95 |
|
Working Temperature(℃) |
-30 - +55 |
|
Lifespan (Hour) |
>50,000 |
|
Dimensions(mm) |
330*230*80mm |
|
Fixture Weight |
4.75kgs |
|
Brand Name |
TIMES |
|
Heat Sink Material |
Fin-Type Pure Aluminum 1060 |
|
Housing Color |
Black or Silver |
|
Warranty Period |
5 Years |
2.Product Features:
-Private moulding and unique modular design
-Each module is rotatable in 360 degrees
-Meanwell ELG driver and Philips LUMILEDS LED
-Fin-type 1060 pure aluminum heat-sink
-Different beam angles for choice
-Housing color: Black or Silver
-High light efficiency up to 165lm/W

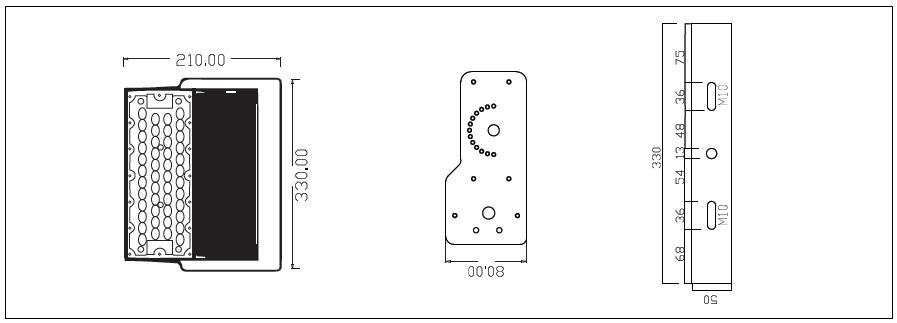

3. Dimensions:

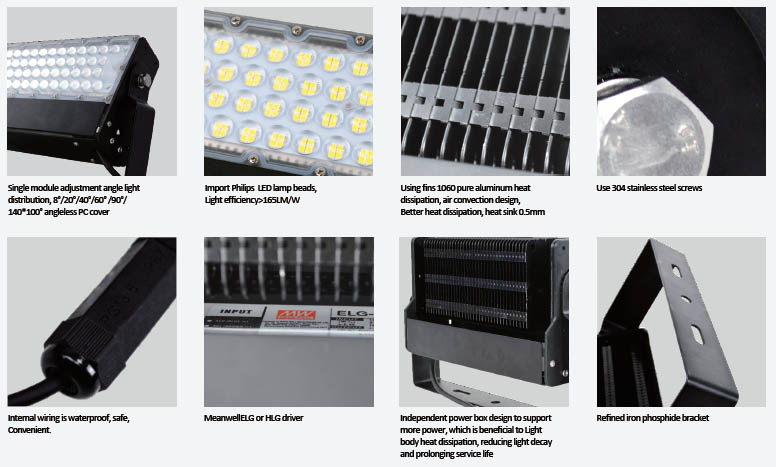

4. Main Advantages:

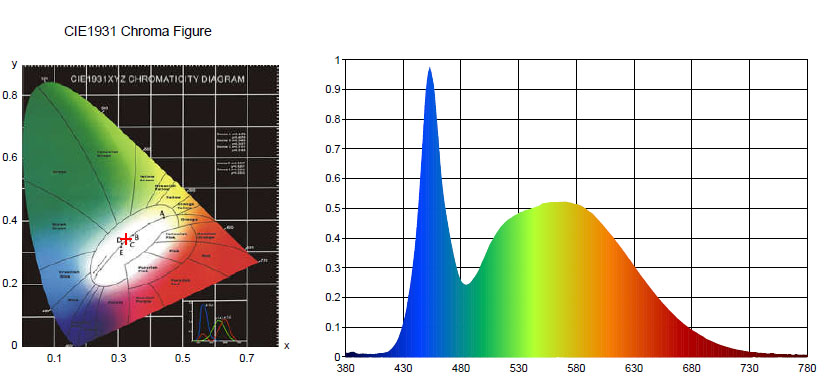

5. Test Data:

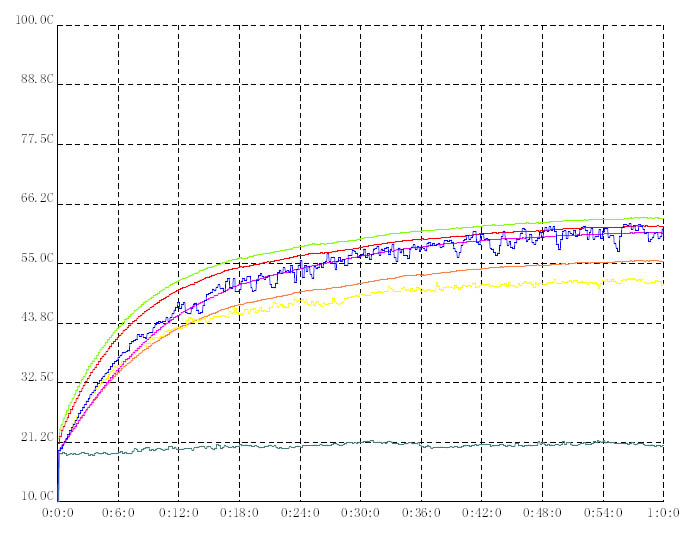

6. Temperature Test:
****Green is for Soldering Point, Blue is for Fin-type Heat Sink

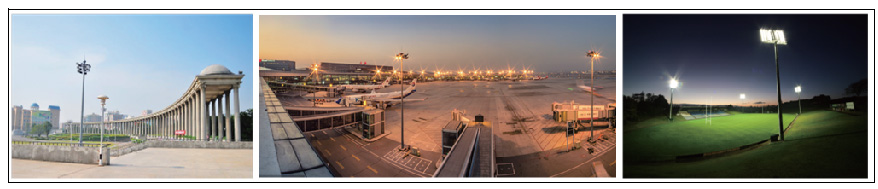

7.Applications:
Suitable for Indoor & Outdoor Sports Stadium, Airport, Square and so on.

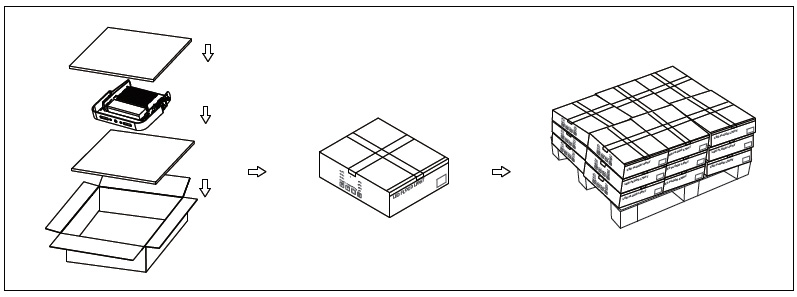

8. Package:
- 1pc/CTN
- 4.75Kg/CTN
- Dimension: 340*240*102mm/CTN
|
