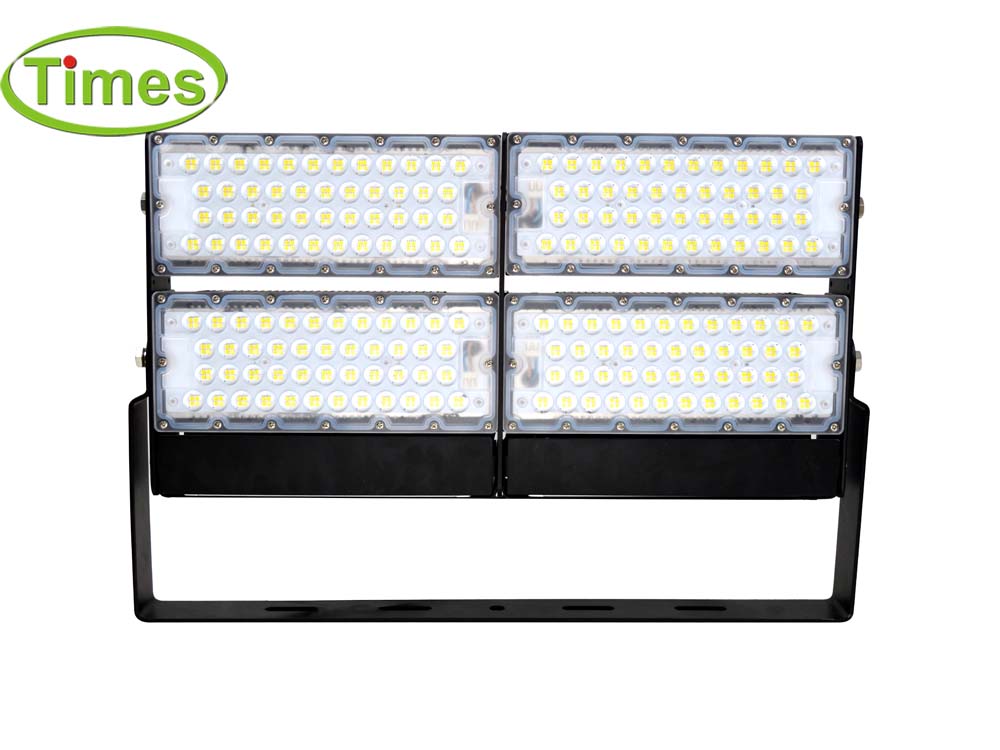

600W Modular LED Flood Light, High Mast Light
Model. : TS-FLD-600W
Introduction&Application :
Modular LED Flood Light & High Mast Light is mainly used for Sports Stadium, Airports, Square and so on. It’s with private mouldings and unique modular design. Each module is rotatable in 360degrees. It’s with Meanwell power supply and Philips LUMILEDS. We have large power range for choice from 120W to 1500W....

Large image

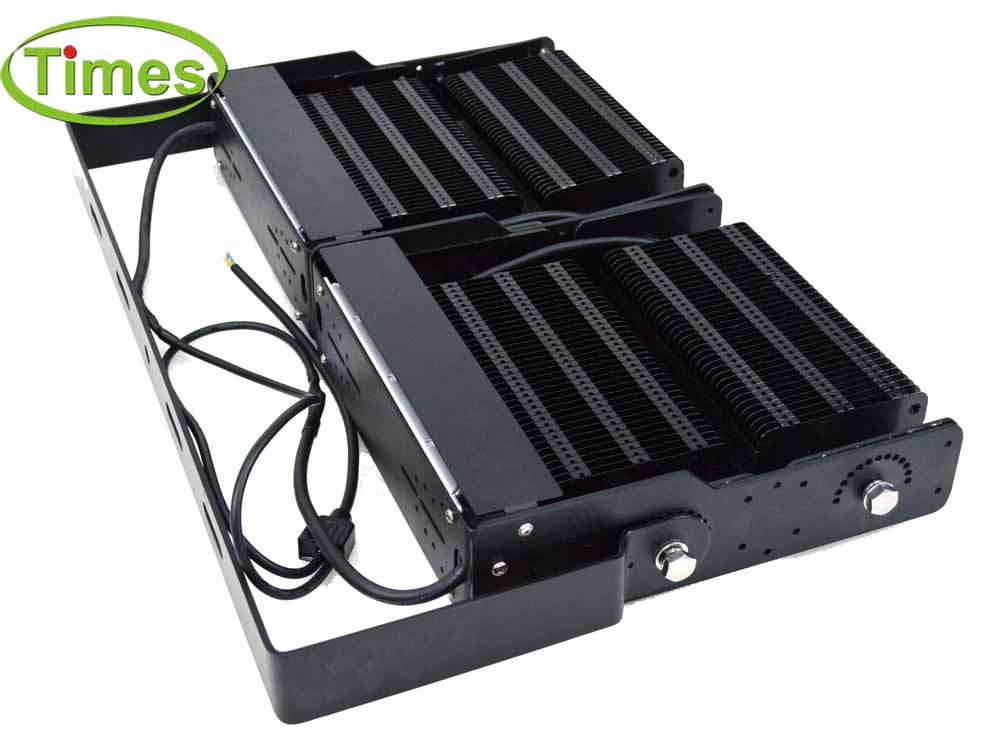

600W Modular LED Flood Light, High Mast Light


1.Specifications:

Item NO.
TS-FLD-600W
Light Source
Philips LUMILEDS
Beam Angle
20°/40°/60° 90°/140*100°
Driver Brand
Meanwell ELG Series (300W*2pcs)
Input Voltage(V)
AC100-305V Universal Wide Voltage
Rated Power(W)
600W
CCT
2700-6500K (White)
IP Rate
IP67
CRI (Ra>)
>80
Power Factor
>0.95
Working Temperature(℃)
-30 - +55
Lifespan (Hour)
>50,000
Dimensions(mm)
625*410*83mm
Fixture Weight
13.2kgs
Brand Name
TIMES
Heat Sink Material
Fin-Type Pure Aluminum 1060
Housing Color
Black or Silver
Warranty Period
5 Years


2.Product Features:

-Private moulding and unique modular design

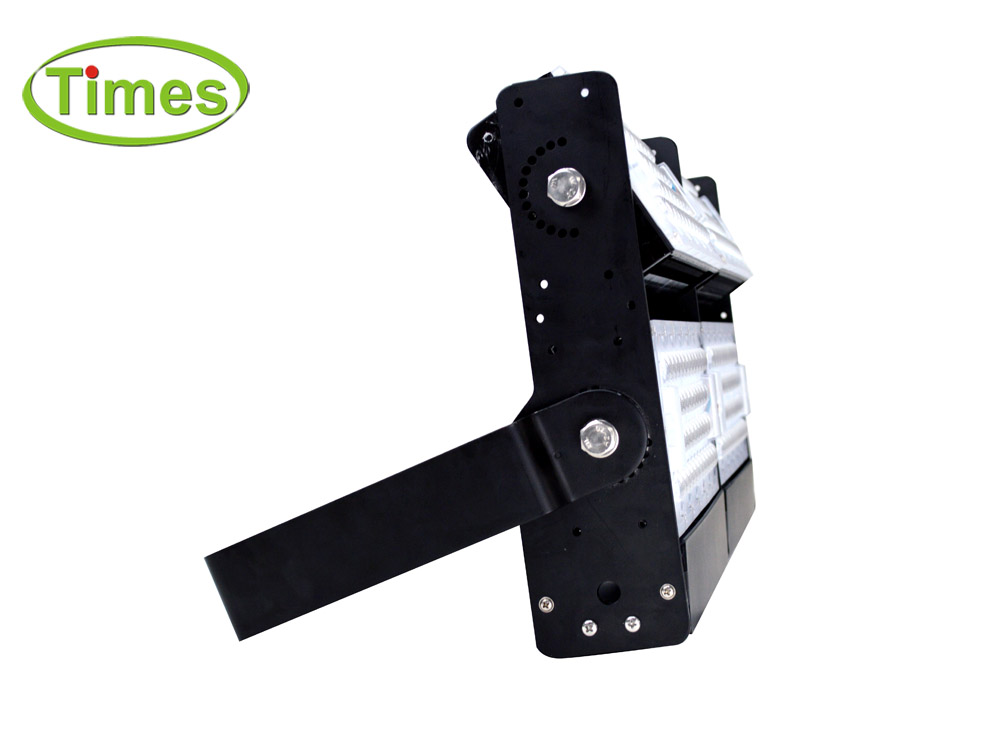

-Each module is rotatable in 360 degrees
-Meanwell ELG driver and Philips LUMILEDS LED
-Fin-type 1060 pure aluminum heat-sink
-Different beam angles for choice
-Housing color: Black or Silver
-High light efficiency up to 165lm/W

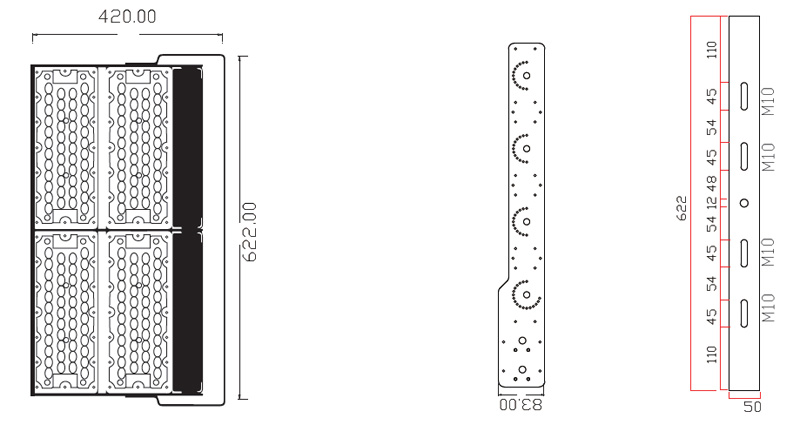

3. Dimensions:

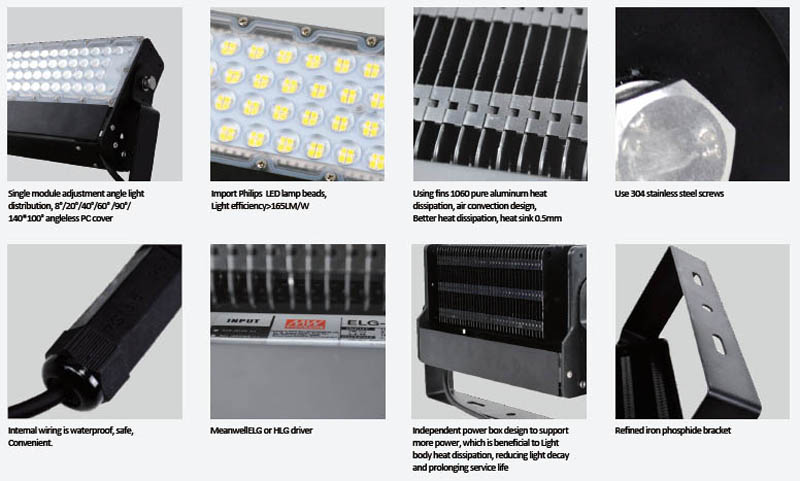

4. Main Advantages:

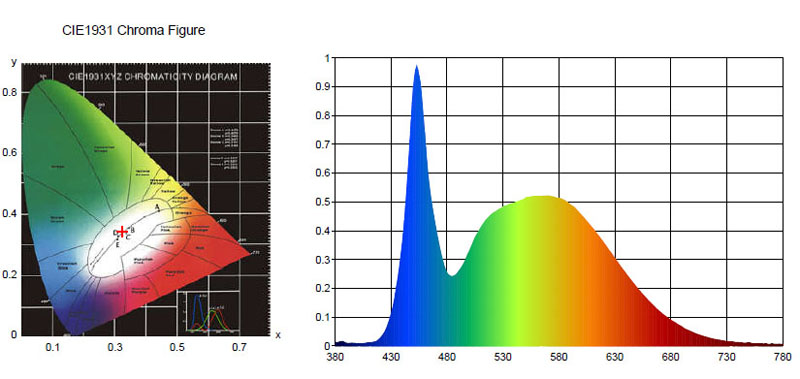

5. Test Data:

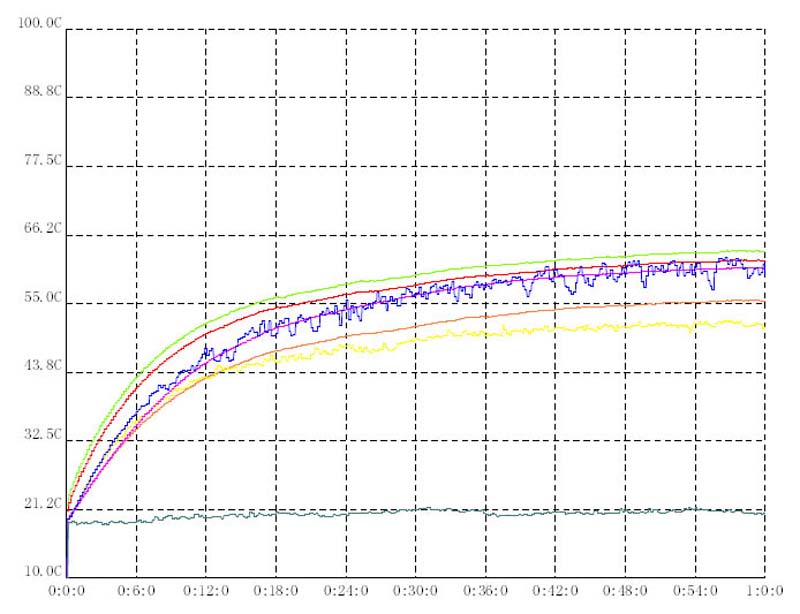

6. Temperature Test:

****Green is for Soldering Point, Blue is for Fin-type Heat Sink

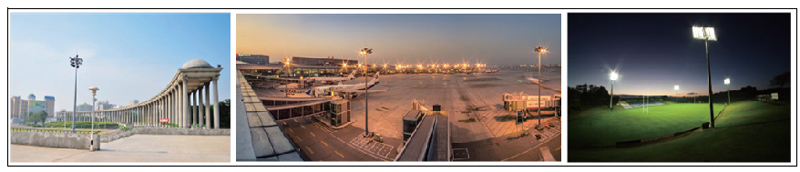

7. Applications:

Suitable for Indoor & Outdoor Sports Stadium, Airport, Square and so on.

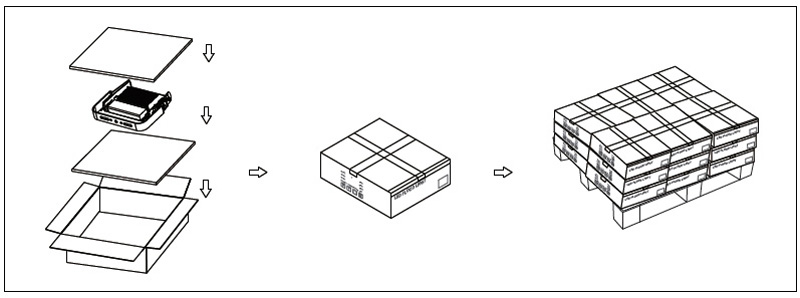

8. Package:
1pc/CTN
11Kg/CTN
Dimension: 652*430*105MM/CTN
