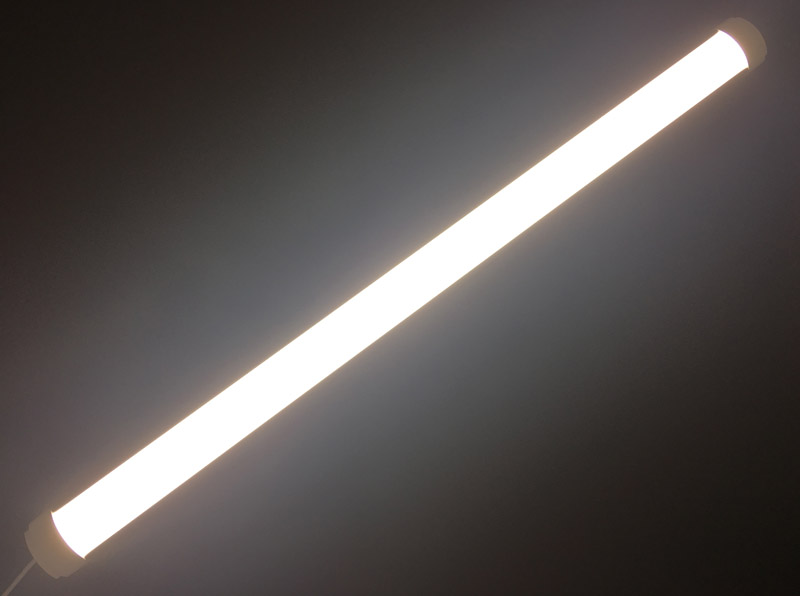

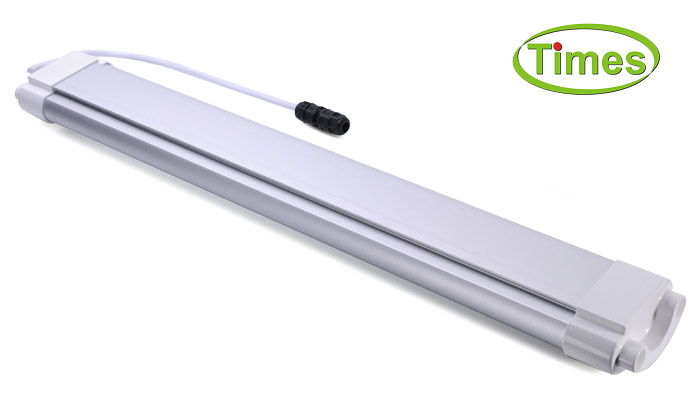

0.6m 20W IP65 LED Tri-proof Light
Model. : TS-TP60-20W
Introduction&Application :
LED Tri-proof Light is suitable for many different applications, such as office, meeting room, hotel, supermarket, shopping mall, airports, sports, train stations, warehouse and so on. It’s with private mouldings and unique design. It includes different length for choice, 600mm@20W, 1200mm@40W, 1500mm@60W.... |
    |
|
|
|
 |
|
 |
|
| |
|
|
0.6m 20W IP65 LED Tri-proof Light
1.Specifications:
|
Item NO. |
TS-TP60-20W |
|
Light Source |
SMD2835 LED |
|
Beam Angle |
120° with PC Diffuser |
|
Driver Type |
Internal Flicker-Free Driver, PF>0.95 |
|
Input Voltage(V) |
AC200-240V |
|
Rated Power(W) |
20W |
|
CCT |
2700-6500K (White) |
|
IP Rate |
IP65 |
|
CRI (Ra>) |
>80 |
|
Power Factor |
>0.95 |
|
Working Temperature(℃) |
-20 - +40 |
|
Lifespan (Hour) |
>50,000 |
|
Dimensions(mm) |
608*84*46mm |
|
Installation |
Surface Mounted & Suspending |
|
Brand Name |
TIMES |
|
Light Efficiency |
90~100lm/W; 120~130lm/W |
|

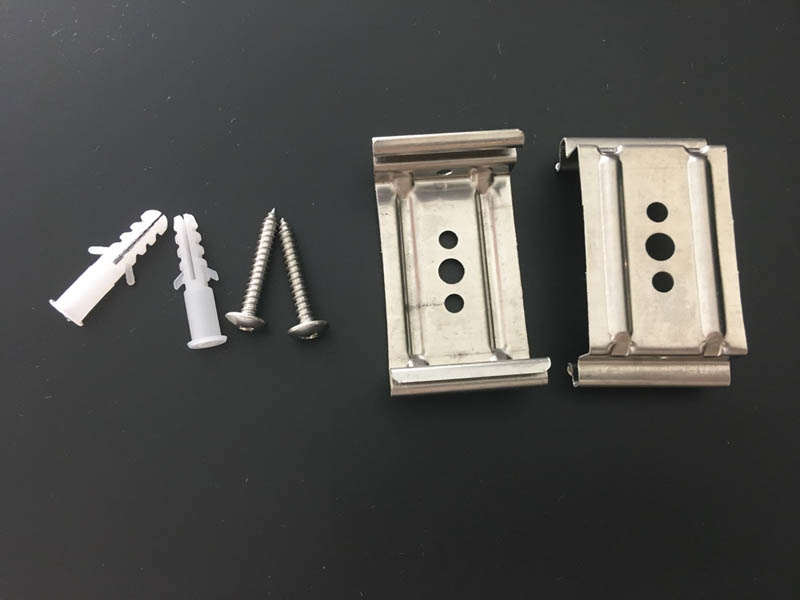

Accessories |
Metal Clips, Screws, Expansion Bolts |
|
Warranty Period |
3 Years |
2.Product Features:
- Private moulding and unique design
- With aluminum alloy body, high quality and best heat performance
- IP65 Tri-proof, suitable for damp locations
- Light Efficiency: 90~100lm/W; 120~130lm/W
- Installation: Surface Mounted or Suspending

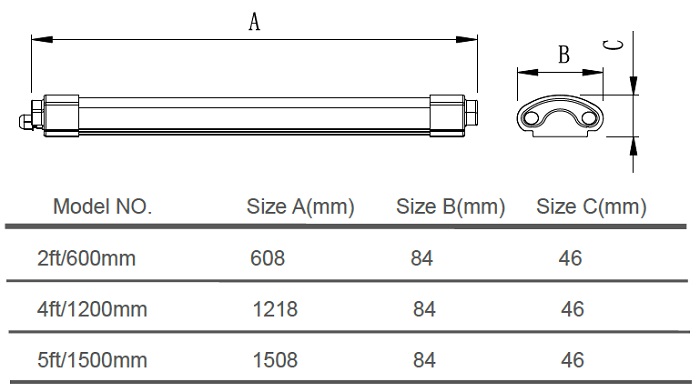

3.Dimensions:

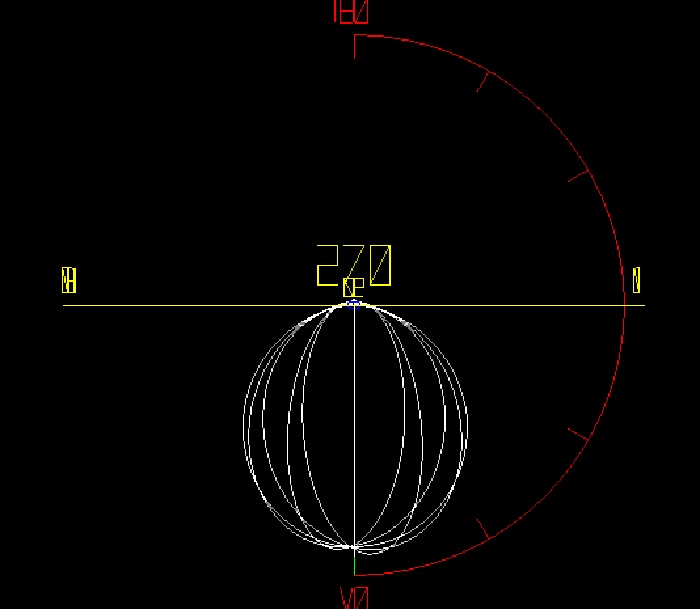

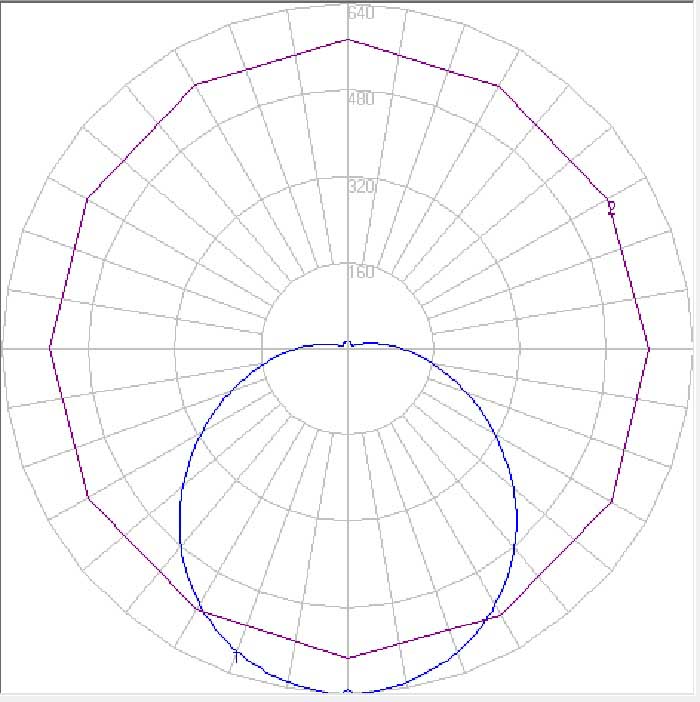

4. Light Distribution:

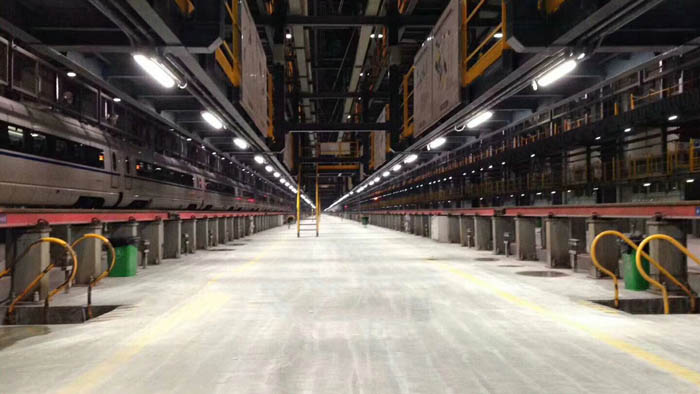

5.Applications:
Suitable for office, meeting room, hotel, supermarket, shopping mall, airports, sports, train stations, warehouse and so on.

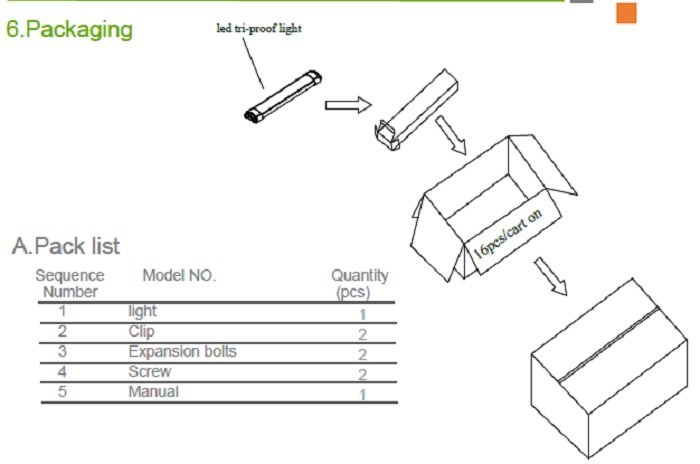

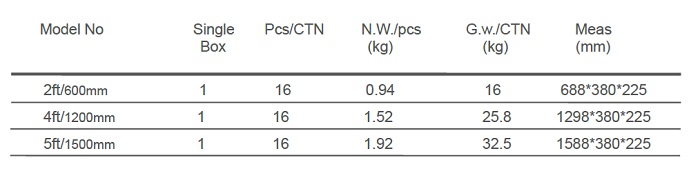

***Package Size:
|
