Linear LED Grow Light 100W Model. : L570-100W Introduction&Application : TIMES Linear LED Grow Light is mainly designed for vegetables & normal plants use. With full-spectrum design, it’s suitable for different vegetables and it can accelerate growing greatly. It includes different length for choice, 285mm@50W, 570mm@100W, 866mm@150W, 1135mm@200W, 1416mm@260W or 300W....

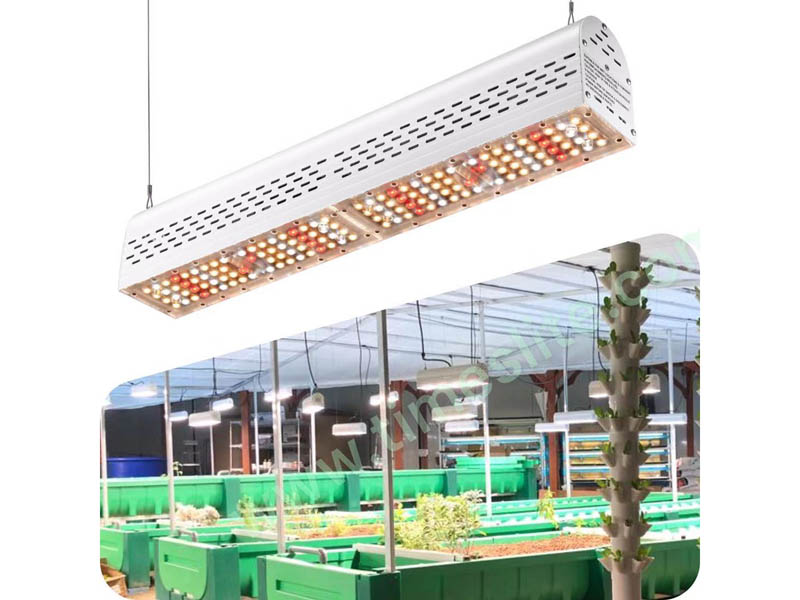

570mm 100W IP67 Linear LED Grow Light

TIMES Linear LED Grow Light is mainly designed for vegetables & normal plants use. With full-spectrum design, it’s suitable for different vegetables and it can accelerate growing greatly. The Linear Grow Light is with Meanwell driver, high quality LEDs and IP67 waterproof design.

There’re two different types for installation, suspending & surface mounted for option. It’s with private mouldings and unique design. It includes different length for choice, 285mm@50W, 570mm@100W, 866mm@150W, 1135mm@200W, 1416mm@260W or 300W.

1.Specifications:

Item NO.	L570-100W
Light Source	SMD3030 LED
Beam Angle	40°, 60°,90°150×75° for choice
Driver Type	Meanwell ELG or XLG Driver, PF>0.95
Input Voltage(V)	AC100-277V
Rated Power(W)	100W
Spectrum	Full-Spectrum
IP Rate	IP67
PPF	202μmol/s
Housing Color	White or Black
Working Temperature(℃)	-20 - +45
Lifespan (Hour)	>50,000
Dimensions(mm)	570×106×85mm
Installation	Surface Mounted & Suspending
Brand Name	TIMES
Net Weight	3.5kgs
Accessories	Suspending Ropes or Brackets (for option)
Warranty Period	5 Years

2.Product Features:

Private moulding and unique design
Fashion Design, 1-5 modules, power from 50W-300W.
With built-in aluminum heat-sink, no fan design, high quality and best heat performance
Beam angle: 40°,60°,90°,150×75° for choice
IP67 Waterproof, suitable for high humidity use
Installation: Surface Mounted or Suspending

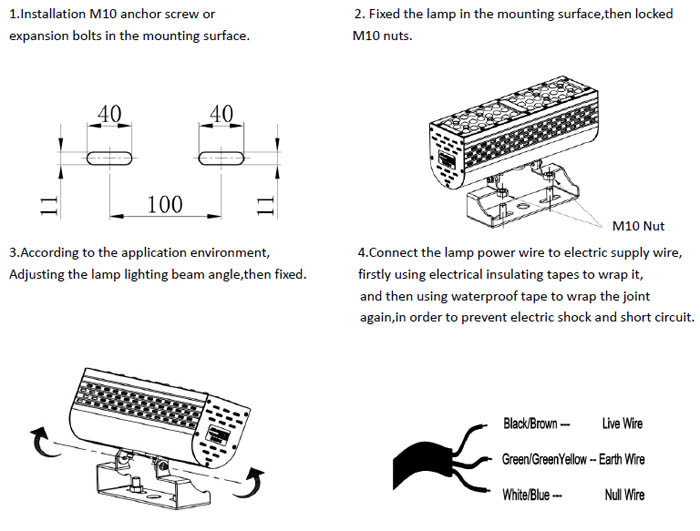

3. Installations:

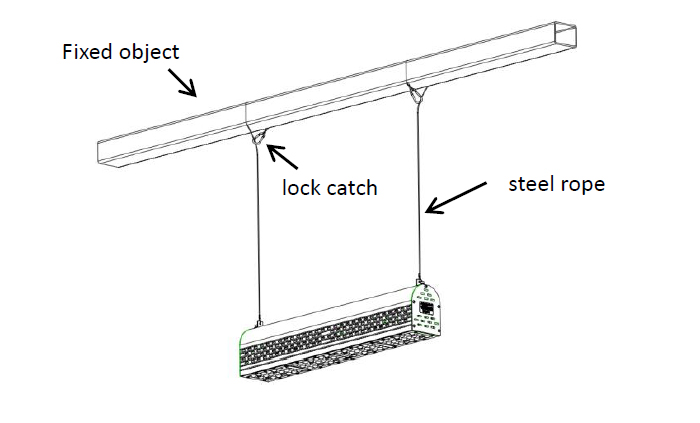

Supending with Ropes -

Surface Mounted with Bracket -

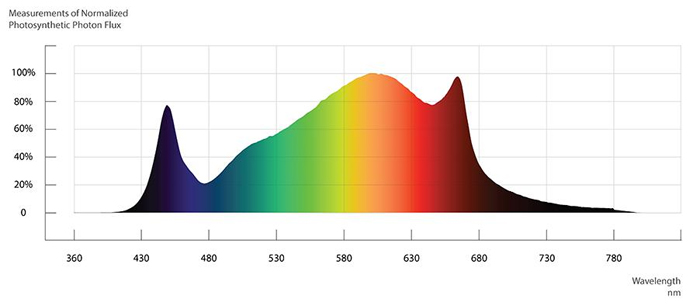

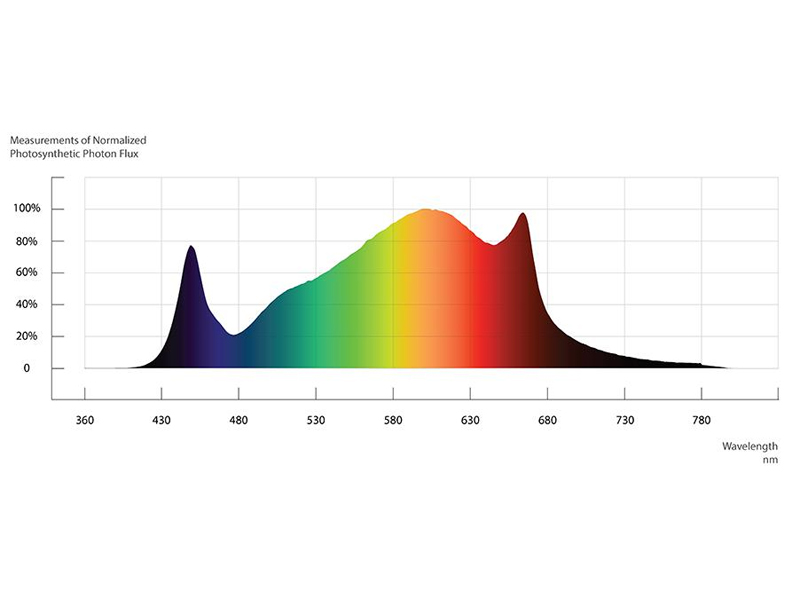

4. Spectrum Test:

Full-Spectrum, Light Source: warm white + pure white + red LEDs

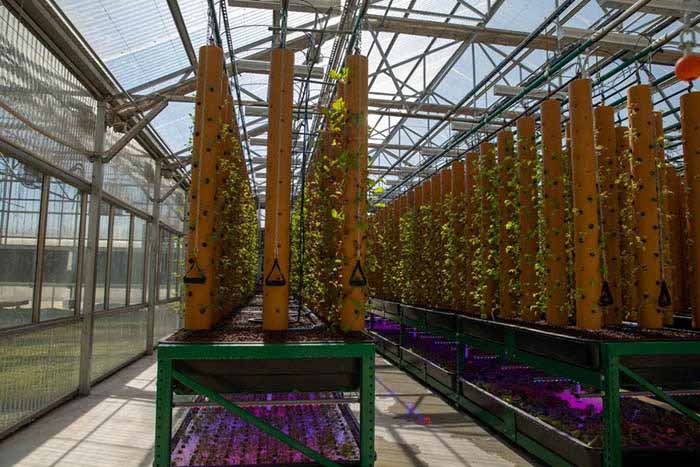

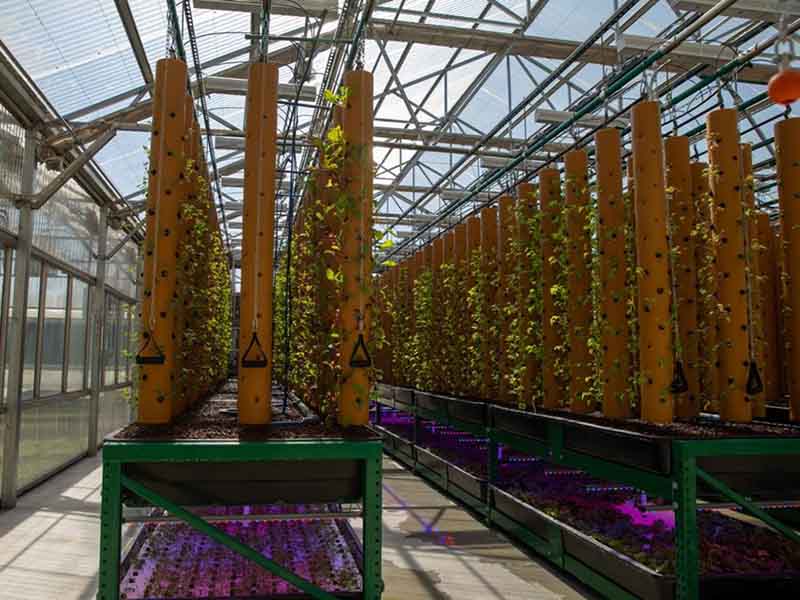

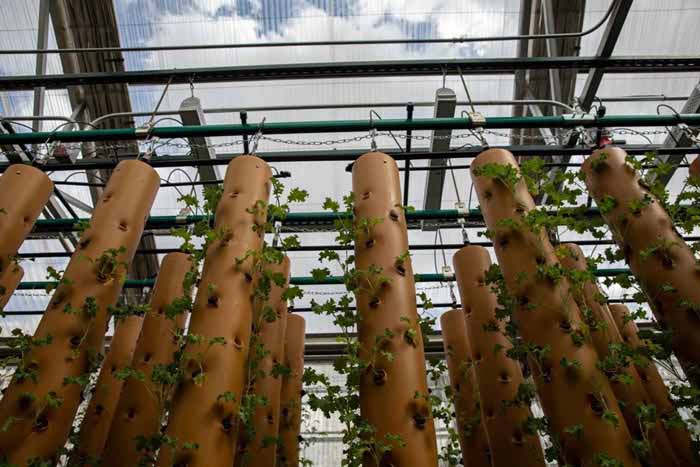

5. Applications:

Suitable for different kinds of vegetables and normal plants use; Suitable for high humidity applications.

Ideal for all phases of plant growth, and works well with water solution culture and soil culture. Can be used in house garden, pot culture, garden, sowing, breeding, farm, flower exhibition, bonsai, garden, green house, sowing,breeding, farm, greenhouse cultivation, water soluble breeding, greenhouse cultivation, pipeline cultivation and so on.

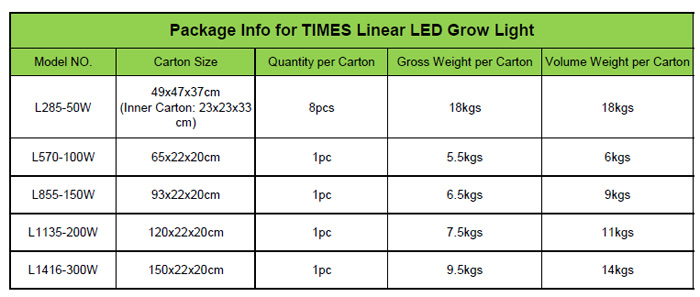

6. Package Details:

Manual download
