Linear LED Grow Light 200W
Model. : L1135-200W
Introduction&Application :
TIMES Linear LED Grow Light is mainly designed for vegetables & normal plants use. With full-spectrum design, it’s suitable for different vegetables and it can accelerate growing greatly. It includes different length for choice, 285mm@50W, 570mm@100W, 866mm@150W, 1135mm@200W, 1416mm@260W or 300W....

Large image

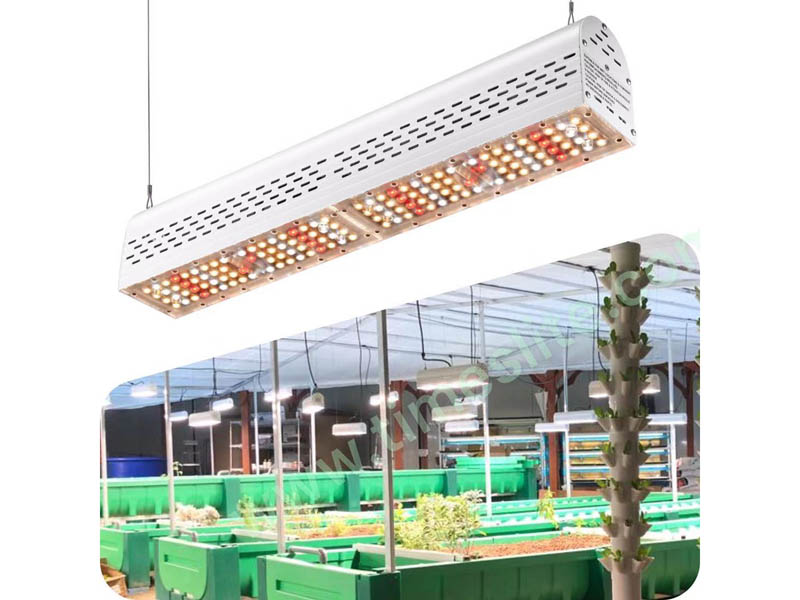

1135mm 200W IP67 Linear LED Grow Light

TIMES Linear LED Grow Light is mainly designed for vegetables & normal plants use. With full-spectrum design, it’s suitable for different vegetables and it can accelerate growing greatly. The Linear Grow Light is with Meanwell driver, high quality LEDs and IP67 waterproof design.

There’re two different types for installation, suspending & surface mounted for option. It’s with private mouldings and unique design. It includes different length for choice, 285mm@50W, 570mm@100W, 866mm@150W, 1135mm@200W, 1416mm@260W or 300W.


1.Specifications:

Item NO.
L1135-200W
Light Source
SMD3030 LED
Beam Angle
40°, 60°,90°150×75° for choice
Driver Type
Meanwell ELG or XLG Driver, PF>0.95
Input Voltage(V)
AC100-277V
Rated Power(W)
200W
Spectrum
Full-Spectrum
IP Rate
IP67
PPF
405μmol/s
Housing Color
White or Black
Working Temperature(℃)
-20 - +45
Lifespan (Hour)
>50,000
Dimensions(mm)
1135×106×85mm
Installation
Surface Mounted & Suspending
Brand Name
TIMES
Net Weight
5.8kgs
Accessories
Suspending Ropes or Brackets (for option)
Warranty Period
5 Years


2.Product Features:

  • Private moulding and unique design
  • Fashion Design, 1-5 modules, power from 50W-300W.
  • With built-in aluminum heat-sink, no fan design, high quality and best heat performance
  • Beam angle: 40°,60°,90°,150×75° for choice
  • IP67 Waterproof, suitable for high humidity use
  • Installation: Surface Mounted or Suspending


3. Installations:

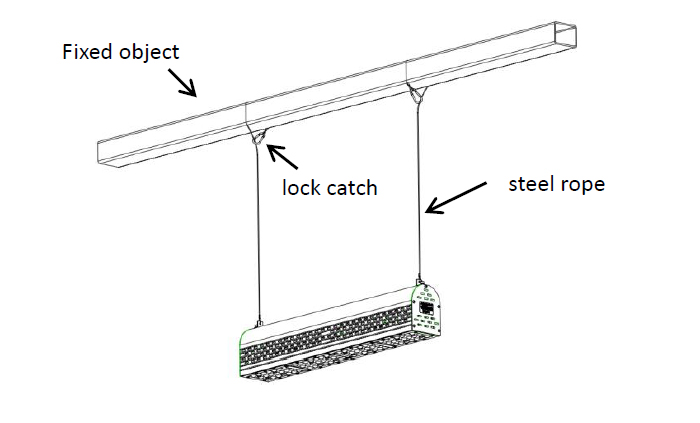

Supending with Ropes -

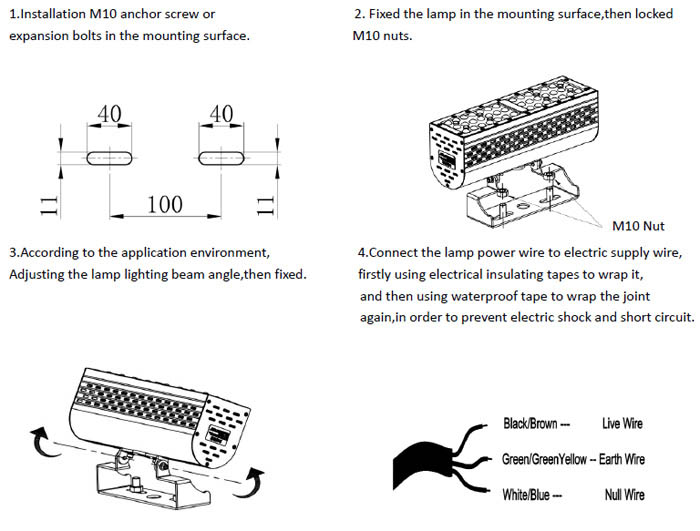

Surface Mounted with Bracket -

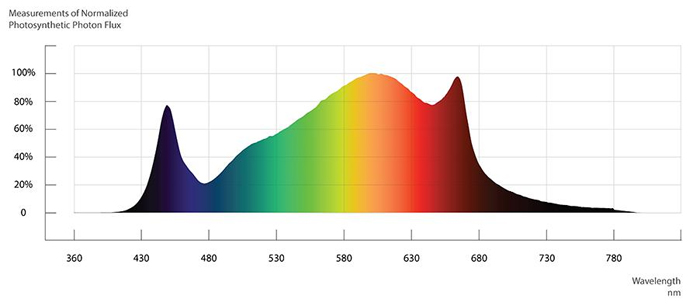

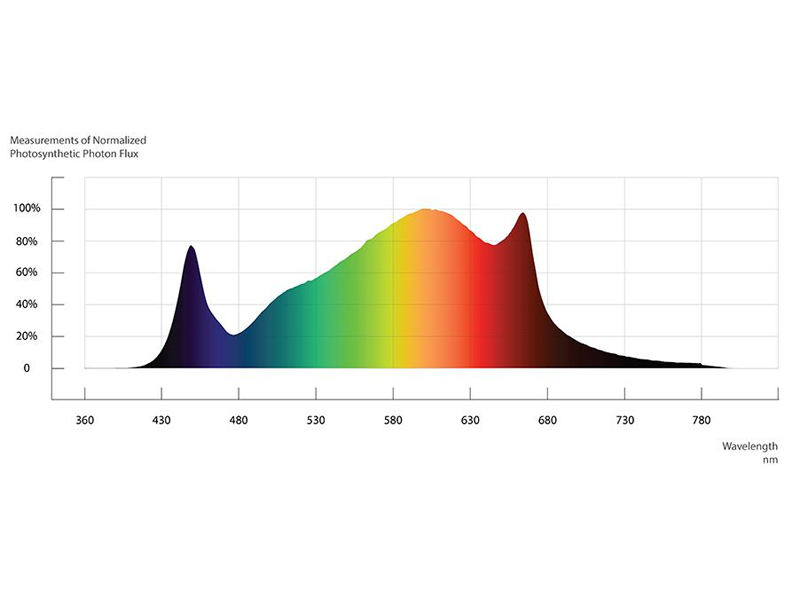

4. Spectrum Test:

Full-Spectrum, Light Source: warm white + pure white + red LEDs

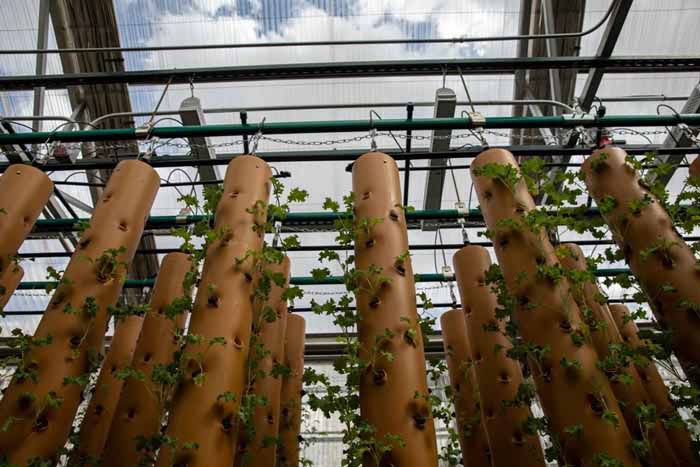

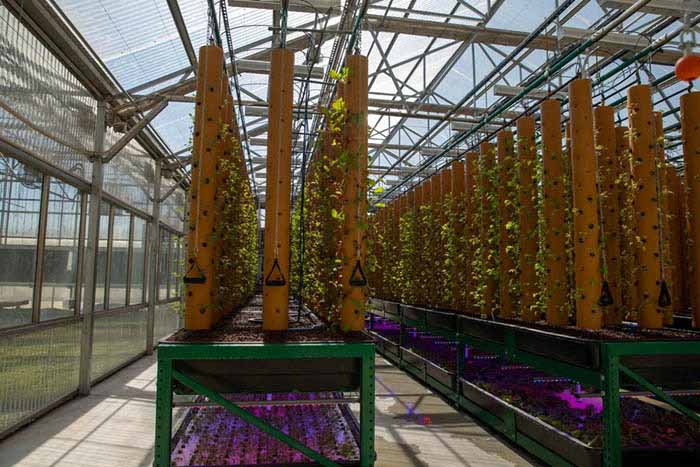

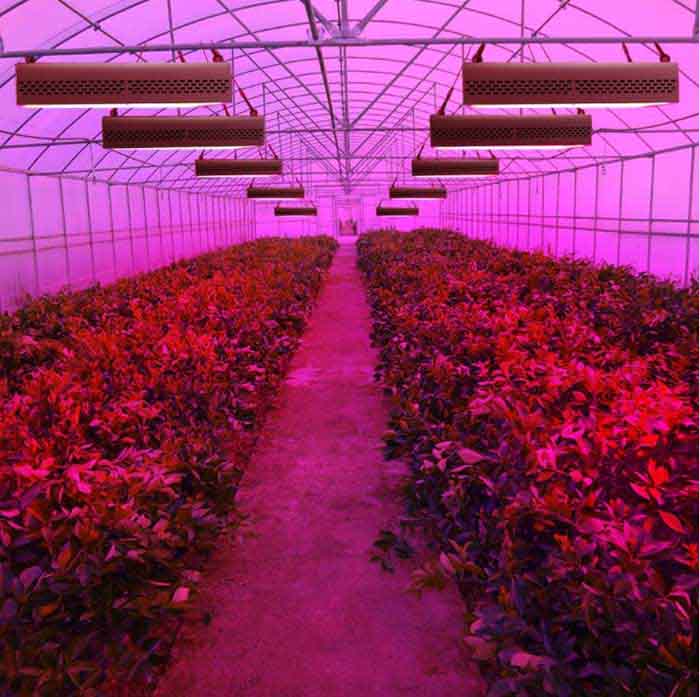

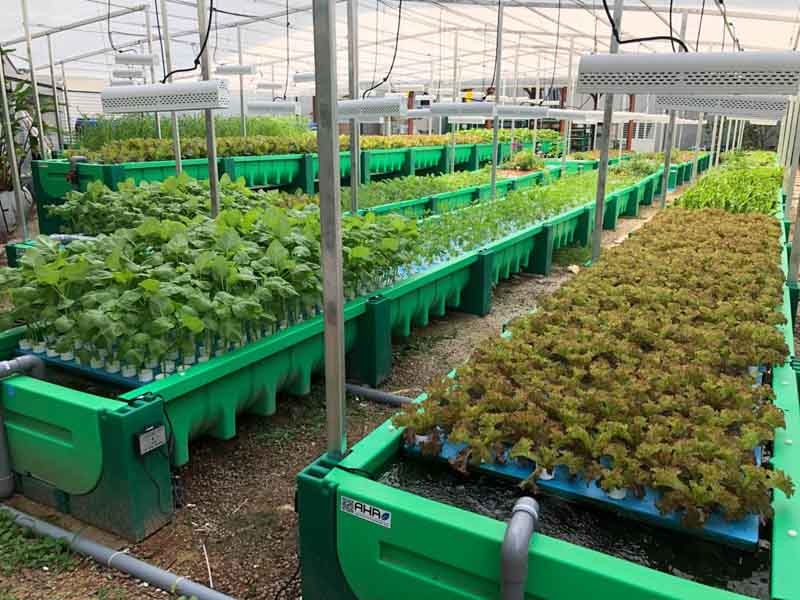

5. Applications:

Suitable for different kinds of vegetables and normal plants use; Suitable for high humidity applications.

Ideal for all phases of plant growth, and works well with water solution culture and soil culture. Can be used in house garden, pot culture, garden, sowing, breeding, farm, flower exhibition, bonsai, garden, green house, sowing,breeding, farm, greenhouse cultivation, water soluble breeding, greenhouse cultivation, pipeline cultivation and so on.

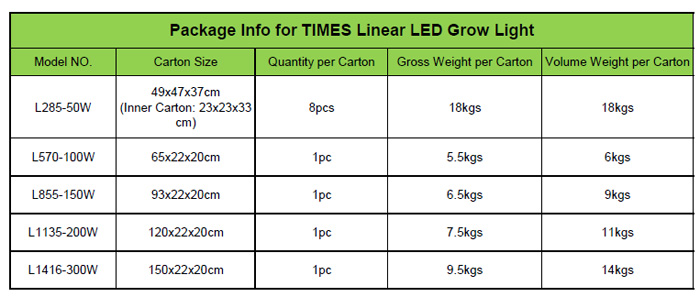

6. Package Details:
