UVC Disinfection Light
Model. : S3003
Introduction&Application :
TIMES UVC Disinfection Light is to destroy and change the structure of DNA through UVC irradiating, to kill the bacteria and stop reproduction. The real effect depends on UVC, because the band-c more easy to absorb by the DNA, especially the ultraviolet around 253.7nm....

Large image


TIMES UVC Disinfection Light - S3003


TIMES UVC Disinfection Light is to destroy and change the structure of DNA through UVC irradiating, to kill the bacteria and stop reproduction. The real effect depends on UVC, because the band-c more easy to absorb by the DNA, especially the ultraviolet around 253.7nm.

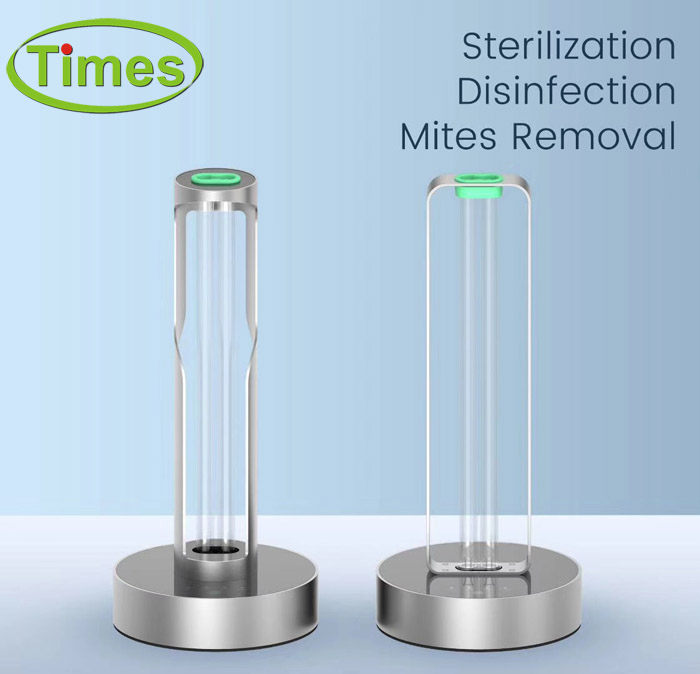

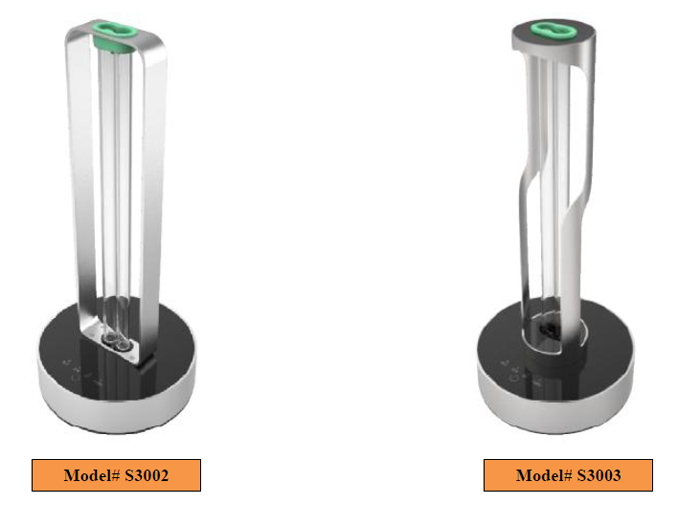

This series include two models for choice, S3002 & S3003. The only difference for the two models is just the shape of housing, the others are same.

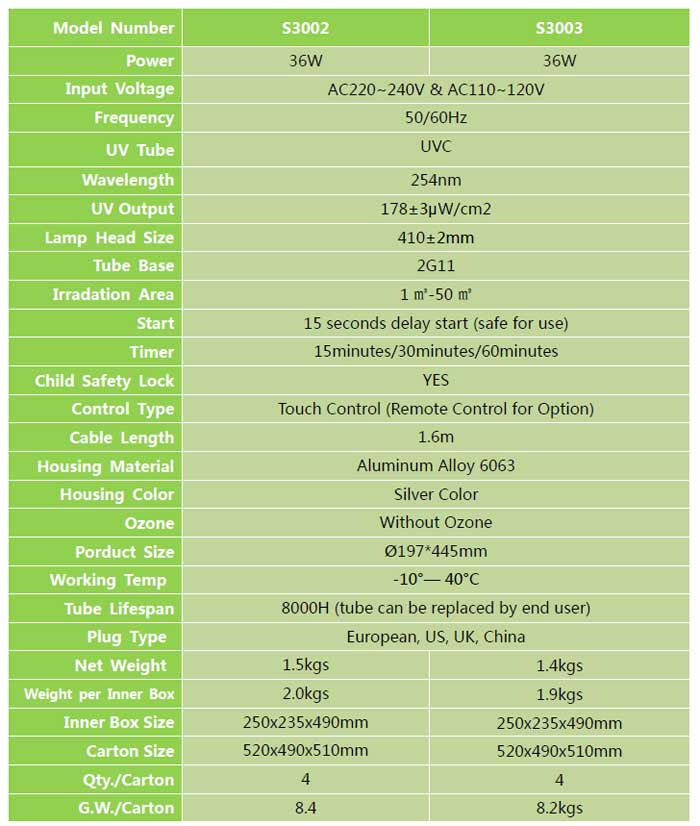

1. Specifications:


2. Product Advantages:

  • The UV disinfection lamp can emit a large number of 185~253.7nm(UVC) ultraviolet light, with a strong disinfection effect. Mainly suitable for: home, restaurants and the small space sterilization.
  • The UV disinfection lamp is to destroy and change the structure of DNA through UVC irradiating, to kill the bacteria and stop reproduction. The real effect depends on UVC, because the band-c more easy to absorb by the DNA, especially the ultraviolet around 253.7nm.
  • The Ultraviolet Disinfection Lamp can purify the air, elimate moldy odor, dis-infect and sterilize, and remove mites. In public places, it can also prevent some bacteria spreading through the air.

3. Applications:

Widely used in Household Sterilization, Removal of Mites, Removal of Coronavirus

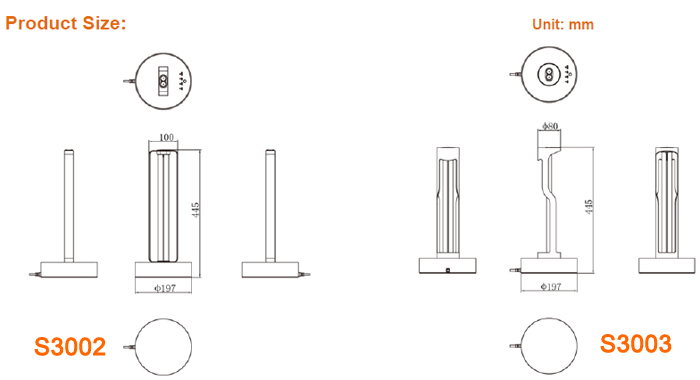

4. Dimensions:

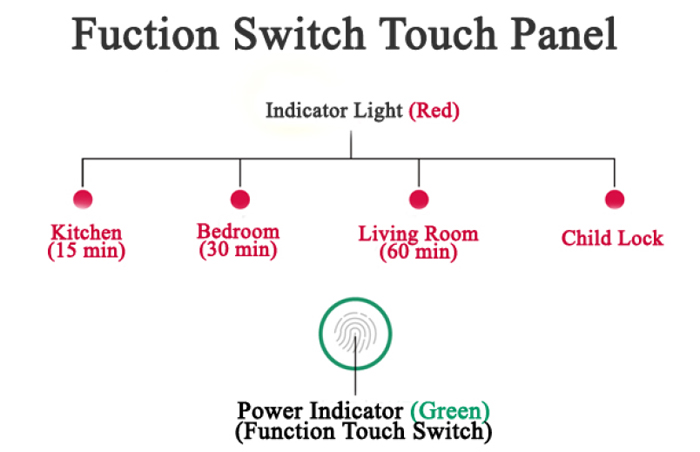

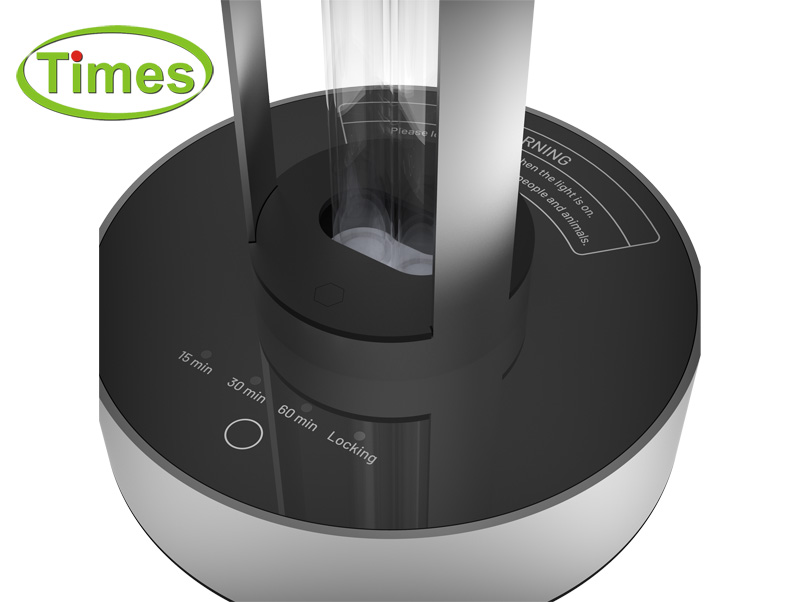

5. Operation Instructions:


1. Touch the function switch once, the power indicator light will be on until the end of
disinfection or long press the function switch;
2. Then every time you touch the function switch, the time will cycle between 15-30-60
minutes, and the corresponding indicator flashes;
3. Two seconds after selecting disinfection time, the buzzer will sound for 1-2 seconds, the
red indicator light will be on for the corresponding disinfection time, and after a delay of 15
seconds, the control board will power the disinfection lamp to start disinfection;
4. Before the disinfection is about to be completed, the short beep counts down for 10
seconds. The control board output is powered off and the disinfection completed, all the
indicators will be off;
5. Every time you touch the function switch, whether it is a light touch or a long press, it is
accompanied by a short buzzer;
6. The default setting is that all indicators are off and the infection time is not selected;
7. Child Lock Function: when the power indicator is on, touch the function switch 6 times
in 5 seconds to lock the disinfection lamp.

Review our operation video through the Youtube link: https://youtu.be/9OdpzG2lTfo

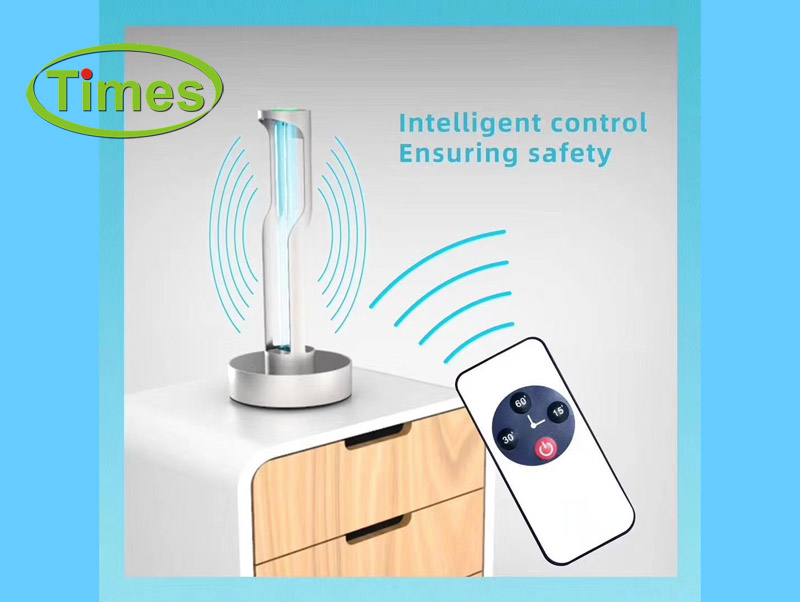

6. Remote Control for Option:


For more convenient use, we can also produce the Remote Control Type with remote controller. It’s not our standard, just for option only. Our standard is with touch-control panel and without remote control function.

With the remote controller, it will not affect the touch panel use.

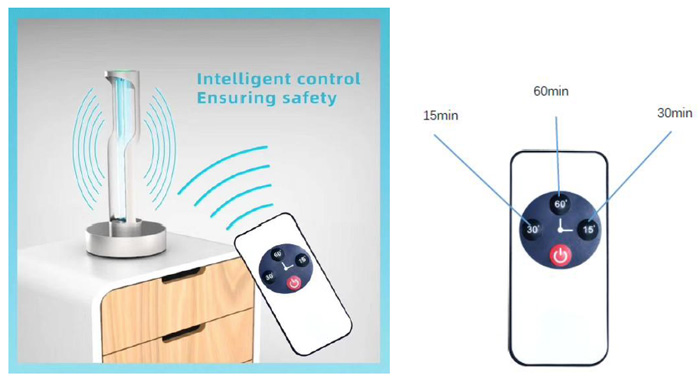

Remote Controller Function:

Turn on/off, 15min, 30min, 60min

7. Warnings:

  • There will be a sharp noise after the timing mode is turned on, and the disinfection light will be automatically light up after 15 seconds (the noise stops and the lamp light up).
  • People and pets must leave the UV radiation range in time to prevent ultraviolet rays harming.
  • Long time direct contact with ultraviolet rays burns people’s skin and eyes.
  • After non-ozone ultraviolet disinfection, ventilation is required for 20-30 minutes.

8. Package Details:

  • Inner Box: 1pc per Inner Box, 250x235x490mm
  • Master Carton: 4pcs per Carton, 520x490x510mm
  • N.W.: 2kgs/Inner Box
  • G.W.: 8.4kgs/Carton

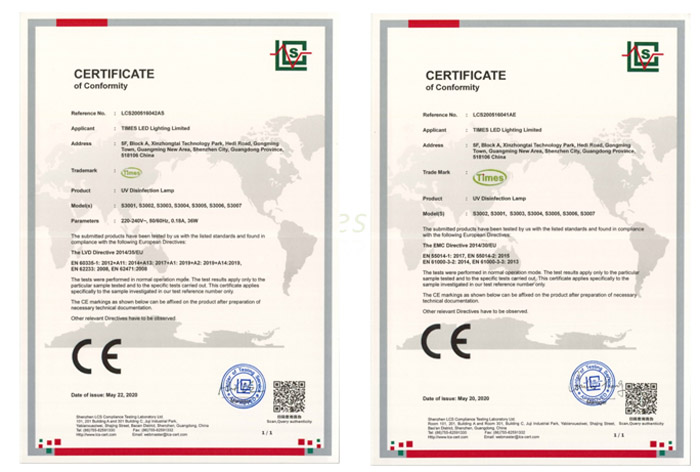

9. Certificates:

CE-EMC
CE-LVD

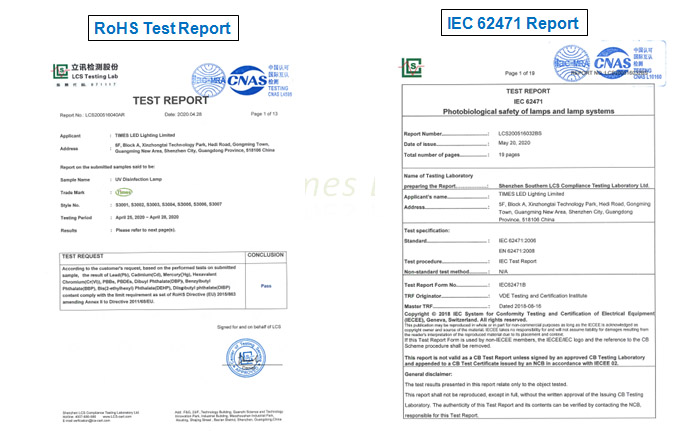

RoHS Report
IEC 62471 Report
